Clear Black VHB Foam Tape For Windows And Door
Product Details
Clear Black VHB Foam Tape for Windows and Door
Product Description
Clear Black VHB Foam Tape for Windows and Door
Clear black VHB foam tape for windows and doors is called VHB tape because it's very high binding.
Applications
Features
* Strong adhesion
* Good waterproof
* Good shock absorption performance
* Good durability designed for permanent bonding
* Clean surface without using of rivet
* Slf adhesive foam tape
* Fam adhesive tape
* Clear VHB tape
* Black VHB tape
* Heat resistant foam tape
Application
* Insulation
* Lithium battery extremely car fixed
* Transform coil wrapping and fixed
* Chip insetting.

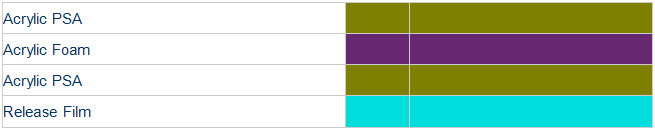

Construction
Physical Properties
Item | Unit | Value | Test Method |
Carrier | Acrylic Foam | ||
Adhesive | Acrylic | ||
Color | Clear | ||
Thickness | mm | 0.25±50μm | ASTM-1000 |
Tensile Strength | Gf/cm² | ≥7,500 | （T-Block） To Aluminum |
Peel Adhesion | GF/25mm | ≥3,500 | To Stainless Steel Room Temperature 180°Peel |
Holding Power | Hr | >24 | To Stainless Steel 80℃Temperature 1000g Static Load |
Dynamic Shear Strength To Stainless Steel Room Temperature after 20 minutes To Stainless Steel Room Temperature after 72 hours | Gf/cm² | ≥4,500 ≥6,000 | ASTM D-1002 |
Temperature Tolerance Short Term 4 hours conditioning at indicated temperature with 100g static load Long Term The maximum temperature where tape supports 250g in static shear for 10,000 minutes | ℃ | ≥160 ≥100 |
These values are measured values and not guaranteed values.
Shelf Life
Product shelf life is 2 years from the date of manufacture when stored at room temperature conditions(72°F[22°C]and 50%RH)in the product's original packaging.
Available Sizes
Width: Can be Customized
Length: Can be customized
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
