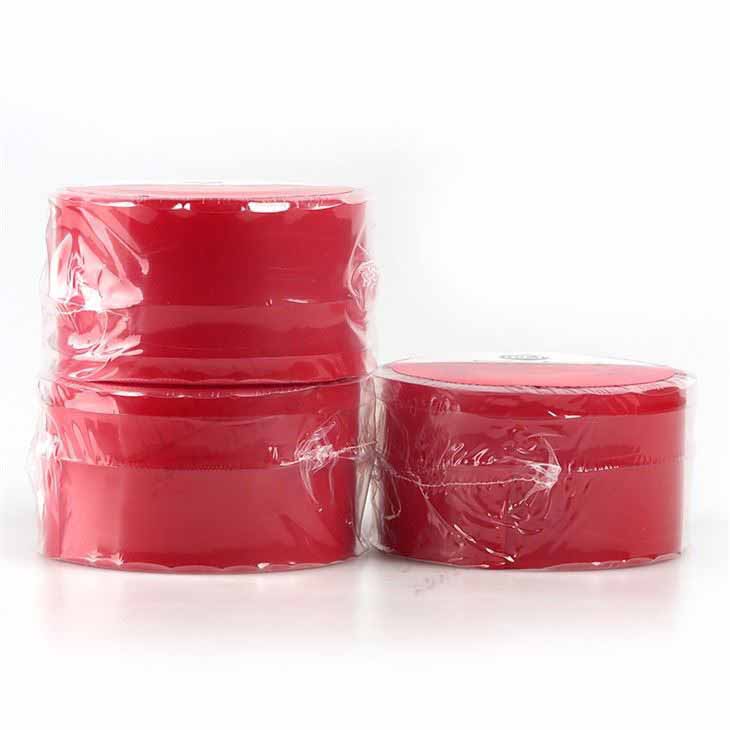

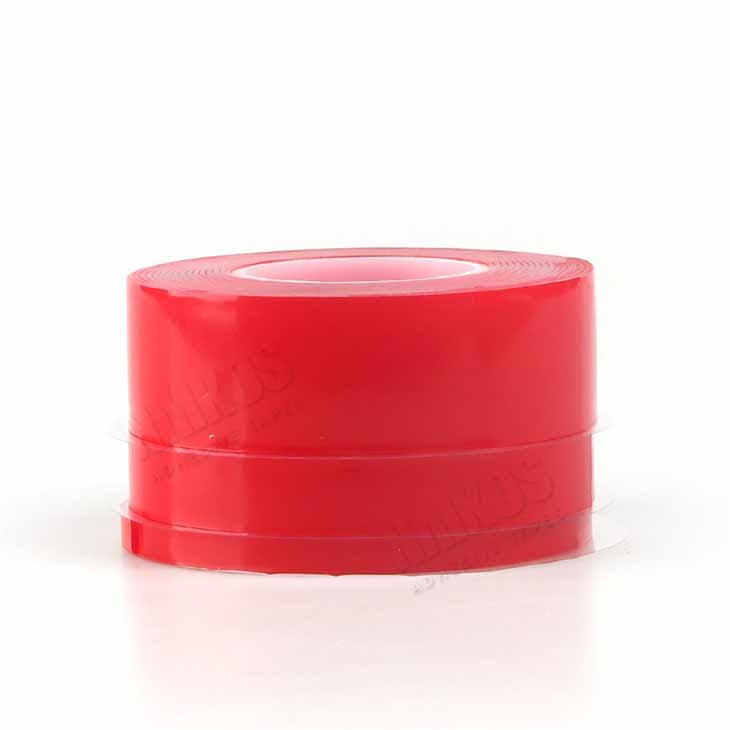

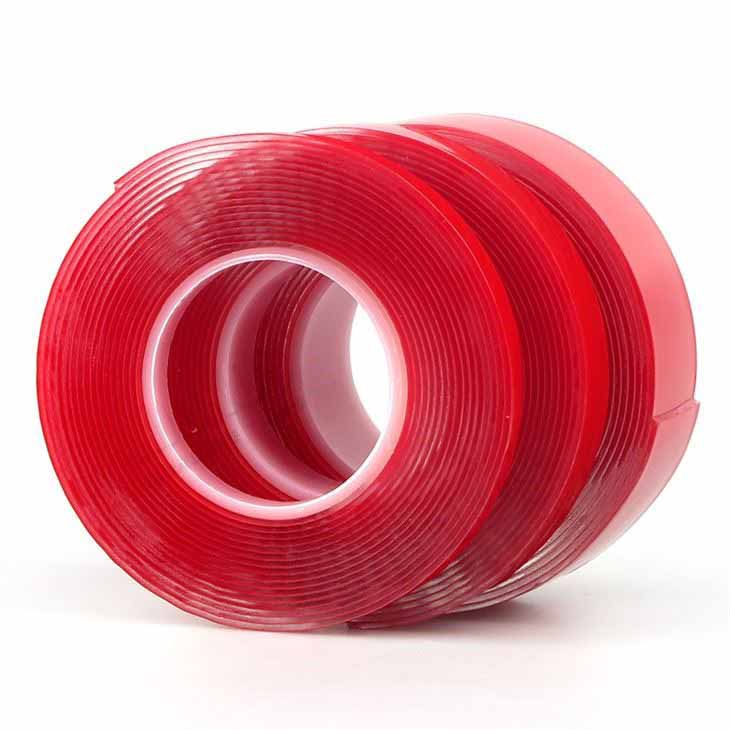

Double-Sided Clear Strong Foam Tape
* Good waterproof
* Good shock absorption performance
* Good durability designed for permanent bonding
* Clean surface without using of rivet
Product Details
Product Description
Double-sided clear strong foam tape is a conformable, very high bond acrylic foam tape. its own feature of high temperature/low-temperature resistance, super strong adhesion, excellent holding force, no tacking, and moisture resistance, Let it widely used in various electronics, digital industry, home, office shutters.
Features
* Strong adhesion
* Good waterproof
* Good shock absorption performance
* Good durability designed for permanent bonding
* Clean surface without using of rivet
Application
* Mount backlit translucent signs
* Edge-bond resin filled glass
* Metal, glass, and high surface energy (HSE) substrates
* Decorative material and trim
* Nameplates and logos
Construction
Acrylic PSA Acrylic Foam Acrylic PSA Release Film |  |
Physical Properties
Item | Unit | Value | Test Method |
Carrier | Acrylic Foam | ||
Adhesive | Acrylic | ||
Color | Clear | ||
Thickness | mm | 0.25±50μm | ASTM-1000 |
Tensile Strength | Gf/cm² | ≥7,500 | （T-Block） To Aluminum |
Peel Adhesion | GF/25mm | ≥3,500 | To Stainless Steel Room Temperature 180°Peel |
Holding Power
| Hr | >24 | To Stainless Steel 80℃ Temperature 1000g Static Load |
Dynamic Shear Strength To Stainless Steel Room Temperature after 20 minutes
To Stainless Steel Room Temperature after 72 hours | Gf/cm² |
≥4,500
≥6,000 |
ASTM D-1002 |
Temperature Tolerance Short Term 4 hours conditioning at indicated temperature with 100g static load Long Term The maximum temperature where tape supports 250g in static shear for 10, 000 minutes | ℃ |
≥160
≥100 |
Note: The above technical information and data should be considered representative or typical only and should not be used.
Shelf Life
Double-sided clear strong foam tape shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.
Available Sizes
Width: Maximum width 31.5 inches (800mm). (Can be Customized)
Length: Maximum Length 33m (Can be customized).
Custom Sizes: Please feel free to contact the NKS sales representative if you need customized sizes or die-cut parts.
