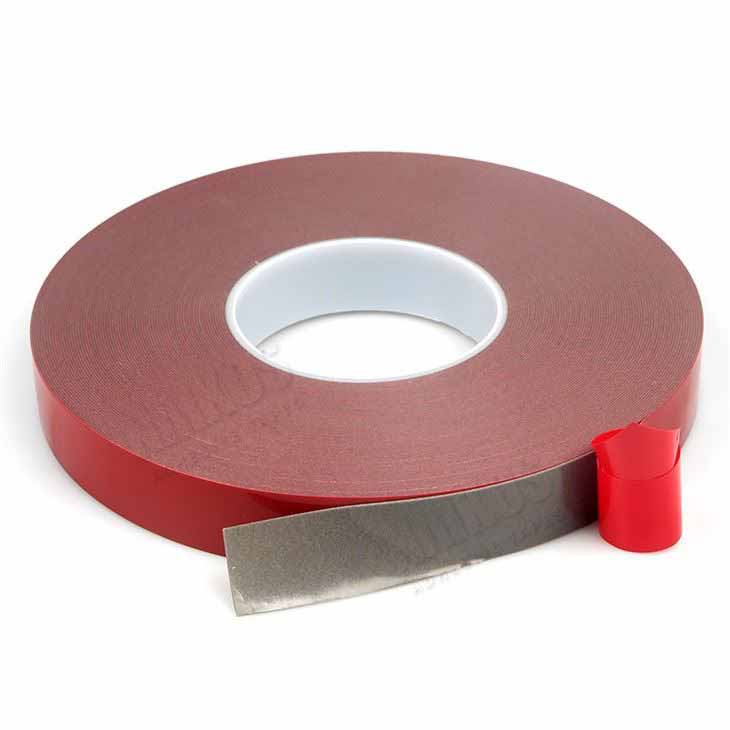

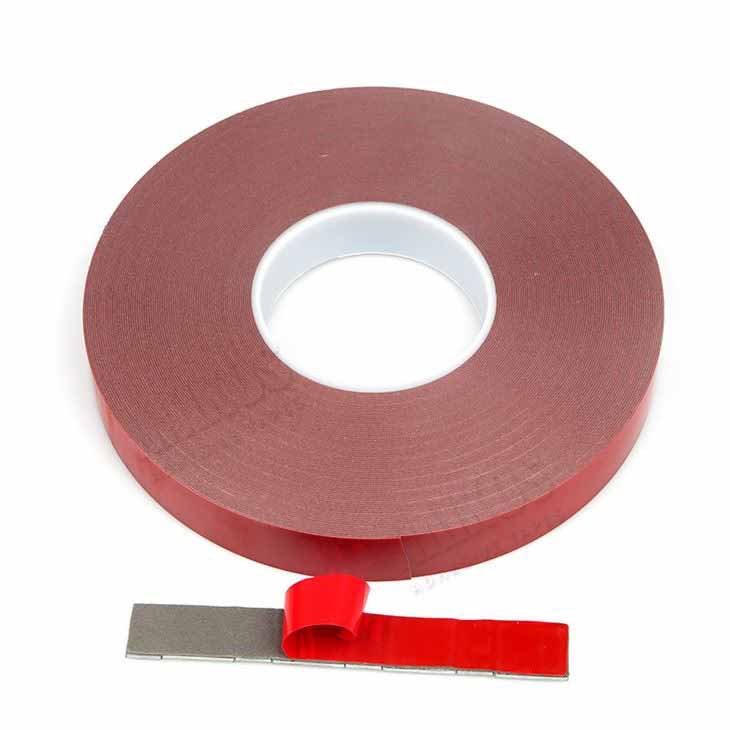

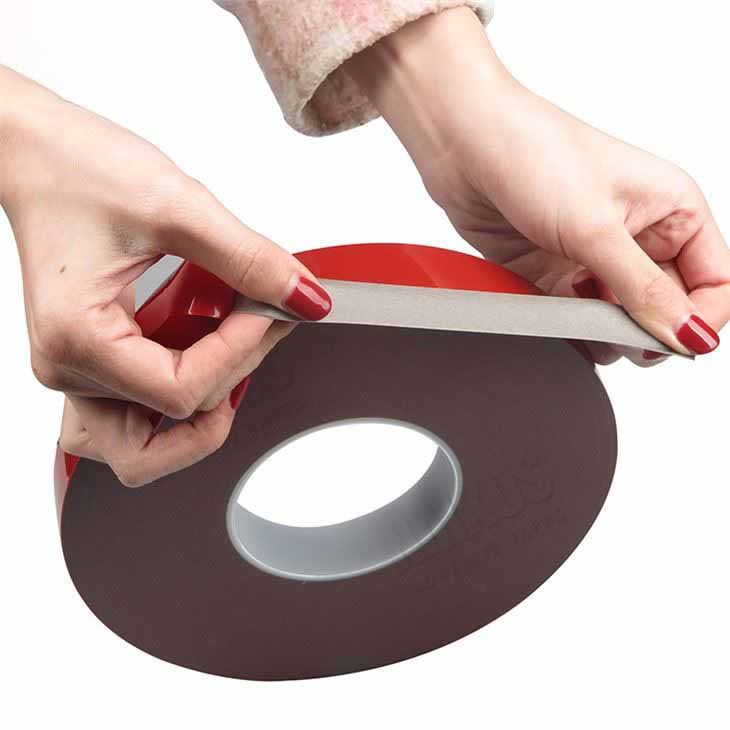

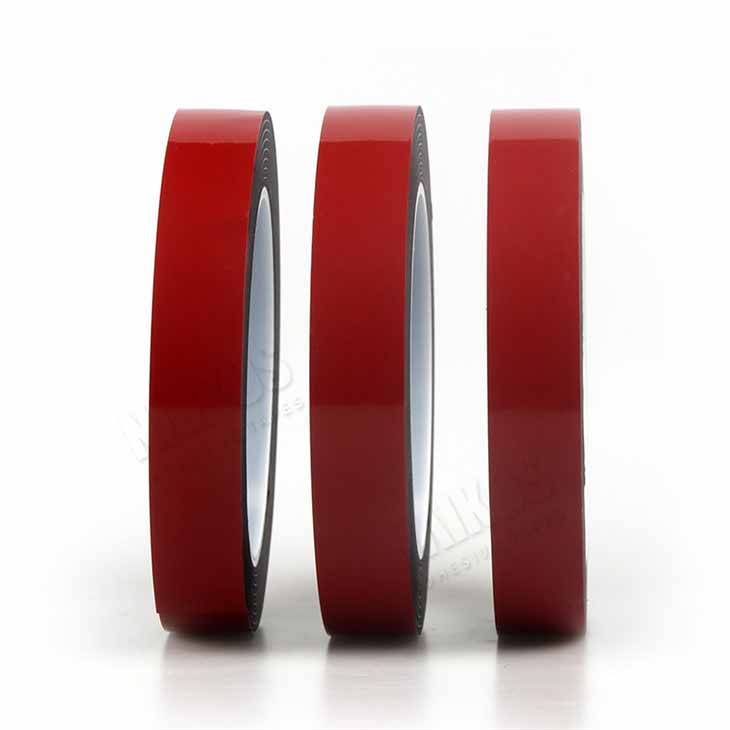

Black Heat Resistant Self Adhesive VHB Foam Tape

* Strong adhesion
* Good waterproof
* Good shock absorption performance
* Good durability designed for permanent bonding

Product Details

Product Description

Black heat-resistant self-adhesive VHB foam tape is called VHB tape because it's very high binding.

Black heat-resistant self-adhesive VHB foam tape that adheres to a broad range of substrates, including aluminum, stainless steel, galvanized steel, composites, plastics, acrylic, polycarbonate, ABS, and painted or sealed wood and concrete.

Features

* Strong adhesion

* Good waterproof

* Good shock absorption performance

* Good durability designed for permanent bonding

* Clean surface without using of rivet

Application

Black heat-resistant self-adhesive VHB foam tape is used in Insulation, lithium battery extremely car fixed, transform coil wrapping and fixed, chip insetting. as well as applications across a variety of markets including transportation, appliance, electronics, construction, sign and display, and general industrial.

Construction

VHB Tape Physical Properties

Item	Unit	Value	Test Method
Carrier		Acrylic Foam
Adhesive		Acrylic
Color		Clear
Thickness	mm	0.25±50μm	ASTM-1000
Tensile Strength	Gf/cm²	≥7,500	（T-Block） To Aluminum
Peel Adhesion	GF/25mm	≥3,500	To Stainless Steel Room Temperature 180°Peel
Holding Power	Hr	>24	To Stainless Steel 80℃ Temperature 1000g Static Load
Dynamic Shear Strength To Stainless Steel Room Temperature after 20 minutes To Stainless Steel Room Temperature after 72 hours	Gf/cm²	≥4,500 ≥6,000	ASTM D-1002
Temperature Tolerance Short Term 4 hours conditioning at indicated temperature with 100g static load Long Term The maximum temperature where tape supports 250g in static shear for 10, 000 minutes	℃	≥160 ≥100

These values are measured values and not guaranteed values.

Shelf Life

Product shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.

Available Sizes

Width: Maximum width 31.5 inches (800mm). (Can be Customized)

Length: Maximum Length 33m (Can be customized).

Custom Sizes: Please feel free to contact the NKS sales representative if you need customized sizes or die-cut parts.

Packaging & Shipping

Different shipping ways are available, small quantities order will be delivered to you by express and bulk goods will be delivered to you by sea, we will talk about the delivery method before we dispatch out the goods.
