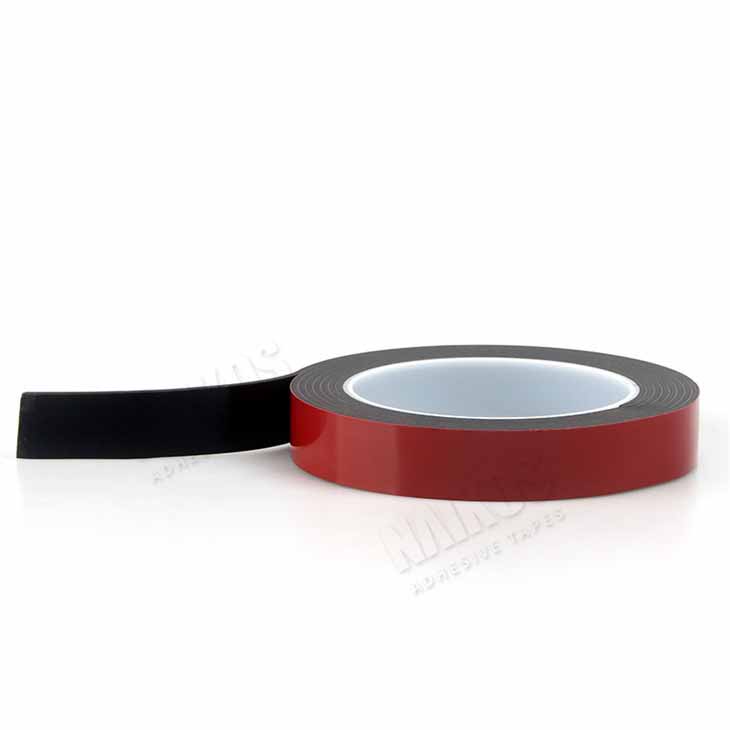

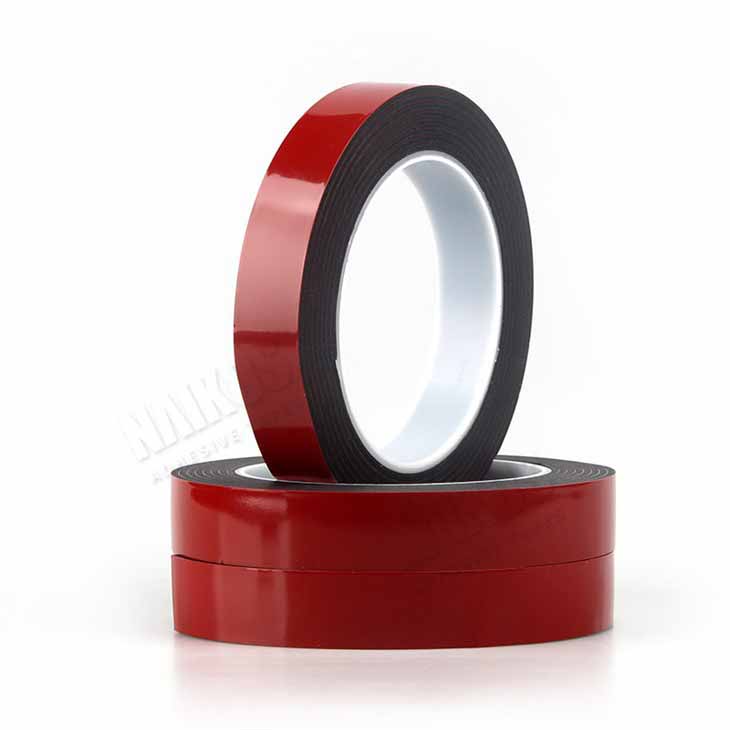

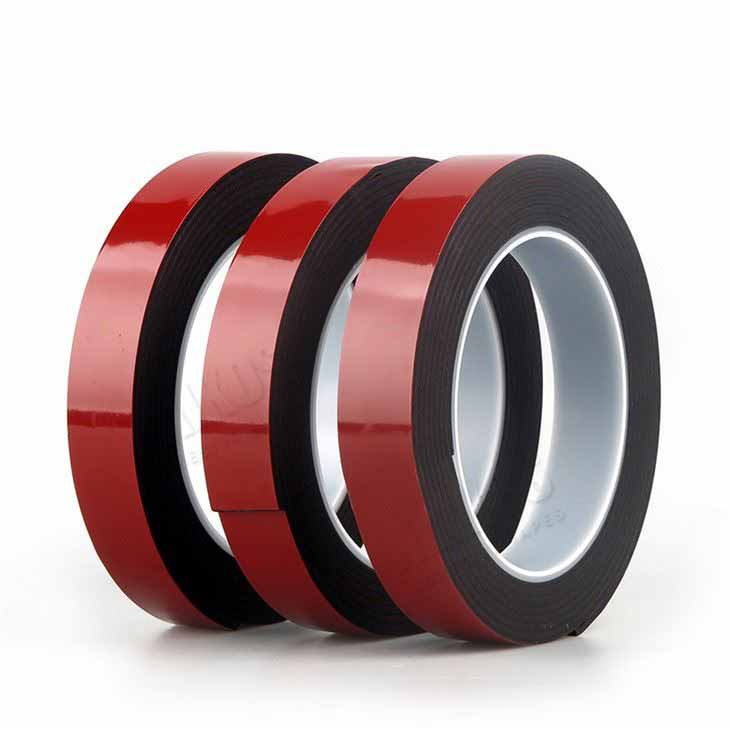

Double-Sided VHB Acrylic Foam Adhesive Tape
* Good flexibility
* Good adhesion
* Good resistance to temperature and solvent
* Comply with ROHS environmental standard
Product Details
Product Description
Double-sided VHB acrylic foam adhesive tape consisting of acrylic foam backing, double-sided made of pressure-sensitive adhesive on two sides of the VHB foam tape.
Double-sided VHB acrylic foam adhesive tape is designed for adhering to the irregular surface, fixing the nameplate, auto-mirror, and is often used in the automobile industry such as door sealing strips, pedals, and metal boards. Especially suitable for the fixation of inner structure in the glass combination like the glass curtain wall and soundproof wall etc; also used to stick the car decorations and for the combination orientation of sound source inside the voice box.
Features
1) Moderate thickness, good softness, suitable for different use space
2) Good flexibility, prevent components moving when shaken
3) Good holding power, good adhesion to the rough complex surface.
4) Good resistance to temperature and solvent; comply with ROHS environmental standard
5) Surface release material: white paper /another colored release film
6) Backing material/color: Black /White PE foam
7) Adhesive: light white solvent pressure-sensitive adhesive
Construction
Red PE Film Pressure Sensitive Adhesive Acrylic Foam Pressure Sensitive Adhesive |  |
PhysicalS Properties
Item | Unit | Value | Test Method |
Carrier | Acrylic Foam | ||
Adhesive | Acrylic | ||
Color | White | ||
Thickness | mm | 1.20±50μm | ASTM-1000 |
Tensile Strength | Gf/cm² | ≥7,000 | （T-Block）To Aluminum |
Peel Adhesion | GF/25mm | ≥4,000 | To Stainless Steel Room Temperature 180°Peel |
Holding Power
| Hr | >24 | To Stainless Steel 80℃ Temperature 1000g Static Load |
Dynamic Shear Strength To Stainless Steel Room Temperature after 20 minutes Room Temperature after 72 hours | Gf/cm² |
≥4,500 ≥6,000 |
ASTM D-1002 |
Temperature Tolerance Short Term Long Term maximum temperature | ℃ | ≥160 ≥100 |
These values are measured values and not guaranteed values.
