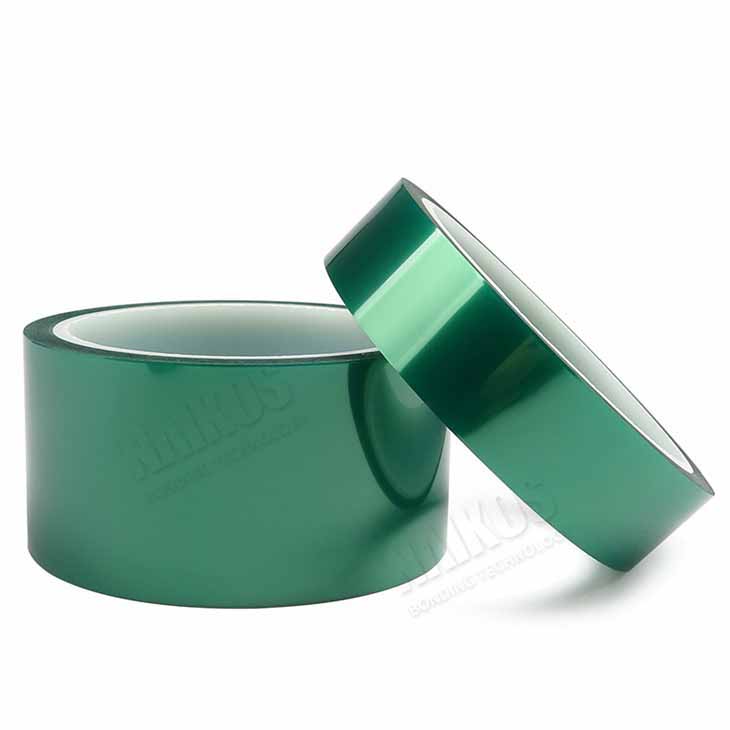

High-Temperature Polyester PET Silicone One-Sided Insulation Tape
* Insulation / Lithium battery extremely car fixed
* Transform coil wrapping and fixed
* Chip insetting.
* 3D printer
Product Details
Product Description

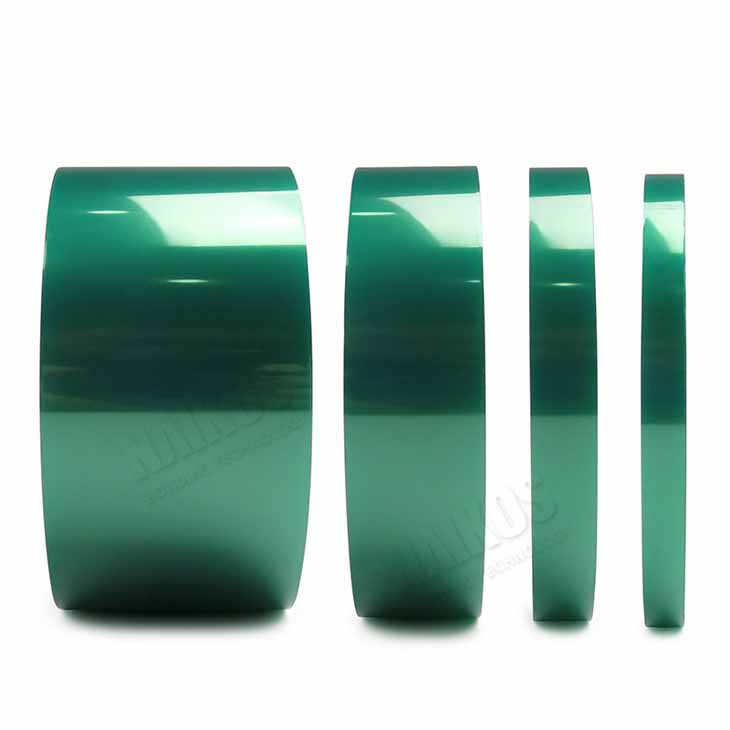

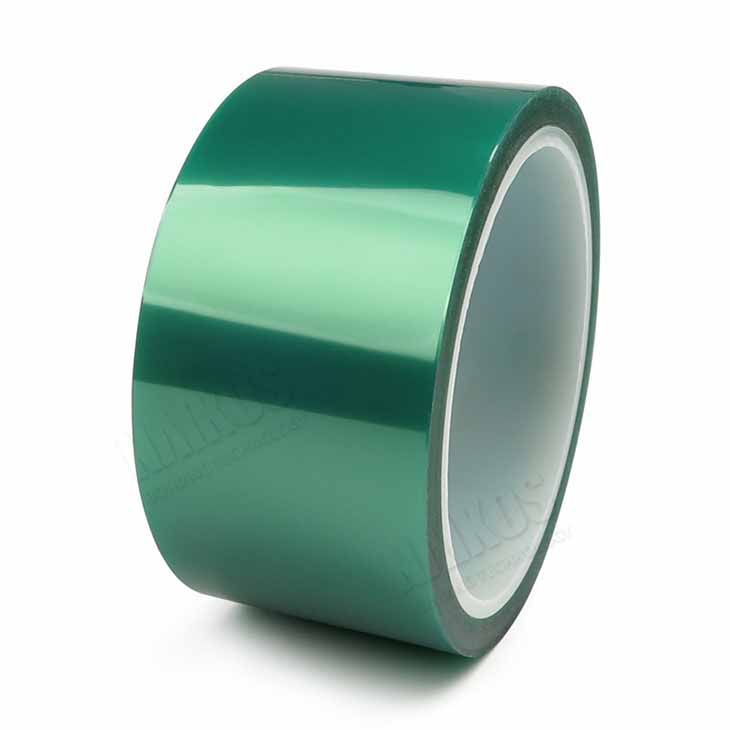

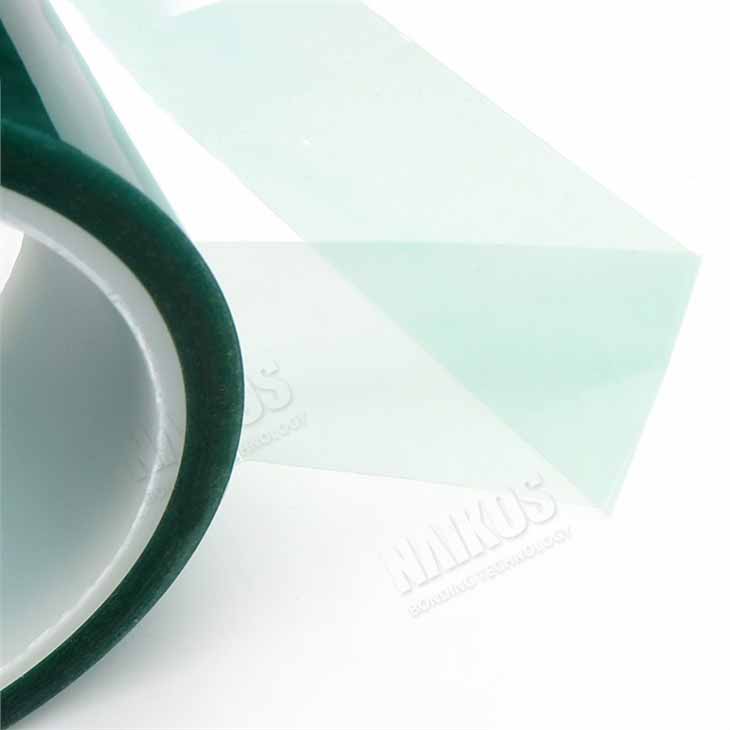

High-Temperature Polyester PET Silicone One-Sided Insulation Tape is coated with PET film as high-temperature silicone with no glue residue. The color is green. Good viscosity, good serviceability, high temperature, and excellent electrical properties.
High-Temperature Polyester PET Silicone One-Sided Insulation Tape used in 3d printing applications, High-temperature protection, Insulation / Lithium battery extremely car fixed, Chip insetting, Transform coil wrapping and fixed. it is the Best die-cut tape to mount various precision molded parts.
Construction
Physical Properties
Item | NKS-3565SIG | NKS-5080SIG | NKS-2560SIG | NKS-2590SIG |

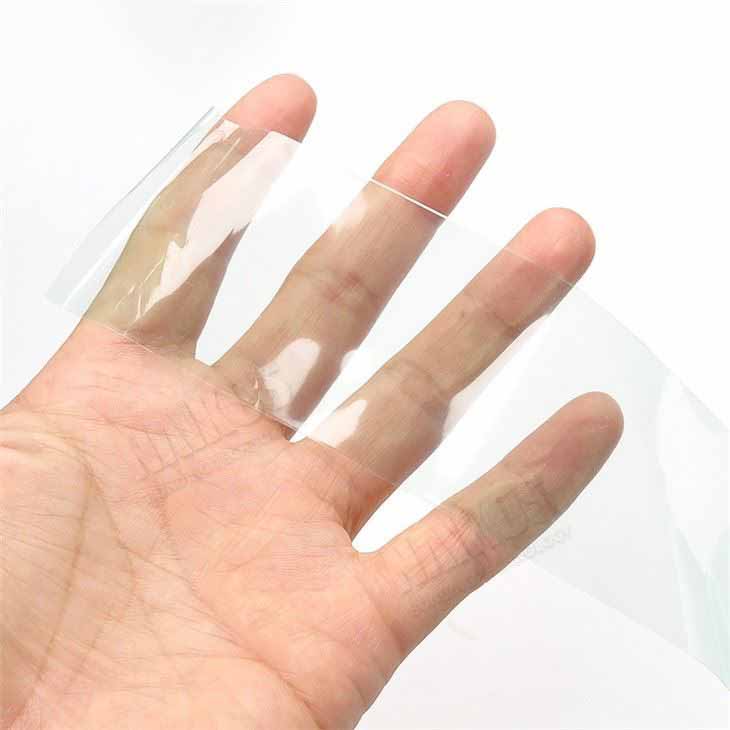

Color | Clear/Green/Blue | Clear/Green/Blue | Clear/Green/Blue | Red/Yellow |
Carrier | Polyester | Polyester | Polyester | Polyester |
Adhesive | Silicone | Silicone | Silicone | Silicone |
Carrier Thickness (mm) | 0.035 | 0.05 | 0.025 | 0.025 |
Adhesive Thickness (mm) | 0.025 | 0.03 | 0.035 | 0.065 |
Total Thickness (mm) | 0.06 | 0.08 | 0.060 | 0.09 |
Adhesion (N/25mm) | 6 | 6 | 6 | 8 |
Tensile Strength (N/25mm) | 135 | 220 | 115 | 135 |
Elongation at Break (%) | 40 | 50 | 35 | 35 |
Corrosion Resistance | 1 | 1 | 1 | 1 |
Storage Condition | 20℃,65RH | 20℃,65RH | 20℃,65RH | 20℃,65RH |
Long Term Heat Resistance (℃) | 180 | 180 | 180 | 180 |
Short Term Heat Resistance (℃) | 220 | 220 | 220 | 220 |
RoHS | Complied | |||
Width | 2~980mm | |||
Length | 33m/66m |
These values are measured values and not guaranteed values.
Production Process
Shelf Life
Product shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.
Available Sizes
Width: Maximum width 38.58 inches (980mm). (Can be Customized)
Length: 33m/66m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
Xiamen China Heat Resistant Tape New Material Co., Ltd was set up in the beautiful city of Xiamen. We produce many kinds of adhesive tapes including thermal tape, high-temperature tape, EMI shielding tape, etc. The adhesive tapes from China Heat Resistant Tape are widely approved by customers all over the world. Customers are warmly welcome to visit us and set up a long-term partnership based on a win-win conception.
Hot Tags: high-temperature polyester pet silicone one-sided insulation tape suppliers China, manufacturers, factory, price, made in China,
Inquiry
You Might Also Like
-

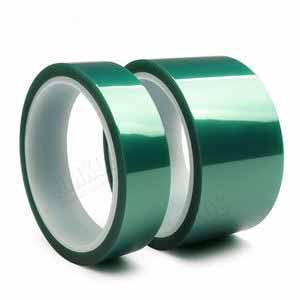

Heat Resistant With Silicone Polyester Adhesive Film...
-

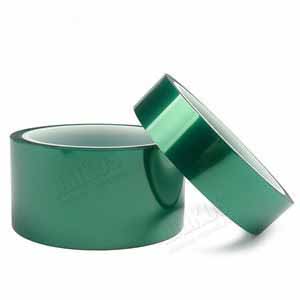

Green Polyester Masking PET Heat Proof Adhesive Tape
-

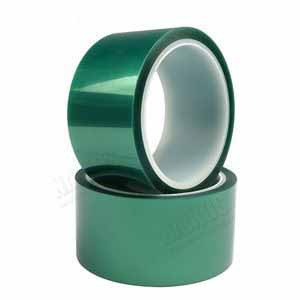

Polyester High Temp Tape For Powder Coating Masking
-

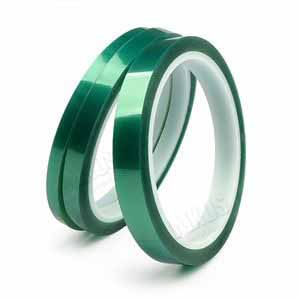

Green High-Temperature Polyester Silicone Adhesive Tape
-
High-Temperature Green PET Film Based Silicone Polye...
-

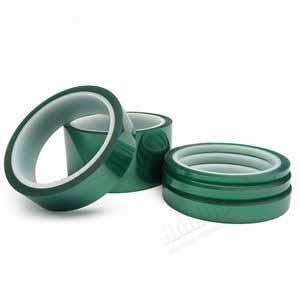

Green PET Polyester Protective Tape For Powder Coati...
