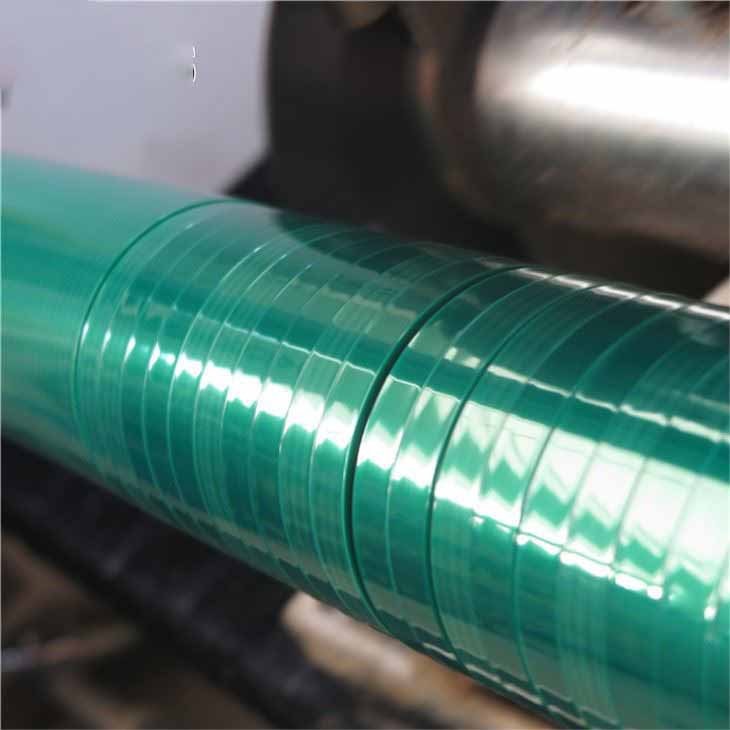

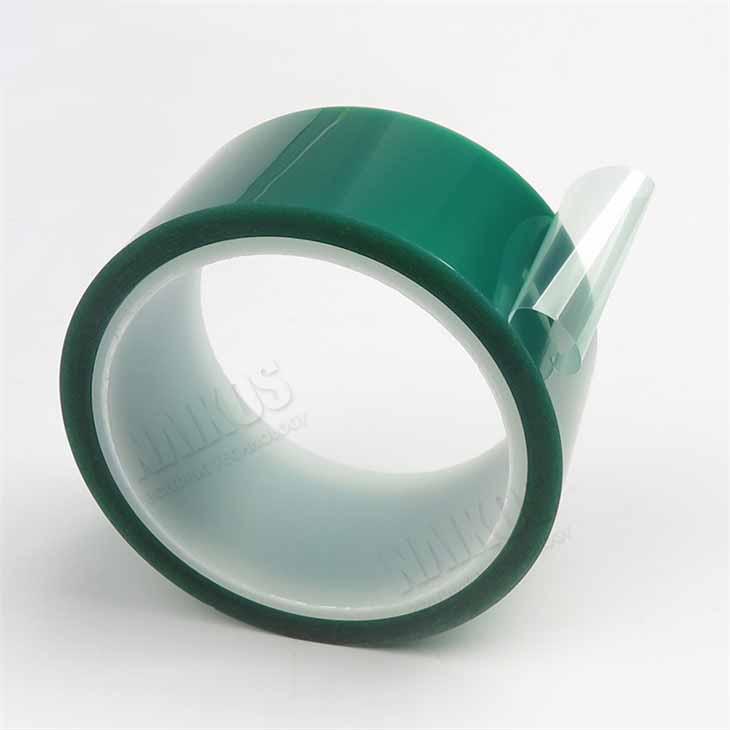

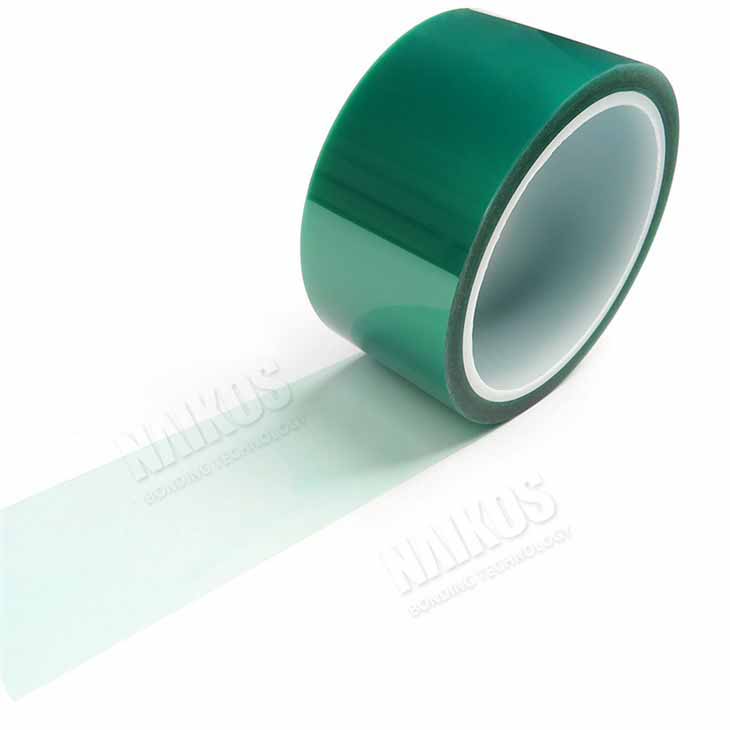

Polyester High Temp Tape For Powder Coating Masking

* Powder coating protection
* Paint spray protection
* Ordinary surface protection
* 3D printing

Product Details

Product Description

Polyester high temp tape for powder coating masking is used for PCB masking and other high-temperature The color is green. Good viscosity, good serviceability, high temperature, excellent electrical properties.

Polyester high temp tape for powder coating masking It has the characteristics of Insulation, Strong tensile strength. Multi colors for choice, Suitable for transformer, capacitor, and other electronic components, ordinary surface powder coating paint spray protection,3D printing.

Features

* Multi colors for choice

* Insulation

* Suitable for transformer, capacitor, and other electronic components.

* Strong tensile strength

* High temp tape for powder coating

Construction

Polyester Film

Silicone Adhesive

Physical Properties

Item	NKS-3565SIG	NKS-5080SIG	NKS-2560SIG	NKS-2590SIG
Color	Clear/Green/Blue	Clear/Green/Blue	Clear/Green/Blue	Red/Yellow
Carrier	Polyester	Polyester	Polyester	Polyester
Adhesive	Silicone	Silicone	Silicone	Silicone
Carrier Thickness (mm)	0.035	0.05	0.025	0.025
Adhesive Thickness (mm)	0.025	0.03	0.035	0.065
Total Thickness (mm)	0.06	0.08	0.060	0.09
Adhesion (N/25mm)	6	6	6	8
Tensile Strength (N/25mm)	135	220	115	135
Elongation at Break (%)	40	50	35	35
Corrosion Resistance	1	1	1	1
Storage Condition	20℃,65RH	20℃,65RH	20℃,65RH	20℃,65RH
Long Term Heat Resistance (℃)	180	180	180	180
Short Term Heat Resistance (℃)	220	220	220	220
RoHS	Complied
Width	2~980mm
Length	33m/66m

These values are measured values and not guaranteed values.

Shelf Life

Product shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.

Available Sizes

Width: Maximum width 38.58 inches (980mm). (Can be Customized)

Length: 33m/66m (Can be customized).

Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.

Packing

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

If you find our High temp tape for powder coating, green polyester tape interested, please fill the below blank space for your detailed requirements. China Heat Resistant Tape’s team would offer different solutions to you within 12 hours. Free samples are also available.
