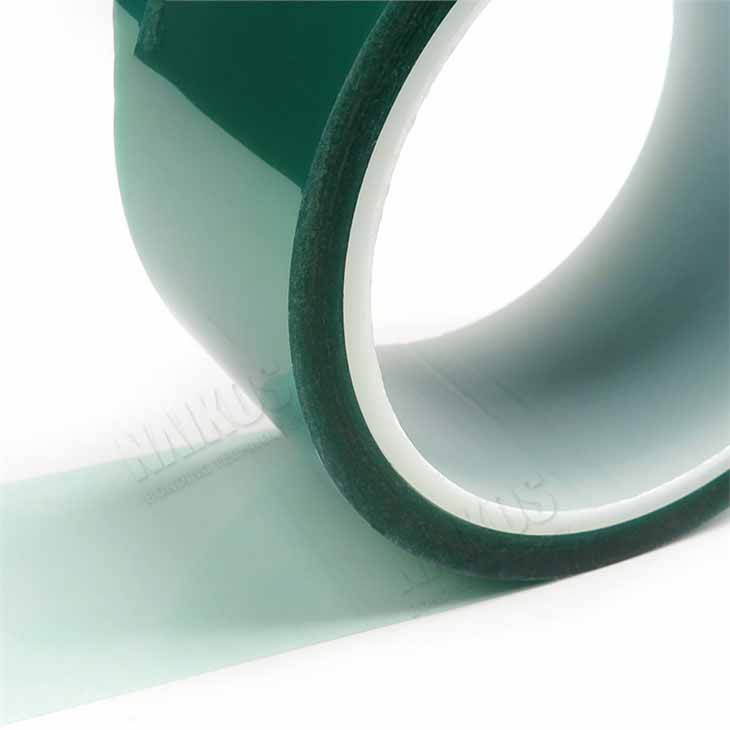

High-Temperature Green PET Film Based Silicone Polyester Tape

* High-temperature resistance
* Strong adhesion
* Flexible and conformable
* Peeled off without leaving an adhesive residue

Download

Product Details

Product Description

High-temperature green PET film-based silicone polyester tape consisting of a polyester film backing, single side coated with silicone adhesive. Designed to perform difficult masking operations such as masking of surfaces during application of durable 'powder coatings’.High-temperature painting, Galvanization.

High-temperature green PET film-based silicone polyester tape of a polyester film backing has high-temperature resistance, strong adhesion, flexible and conformable, peeled off without leaving adhesive residue features.

Application

* Powder coating masking

* High-temperature painting

* Galvanization

Polyester film tape.png

Physical Properties

Item	NKS-3565SIG	NKS-5080SIG	NKS-2560SIG	NKS-2590SIG
Color	Clear/Green/Blue	Clear/Green/Blue	Clear/Green/Blue	Red/Yellow
Carrier	Polyester	Polyester	Polyester	Polyester
Adhesive	Silicone	Silicone	Silicone	Silicone
Carrier Thickness(mm)	0.035	0.05	0.025	0.025
Adhesive Thickness (mm)	0.025	0.03	0.035	0.065
Total Thickness(mm)	0.06	0.08	0.060	0.09
Adhesion(N/25mm)	6	6	6	8
Tensile Strength (N/25mm)	135	220	115	135
Elongation at Break(%)	40	50	35	35
Corrosion Resistance	1	1	1	1
Storage Condition	20℃,65RH	20℃,65RH	20℃,65RH	20℃,65RH
Long Term Heat Resistance(℃)	180	180	180	180
Short Term Heat Resistance(℃)	220	220	220	220
RoHS	Complied
Width	2~980mm
Length	33m/66m

These values are measured values and not guaranteed values.
