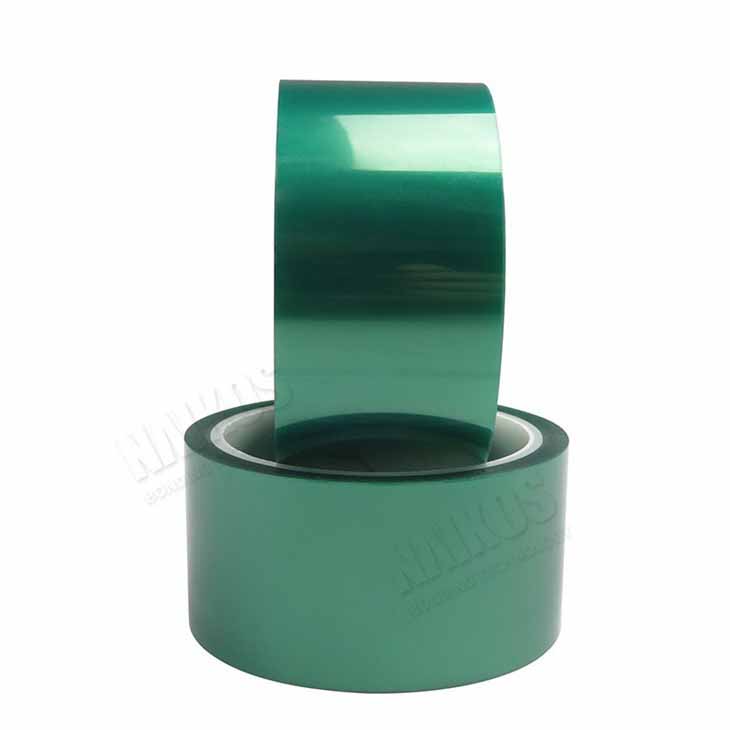

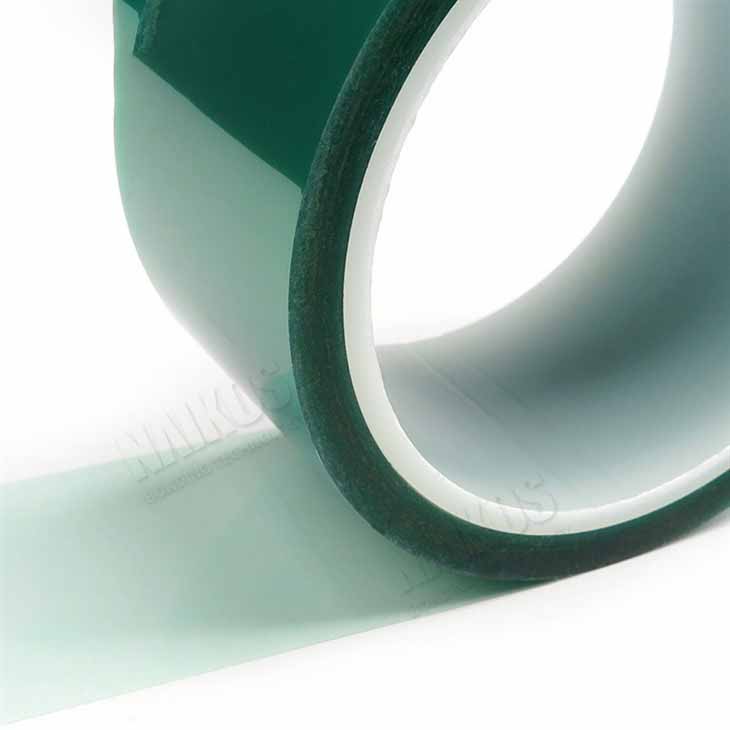

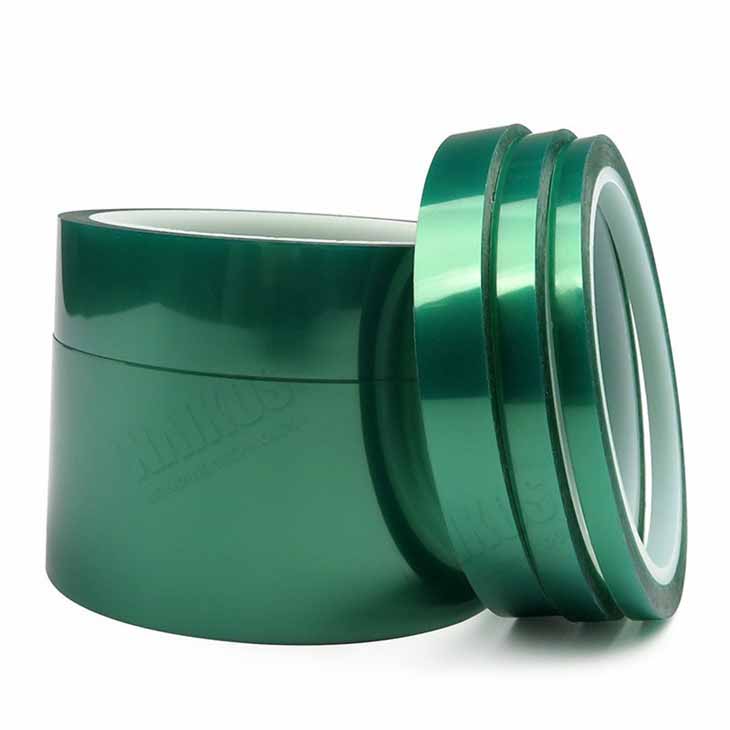

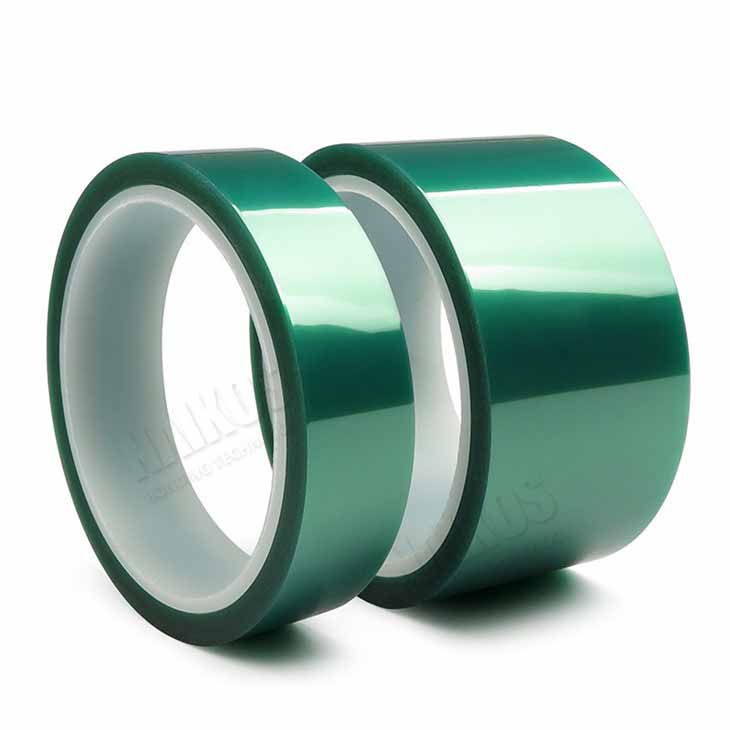

High Temperature Green PET Polyester Adhesive Tape
* Strong adhesion
* Flexible and conformable
* Peeled off without leaving an adhesive residue
Product Details
Products Description
High temperature green PET polyester adhesive tape is a specially engineered tape designed for high-temperature applications. The tape is constructed from a high-quality polyester film that can withstand heat up to 200℃ without degrading. The tape is also coated with a specially formulated silicon adhesive that provides excellent adhesion to a variety of surfaces, including metal, glass, and plastics. Green polyester tape is a versatile tape commonly used in various industries.
Feature
1. High-Temperature Resistance: The high temperature green PET tape can withstand heat up to 200℃ , making it perfect for high-temperature applications.
2. Excellent Adhesion: The tape is coated with a specially formulated silicon adhesive that provides excellent adhesion to a variety of surfaces, including metal, glass, and plastics.
3. Color Coding: The tape is available in a green color that is perfect for color-coding in different applications.
4. Easy to Use: High temperature PET polyester tape is easy to use, and it can be easily cut to the required size and applied to the surface.
5. Durable: The tape is made from high-quality materials that make it resistant to abrasion, chemicals, and weathering.
Product Construction
Physical Properties
Item | NKS-1512PTS | NKS-1517PTS | NKS-0230PTS | NKS-0250PTS |
Carrier | Polyester | Polyester | Polyester | Polyester |
Adhesive | Silicone | Silicone | Silicone | Silicone |
Carrier Thickness(mm) | 0.035 | 0.035 | 0.05 | 0.055 |
Adhesive Thickness(mm) | 0.015 | 0.025 | 0.03 | 0.045 |
Total Thickness(mm) | 0.05 | 0.06 | 0.08 | 0.1 |
Tensile Strength (N/25mm) | 135 | 115 | 220 | 135 |
Adhesion(N/25mm) | 6 | 6 | 6 | 8 |
Elongation at Break(%) | 40 | 35 | 50 | 35 |
Corrosion Resistance | 1.0 | 1.0 | 1.0 | 1.0 |
Storage Condition | 20℃, 65RH | 20℃, 65RH | 20℃, 65RH | 20℃, 65RH |
Long Term Heat Resistance (℃) | 180 | 180 | 180 | 180 |
Short Term Heat Resistance (℃) | 220 | 220 | 220 | 220 |
Color | Clear / Green/ Blue | |||
Width(mm) | 2-980 (Custom Slit Available) | |||
Length(m) | 33 / 66 |
Application
High temperature green PET polyester adhesive tape used for plating and soldering PCB boards, Prevent plating solution from penetrating into electronic parts, Prevent contamination of passive parts such as plating bath droplets and steam, and shield terminal parts when soldering the circuit surface; Ensure soldering when electronic parts are packaged on the board Solder resistance, solvent resistance and sealing properties in the process. Even under the harsh conditions of welding, grinding, drying, and electroplating, it can be precisely bonded to the board. After use, it can be peeled off almost without residue.
China Heat Resistant Tape Industrial is one of the excellent manufacturers and suppliers of high temperature green pet polyester adhesive tape in China, which is equipped with a professional factory and advanced equipment. We aims at providing you with high quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at competitive price.
Product Construction
Physical Properties
Item | NKS-1512PTS | NKS-1517PTS | NKS-0230PTS | NKS-0250PTS |
Carrier | Polyester | Polyester | Polyester | Polyester |
Adhesive | Silicone | Silicone | Silicone | Silicone |
Carrier Thickness(mm) | 0.035 | 0.035 | 0.05 | 0.055 |
Adhesive Thickness(mm) | 0.015 | 0.025 | 0.03 | 0.045 |
Total Thickness(mm) | 0.05 | 0.06 | 0.08 | 0.1 |
Tensile Strength (N/25mm) | 135 | 115 | 220 | 135 |
Adhesion(N/25mm) | 6 | 6 | 6 | 8 |
Elongation at Break(%) | 40 | 35 | 50 | 35 |
Corrosion Resistance | 1.0 | 1.0 | 1.0 | 1.0 |
Storage Condition | 20℃, 65RH | 20℃, 65RH | 20℃, 65RH | 20℃, 65RH |
Long Term Heat Resistance (℃) | 180 | 180 | 180 | 180 |
Short Term Heat Resistance (℃) | 220 | 220 | 220 | 220 |
Color | Clear / Green/ Blue | |||
Width(mm) | 2-980 (Custom Slit Available) | |||
Length(m) | 33 / 66 |
Hot Tags: high temperature green pet polyester adhesive tape suppliers China, manufacturers, factory, price, made in China,
Inquiry
You Might Also Like
-

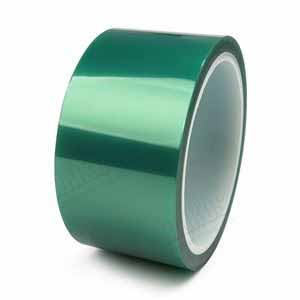

High-Temperature Polyester PET Silicone One-Sided In...
-
High Quality Silicone Adhesive Green Polyester Tape
-
Green High-Temperature Polyester Silicone Adhesive Tape
-
High-Temperature Green PET Film Based Silicone Polye...
-
Green PET Polyester Protective Tape For Powder Coati...
-

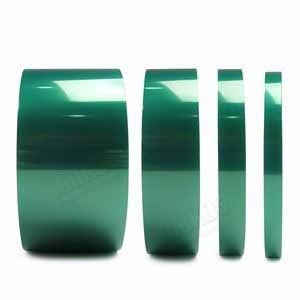

Green Blue Polyester Masking Tape
