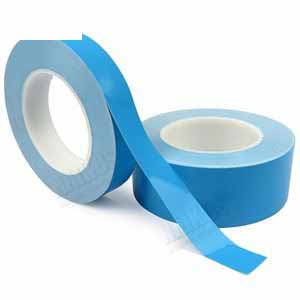

Thermal Insulation Tape High Temperature
* Flexibility and conformability
* Good adhesion and thermal conductivity
* Various thicknesses for choice
Product Details
Product Description
Thermal insulation tape at high temperature is made of an advanced thermal conductive pressure-sensitive adhesive. Thermal conductive tape with features of high thermal conductivity and insulation, and has flexibility, compressibility, docility, strong adhesion. Thermal insulation tape adapts to the temperature range, can fill the uneven surface, can be closely and firmly fit the heat source devices and heat sink, the heat quickly transmitted.
Features
* Good thermal conductivity and electrical insulation
* Flexibility, conformability, and excellent adhesion strength
* Wide working temperature range
* Excellent shock performance
* Various sizes available
* Stable properties and low cost
Construction
Physical Properties
| Item No. | Thickness (mm) | 180°Peel Strength (PSTC-101 )(N/25mm) | Insulation Strength (ASTM D149) (KV) | Thermal Impedance @40PSI (AMD2240) (C*in2/W) | Thermal Conductivity (ASTM D22470) (W/m-k) | Temperature Range |
| NKS-10 | 0.10±10% | ＞13.72 | 2.22 | 0.626 | 1.20 | -20℃～+120℃ |
| NKS-15 | 0.15±10% | ＞13.72 | 2.55 | 0.715 | 1.20 | -20℃～+120℃ |
| NKS-20 | 0.20±10% | ＞13.72 | 4.29 | 1.125 | 1.20 | -20℃～+120℃ |
| NKS-25 | 0.25±10% | ＞13.72 | 5.0 | 1.196 | 1.20 | -20℃～+120℃ |
| NKS-30 | 0.30±10% | ＞13.72 | 5.0 | 1.445 | 1.20 | -20℃～+120℃ |
| NKS-50 | 0.50±10% | ＞13.72 | 5.0 | 2.098 | 1.20 | -20℃～+120℃ |
Note: These values are measured values and not guaranteed values.
Applications
Thermal insulation tape high temperature is suitable to apply to electronic mechanical components assembly such as the heatsink module and LED light bar module. In addition to providing excellent thermal conductivity, this thermal tape will provide electrical insulation between the bonded substrates.
Available Sizes
Width: Maximum width 41.3 inches (1030mm). (Can be Customized)
Length: 25m/50m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
Low MOQ
* Factory sale directly with much competitive price.
* Good Quality Control. There are 3 times quality checking before delivery.
* Free samples are available. Even customized die-cut parts are also available. We guarantee that the samples and mass production tapes would be satisfied.
* All of the customers’ samples/orders would be recorded and maintained in secrecy. Customers can re-order with convenience and satisfaction.
