Best Double Sided Thermal Adhesive Tape For GPU
* Flexible and conformable
* Easy to use
* Safe Good Heat Dissipation
Product Details
Product Description
Best double-sided thermal adhesive tape for GPU plays an important role in both heat conduction and stickiness for important parts of electronics, especially in electronics, LED lighting industry, and LED TV field. Thermal adhesive tape is simple and convenient to use, which is conducive to improving production efficiency. Its heat dissipation effect is more obvious than that of ordinary heat dissipation stickers, which greatly improves the service life of components. Double-sided thermal tape is the first choice for some high-end electronic products that need heat conduction.
Feature
* Thermal tape for GPU provides efficient and equal heat dissipation with high electric insulation to prevent short circuits.
* Best thermal tape can be die-cut to any shape, you only need to cut the size according to your needs, then peel off the blue backing, and quickly and stably stick to the surface.

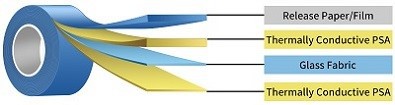

Product Construction
Specification
| Item | NKS-## | NKS-##N | Test Method |
| Carrier | Glass Fabric | N/A | --- |
|
Adhesive |
Thermally Conductive PSA | Thermally Conductive PSA | --- |
|
Total thickness (mm) |
0.10~0.50 | 0.05~0.40 | ASTM D374 |
|
Color |
White | White | VISUAL |
|
Release Liner |
Blue PE Film | White Release Paper | VISUAL |
|
Adhesion (N/25mm) |
12~18 | 12~18 | PST-101 |
|
Thermal Conductivity(W/m-k) |
1.2 | 1.2 | ASTM D22470 |
|
Voltage Resistance(KV/mm) |
3.5~8.0 | 3.5~8.0 | ASTM D149 |
|
Temperature Resistance(Short Term,℃/℉) |
120(℃) 248(℉) |
120(℃) 248(℉) |
EN344 |
|
Temperature Resistance(Long Term,℃/℉) |
80(℃) 176(℉) |
80(℃) 176(℉) |
EN344 |
| Standard width (mm) | 2~1030(Customized Available) | ||
| Standard length (m) | 25/50(Customized Available) | ||
Notice: The above were reference values. For detailed information, please contact China Heat Resistant Tape.
Application
Best double-sided thermal adhesive tape for GPU can be tightly and firmly installed on heat source equipment and radiators. It is widely used to connect radiators, to the CPU, high-power LEDs, video card RAM, DDR memory modules, SSD drives, etc.
The above data are obtained by the average value of the data obtained by our company after several tests according to the recognized detection methods. If customers have special requirements, please contact our company, we will provide you with further services.
How About Packaging?
1). Can be printed customer's logo on the paper core and cartons.
2). Normal packaging, special packaging as your request, such as individual shrink with logo card, barcode label.
3). OEM, Your company logo will be valid.

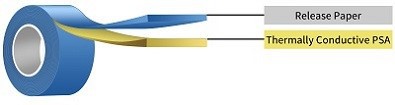

Product Construction
Specification
| Item | NKS-## | NKS-##N | Test Method |
| Carrier | Glass Fabric | N/A | --- |
|
Adhesive |
Thermally Conductive PSA | Thermally Conductive PSA | --- |
|
Total thickness (mm) |
0.10~0.50 | 0.05~0.40 | ASTM D374 |
|
Color |
White | White | VISUAL |
|
Release Liner |
Blue PE Film | White Release Paper | VISUAL |
|
Adhesion (N/25mm) |
12~18 | 12~18 | PST-101 |
|
Thermal Conductivity(W/m-k) |
1.2 | 1.2 | ASTM D22470 |
|
Voltage Resistance(KV/mm) |
3.5~8.0 | 3.5~8.0 | ASTM D149 |
|
Temperature Resistance(Short Term,℃/℉) |
120(℃) 248(℉) |
120(℃) 248(℉) |
EN344 |
|
Temperature Resistance(Long Term,℃/℉) |
80(℃) 176(℉) |
80(℃) 176(℉) |
EN344 |
| Standard width (mm) | 2~1030(Customized Available) | ||
| Standard length (m) | 25/50(Customized Available) | ||
