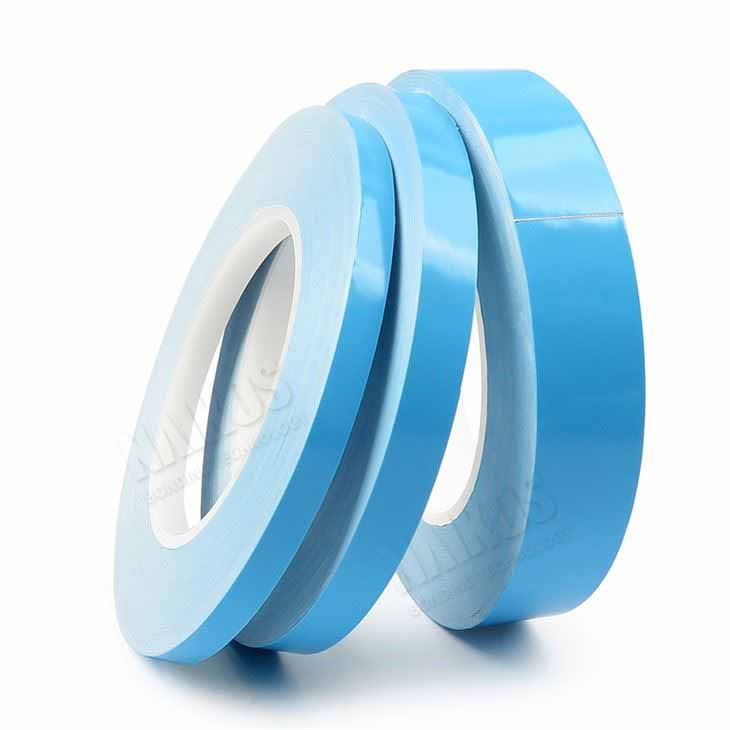

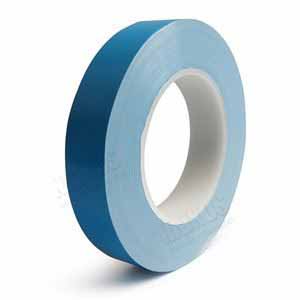

Double-sided thermal conductive adhesive tape is made of advanced thermal conductive PSA. It satisfies the demand for high adhesion and excellent thermal conductive efficiency, providing a preferential heat-transfer path between heat-generating components, LED, Heat sink, PC, IC, CPU, MOS, or other cooling devices.
Feature
high conductivity and adhesion.
flexible and conformable.
Ideal for uneven surfaces.
providing a secure and long-lasting bond.
can be cut into any shape of the product.
can be pre-affixed to a surface for future use.
Description
The China Heat Resistant Tape Double-sided thermal conductive tape has the characteristics of high thermal conductivity and insulation, as well as softness, compressibility, compliance, and strong viscosity. Suitable for a wide range of temperatures. This Thermal heat tape can be filled with uneven surfaces, and it can be tightly and firmly attached to the heat source device so that the heat can be quickly transmitted out.
How To Use
The Thermal conductive is stuck on the surface of any object and tears the blue release paper, which can be tightly and firmly conglutinate on the heat source devices and heat sink to speed the heat dissipation. Just need to press it slightly, thermal transfer tape sticks incredibly well and works right away, no longer a need to fix the electronic devices and radiators with an instrument or liquid adhesive. with no curing time.
Replaceable
China Heat Resistant Tape thermal conductive tape can replace 3M thermal conductive tape 8815. It not only has the same perfect effect as it but also has higher cost performance. With this tape , you don't worry about screwing up the project.
Customization Available
China Heat Resistant Tape is a manufacturer of thermal conductive tape, Global sales and wholesale. Customization is an advantage. die-cutting or cutting into any shape (such as Rectangular, punching, and coil materials) can all meet your needs.
Product Construction
Specification
| Item | NKS-## | NKS-##N | Test Method |
| Carrier | Glass Fabric | N/A | --- |
|
Adhesive |
Thermally Conductive PSA | Thermally Conductive PSA | --- |
|
Total thickness (mm) |
0.10~0.50 | 0.05~0.40 | ASTM D374 |
|
Color |
White | White | VISUAL |
|
Release Liner |
Blue PE Film | White Release Paper | VISUAL |
|
Adhesion (N/25mm) |
12~18 | 12~18 | PST-101 |
|
Thermal Conductivity(W/m-k) |
1.2 | 1.2 | ASTM D22470 |
|
Voltage Resistance(KV/mm) |
3.5~8.0 | 3.5~8.0 | ASTM D149 |
|
Temperature Resistance(Short Term,℃/℉) |
120(℃) 248(℉) |
120(℃) 248(℉) |
EN344 |
|
Temperature Resistance(Long Term,℃/℉) |
80(℃) 176(℉) |
80(℃) 176(℉) |
EN344 |
| Standard width (mm) | 2~1030(Customized Available) | ||
| Standard length (m) | 25/50(Customized Available) | ||
Note: The above data is the general value of product testing, it is only for reference and does not represent the actual value of this product.
Contact us for other options, questions or to inquire about our Cut-To-Size Services: Email inquiry-tape@winnewtech.com or Whatsapp 8615080327070 with dimensions and quantity for pricing.
Application
The China Heat Resistant Tape thermal conductive tape can be easily applied to Heat Sink,, Electric Vehicles, 5G, Autopilot System, Mobile Phone, AIOT, HPC (High Performance Computing),Server, IC, CPU, MOS, LED, Mother Board,Power Supply,LCD-TV,Notebook,PC,Telecom Device,Wireless Hub, etc. It can be directly attached instead of locking screws or push pins, and the heat conduction effect is good.
Notice:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 2-4mm differences due to manual measurement.
3. If you want to customize your goods, you can let our salesman know your requirements, they will give you some suggestions. For example film thickness, glue thickness, paper core, packing, carton design, and any other things.
Why choose us?
China Heat Resistant Tape is a global, industry-leading manufacturer and marketer of pressure-sensitive tapes, serving numerous markets, including home & office products, industrial/MRO, building, professional paint, automotive, packaging, HVAC, electronics, DIY, arts and entertainment, marine, aerospace, medical.
China Heat Resistant Tape has several production lines including coating machines, rewinding machines, slitting machines, cutting machines, die-cutting machines, automatic packaging machines, and testing machines, Able to provide the services of R&D, OEM, ODM, and procession service for customers.
How to assure the quality for you?
Our purchasing manager has more than 8-year purchasing experience and rich experience in quality control and the advantages of different factories and different products, and different quality levels. We control every material to have stable 2-3 suppliers, who can get much of our orders, and offer stable quality and excellent service. And in our system, we have more than 1000 backup suppliers there, to meet any special and urgent requirement from clients.
How to control the Lead time:
We have mastered all other processes and equipment, and the internal production process control is strictly in place. If you have special and urgent orders, please let us know, we can coordinate internally to help you complete the delivery goals.
About Packaging & Shipping
We can provide different kinds of packaging according to customers' requests, such as labeling, barcode, individual packing, and mailbox packing, you can give us your instruction, and we will follow up on your requests.
Different shipping ways are available, small quantities orders will be delivered to you by express and bulk goods will be delivered to you by sea, we will talk about the delivery method before we dispatch out the goods.
China Heat Resistant Tape have complete management systems, including IOS 9001: and IOS 14001. New product development could be provided to fulfill the customers' new requirements in the shortest time. All the materials were compliant with Rohs and approved by SGS, Reach, or UL.
