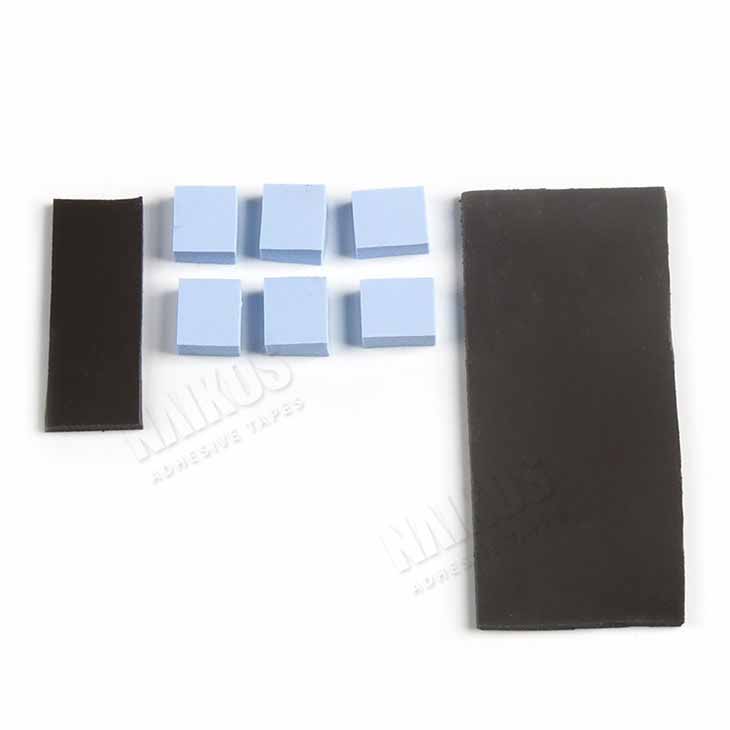

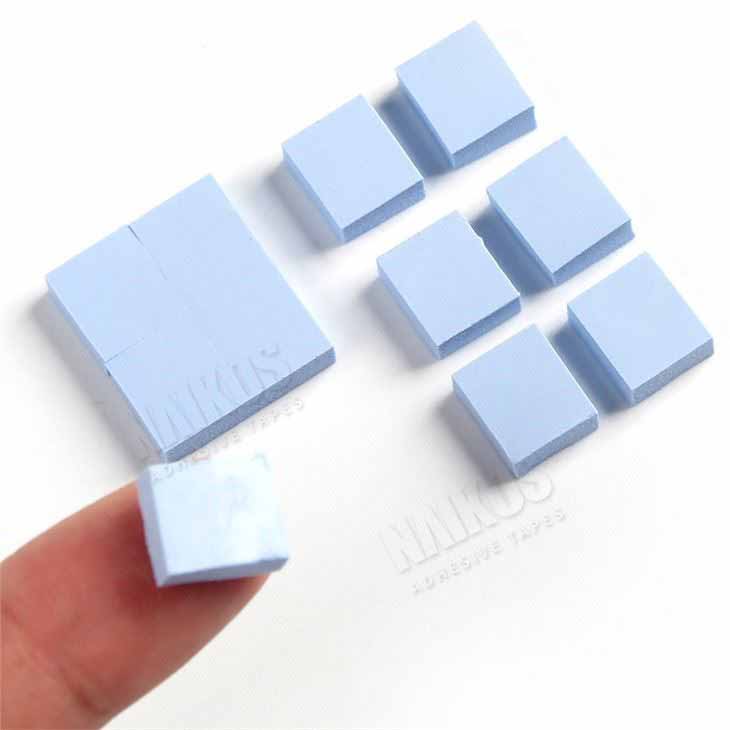

Blue Thermally Conductive Silicone Pad For CPU
* Tear resistant, soft, and conformable
* Excellent electrical insulation
* Thermally conductive silicone
Product Details
Product Description
Blue thermally conductive silicone pad for CPU is made of low-modulus silicone polymer and reinforced with fiberglass. It maintains optimal thermal performance and yet still allows for easy handling. Its insulation and tensile strength are higher than normal thermal pads.
Feature
* Thermal Conductivity: 1.5 W/m-k
* Tear resistant, soft, and conformable
* Excellent electrical insulation
* Thermally conductive silicone
Physical Products
Item | NKS-***-1.5-SFG | Test Value |
Reinforced Carrier | Fiberglass | --- |
Pad Type | Silicone Polymer | --- |
Thickness(mm) | 0.30~1.00 | ASTM D374 |
Color | Blue | VISUAL |
Density(g/cc) | 1.9 | ASTM D792 |
Hardness(Shore C) | 25±5 | ASTM D2240 |
Thermal Conductivity(W/m-k) | 1.5 | ASTM D2240 |
Voltage Resistance(KV/mm) | >4.0 | ASTM D149 |
Temperature Resistance(℃/℉) | -40~+220(℃) -104~+428(℉) | ASTM D5470 |
Volume Resistance(Ω NaN) | 5.0*1013 | ASTM D257 |
Flame Rating | V-0 | UL-94 |
These values are measured values and not guaranteed values.
Available Sizes
Width: Maximum width 41.3 inches (1030mm). (Can be Customized)
Length: 25m/50m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
Applications
Blue thermally conductive silicone pad for CPU Can be applied to telecommunications, computer, and peripherals, RDRAM memory modules,/chip-scale packages, Power conversion, barrater, power supply, automobile, etc.
Our Advantage
* Low MOQ
* Factory sale directly with much competitive price.
* Good Quality Control. There are 3 times quality checking before delivery.
* Free samples are available. Even customized die-cut parts are also available. We guarantee that the samples and mass production tapes would be satisfied.
* All of the customers’ samples/orders would be recorded and maintained secrecy. Customers can re-order with convenience and satisfaction.
Xiamen China Heat Resistant Tape New Material Co., Ltd, is a high-tech company in mainland China, which is specialized in all kinds of tapes, such as blue thermal pads for CPUs, silicone thermal pads, double-sided tapes, etc They are applied as excellent thermal conductive fillers and are mainly used in industries like LED, Power Supply, Telecommunication, Computer and peripherals, PDP, LED TV, Automotive, Home Appliance, etc. The produces were approved by SGS, REACH, and UL.
