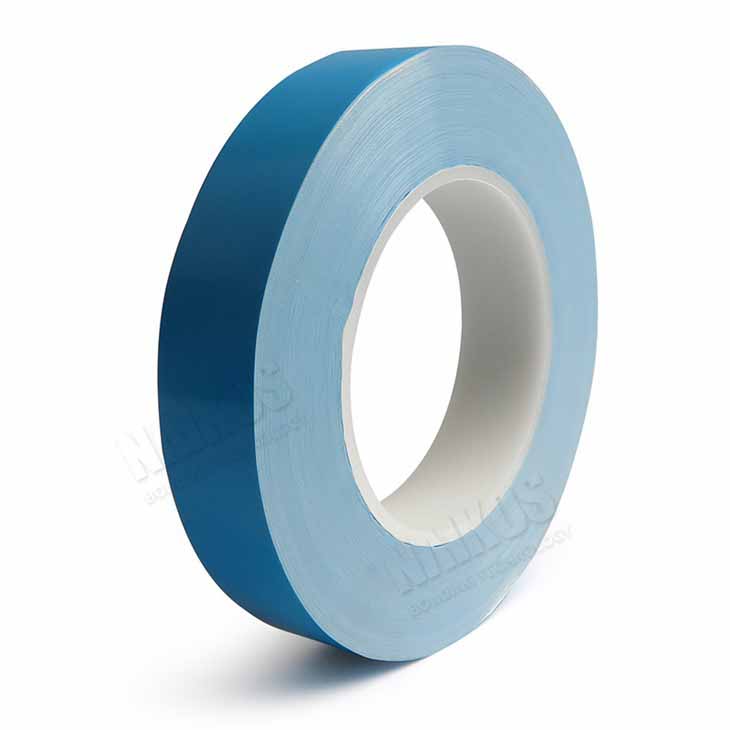

Double-sided adhesive thermal conductive tape meets the requirements of high adhesion strength and excellent thermal efficiency. Between the electronic device and heat transfer to provide efficient heat conduction.Thermal adhesive tape easy mountings to save time and work better on electronics.
Feature
* Easy to use - Just stick on the surface of any object and tear the blue release paper, which can be tightly and firmly conglutinate on the heat source devices and heat sink to speed the heat dissipation.
* Excellent cooling effect
* Wide working temperature range
* Various thicknesses for choice
* Break-down resistance and easy die-cutting
* Flexible and conformable. Ideal for uneven surfaces.
Product Construction
Specification
Item
NKS-##
NKS-##N
Test Method
Carrier
Glass Fabric
N/A
---
Adhesive
Thermally Conductive PSA
Thermally Conductive PSA
---
Total thickness (mm)
0.10~0.50
0.05~0.40
ASTM D374
Color
White
White
VISUAL
Release Liner
Blue PE Film
White Release Paper
VISUAL
Adhesion (N/25mm)
12~18
12~18
PST-101
Thermal Conductivity(W/m-k)
1.2
1.2
ASTM D22470
Voltage Resistance(KV/mm)
3.5~8.0
3.5~8.0
ASTM D149
Temperature Resistance(Short Term,℃/℉)
120(℃)
248(℉)
120(℃)
248(℉)
EN344
Temperature Resistance(Long Term,℃/℉)
80(℃)
176(℉)
80(℃)
176(℉)
EN344
Standard width (mm)
2~1030(Customized Available)
Standard length (m)
25/50(Customized Available)
These values are measured values and not guaranteed values.

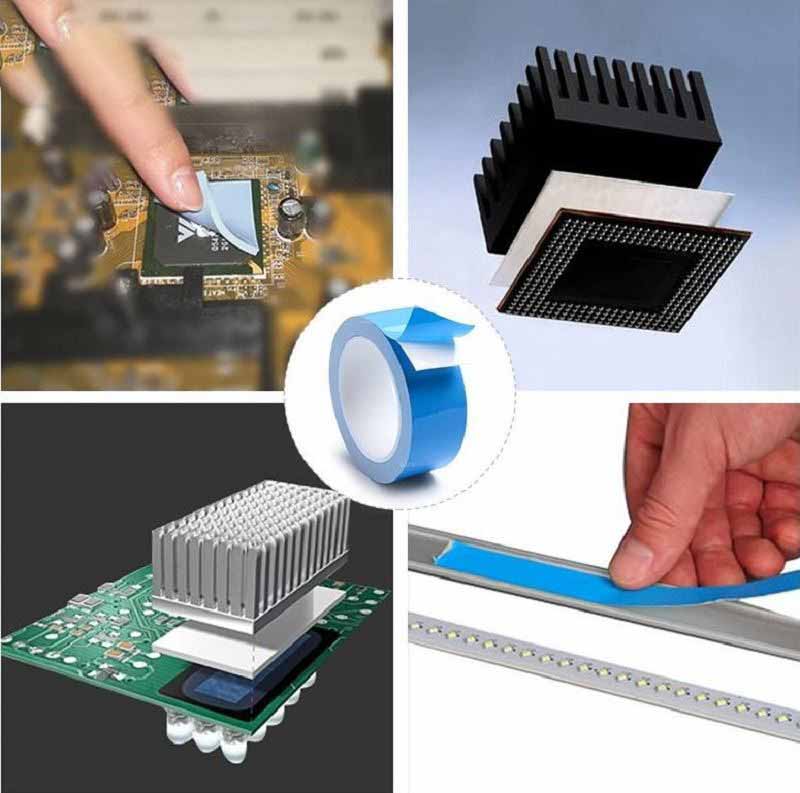

Application Modes:
The filling between PCB and heat sink
The filling between IC and heat sink or product outer coving
The filling between IC and similar heatsink cooling materials
Application
The double-sided adhesive thermal conductive tape can be used on the control board of electronic and electrical products; Pads and footpads inside and outside the motor; Appliances, automotive machinery, computer hosts, notebook computers, DVDs, VCDs, and any materials that require filling and cooling modules.
Our Advantages
1. Low MOQ
2. OEM and ODM services available.
3. Factory sale directly with much competitive price.
4. Good Quality Control. There are 3 times quality checking before delivery.
5. Free samples are available. Even customized die-cut parts are also available. We guarantee that the samples and mass production tapes would be satisfied.
6. All of the customers’ samples/orders would be recorded and maintained in secrecy. Customers can re-order with convenience and satisfaction.
Handling and Storage Precautions
Products should be stored in a dry place out of direct sunlight
Avoid contact with residual solvents or oils as they may deteriorate the properties of the product.
For better results, the substrate surface should be cleaned and dried to remove any dirt, moisture, or oils before application.
