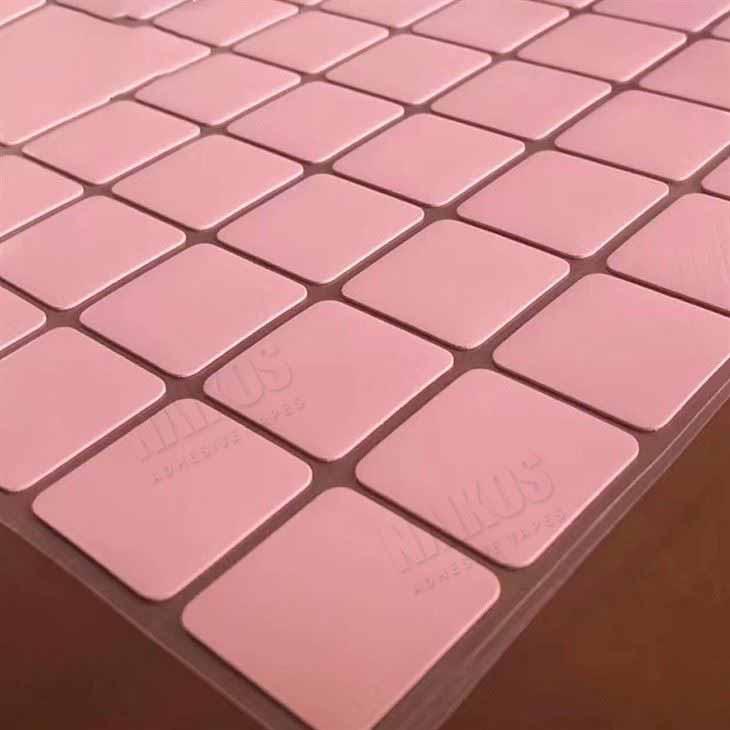

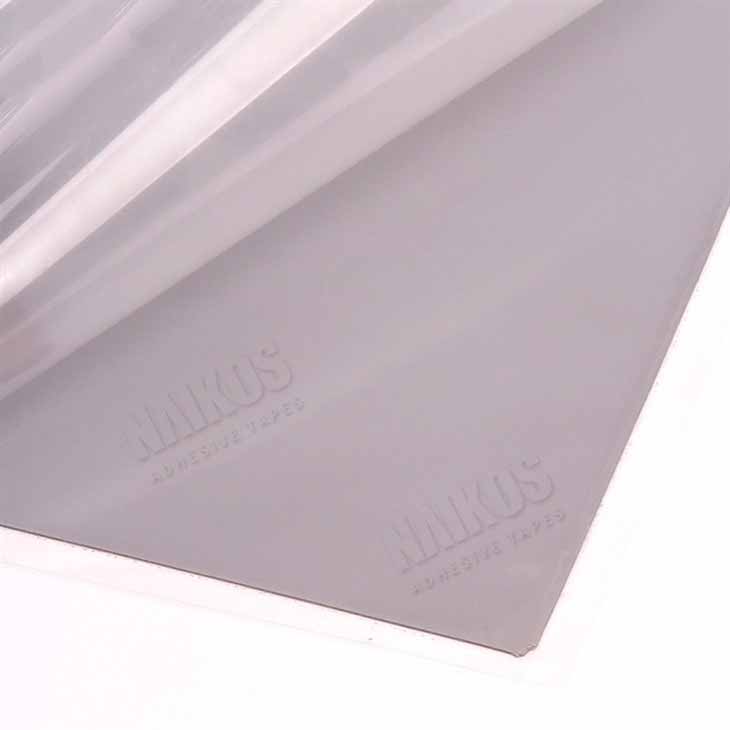

Thermal Pad 1-15w/mk For GPU CPU LED Cooler
Excellent thermal conductivity and electrical insulation
Meet the environmental requirements of ROHS and UL
Multiple thicknesses, hardness, and thermal conductivities
Product Details
Products Description
NKS Thermal pad 1-15w/MK for GPU CPU LED cooler is a kind of high performance interface materials. Consisting of a silicone/ fiberglass composite, Thermal conductive pads are utilized to fill air gaps brought about by unsmooth level or bumpy surfaces which ought to be in thermal contact; they would not be required between seamless and smooth surfaces. Thermally conductive interface pads are moderately firm at room temperature, however, become delicate and can fill gaps at higher temperatures. the heat transfer pad is soft, self-sticky, and strong. It will not dry out, crack or fail when pressured between mating parts, so it is widely used in LED, GPU, CPU, Heatsink, Laptop, PCB modules, and Cooler devices with the high efficient thermal conductivity on them.
Features:
Non-Electrical Conductive, Easy Application
Non-Corrosive, Non-Curing & Non-Toxic

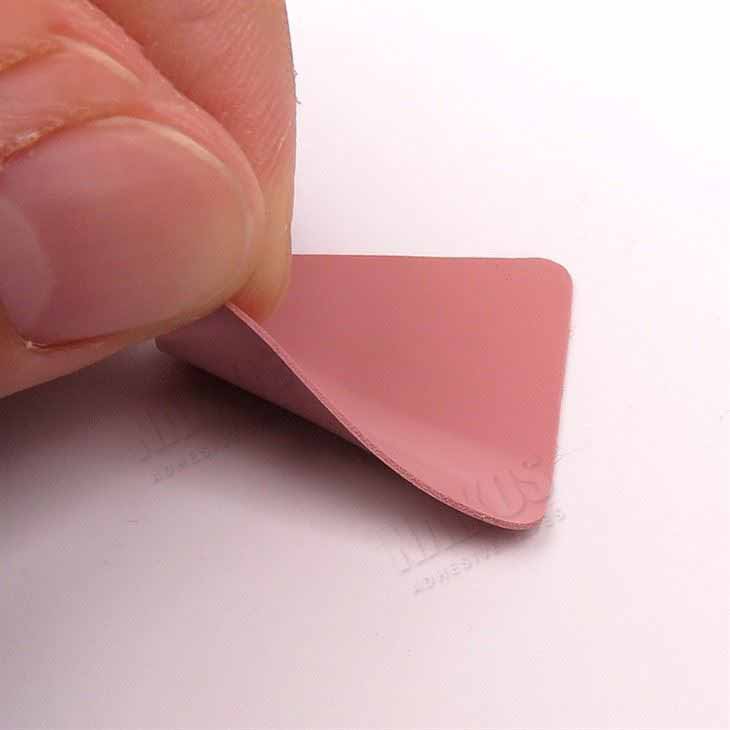

Natural tacky
Available for unventilated design
Excellent thermal conductivity and electrical insulation
Meet the environmental requirements of ROHS and UL
Multiple thicknesses, hardness, and thermal conductivities
Physical Properties:
Item | NKS-###-PAD-TC | NKS-###-PAD-MTC | NKS-###-PAD-HTC | Test Method |
Reinforced Carrier | N/A | N/A | N/A | --- |
Pad Type | Silicone Polymer | Silicone Polymer | Silicone Polymer | --- |
Thickness(mm) | 0.30~12.00 | 0.30~5.0 | 0.30~3.0 | ASTM D 374 |

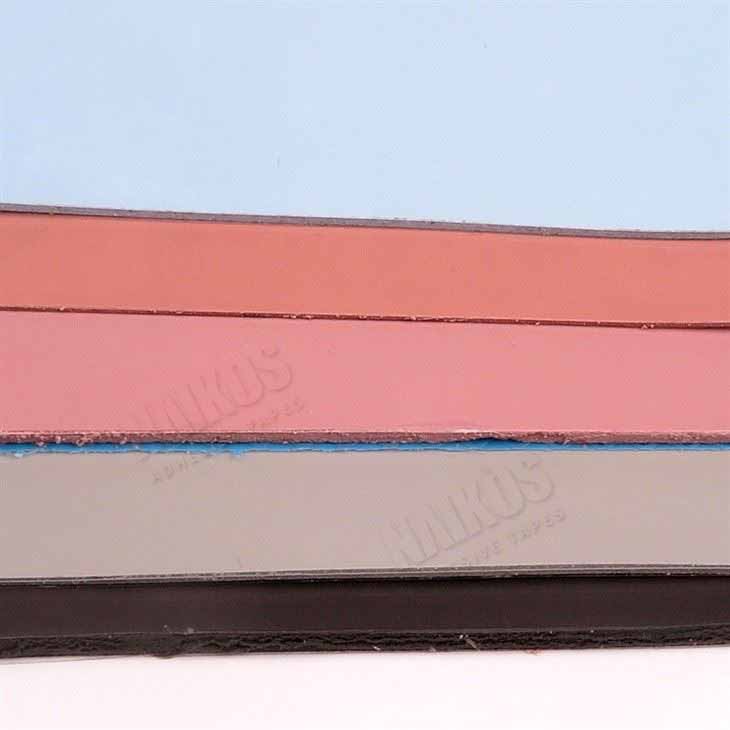

Color | Grey/Pink/Blue/Black | Grey/Pink/Blue/Black | Grey/Pink/Blue/Black | VISUAL |
Density(g/cc) | 1.8~2.8 | 3.0 | 3.2~3.5 | ASTM D792 |
Hardness(Shore C) | 30±5 | 25±5 | 25±5 | ASTM D2240 |
Thermal Conductivity(W/m-k) | 1.0~2.5 | 2.0~3.0 | 3.0~15.0 | ASTM D2240 |
Voltage Resistance(KV/mm) | >4.0 | >4.0 | >4.0 | ASTM D149 |
Temperature Resistance (℃/℉) | -40~+220(℃) -104~+428(℉) | -40~+220(℃) -104~+428(℉) | -40~+220(℃) -104~+428(℉) | ASTM D5470 |
Volume Resistance(Ω NaN) | 1.0*1011 | 3.1*1011 | 3.1*1011 | ASTM D257 |
Flame Rating | V-0 | V-0 | V-0 | UL-94 |
Standard Size(mm) | 200*400(Customized Available) |
Application:

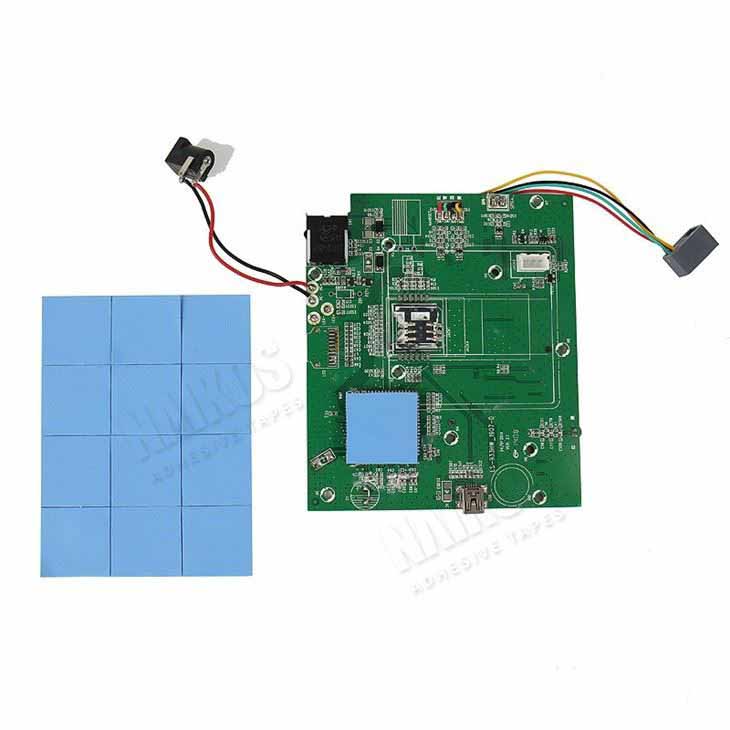

1. PDP, LCD, Laptop, PC, Communication hardware equipment, Routers, etc.
2. Thermal Pad 1-15w/MK For GPU CPU LED Cooler
3. IC, CPU, COP, Capacitance, MOS, Power Supply Module, Server, Player, Mobile Phone, etc.
4. Electronic components: Electric Vehicles, 5G, Autopilot System, Mobile
5. Phone, AIOT, HPC (High-Performance Computing), Server
6. Mother Board, Power Supply, Heat Sink, LCD-TV, Notebook, PC, LED Telecom Device,
FAQ:
Q1: Are you a trade company or manufacturer?
A1: Manufacturer, China Heat Resistant Tape (ShenZhen) Adhesive Tape Co., Ltd is an adhesive tape overall solutions to suppliers, with over 15 years of experience in the Tape Field.
Q2: Can you produce customized sizes or do special packaging?
A2: Customized is ok, please provide the drawings.
We can do any special packaging as required, such as individual shrink with logo card, barcode label, blister card, or any request.
Q3: What thermal conductivity you can do?
A3: We can do thermal conductivity from 1.0-15.0W/MK.
Q4:What are your thickness sizes?
A4: The thickness we can produce is from 0.3mm-12.0mm
Q5: What is the general size of the thermal pad?
The general size in the market is 200mm*400mm, other sizes could be customized.
Item | NKS-###-PAD-TC | NKS-###-PAD-MTC | NKS-###-PAD-HTC | Test Method |
Reinforced Carrier | N/A | N/A | N/A | --- |
Pad Type | Silicone Polymer | Silicone Polymer | Silicone Polymer | --- |
Thickness(mm) | 0.30~12.00 | 0.30~5.0 | 0.30~3.0 | ASTM D 374 |
Color | Grey/Pink/Blue/Black | Grey/Pink/Blue/Black | Grey/Pink/Blue/Black | VISUAL |
Density(g/cc) | 1.8~2.8 | 3.0 | 3.2~3.5 | ASTM D792 |
Hardness(Shore C) | 30±5 | 25±5 | 25±5 | ASTM D2240 |
Thermal Conductivity(W/m-k) | 1.0~2.5 | 2.0~3.0 | 3.0~15.0 | ASTM D2240 |
Voltage Resistance(KV/mm) | >4.0 | >4.0 | >4.0 | ASTM D149 |
Temperature Resistance (℃/℉) | -40~+220(℃) -104~+428(℉) | -40~+220(℃) -104~+428(℉) | -40~+220(℃) -104~+428(℉) | ASTM D5470 |
Volume Resistance(Ω NaN) | 1.0*1011 | 3.1*1011 | 3.1*1011 | ASTM D257 |
Flame Rating | V-0 | V-0 | V-0 | UL-94 |
Standard Size(mm) | 200*400/320x320(Customized Available) |
