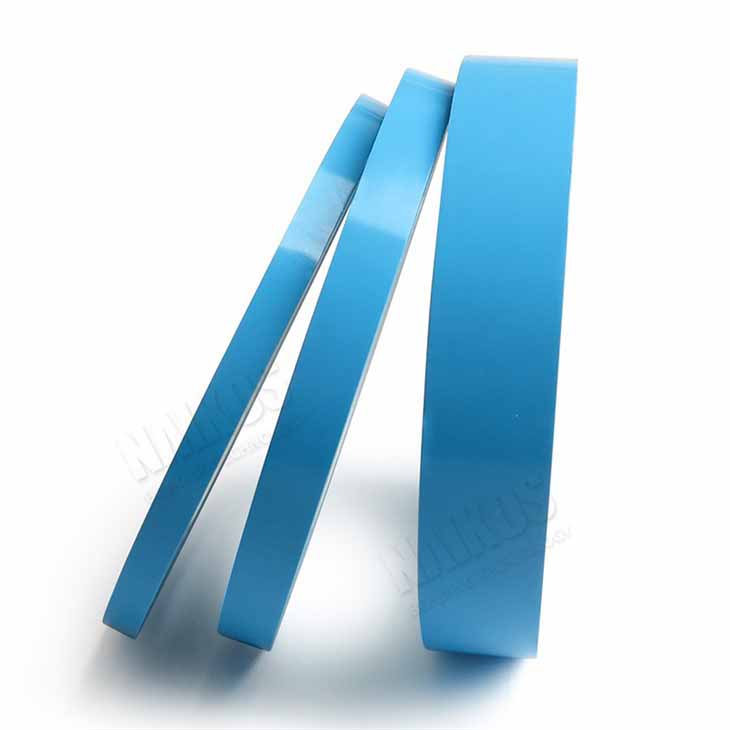

Thermally Conductive Adhesive Tape For IC Chipset Heatsink

* Good adhesion and thermal conductivity
* Flexibility, conformability
* Wide working temperature range
* Various thicknesses for choice
* Stable and Economy

Download

Product Details

Product Description

Thermally conductive adhesive tape for IC chipset heatsink is made of an advanced thermal conductive pressure-sensitive adhesive with fiberglass cloth. Thickness: 0.1mm to 0.5mm,Width: 4mm to 1030mm (can be customized)

Thermally conductive adhesive tape for IC chipset heatsink can satisfy the thermal conducting or cooling needs of high-end electronic products, and help the lifespan of electronic components. It is used for attaching heatsinks, chipset, high power LED, video card RAM, DDR memory modules, SSD drives, etc.

Features

* Good adhesion and thermal conductivity

* Flexibility, conformability

* Wide working temperature range

* Various thicknesses for choice

* Stable and Economy

Construction

Thermally Conductive Tape.png

Physical Properties

Item No.	Thickness (mm)	180°Peel Strength (PSTC-101) (N/25mm)	Insulation Strength (ASTM D149) (KV)	Thermal Impedance @40PSI (AMD2240) (C*in2/W)	Thermal Conductivity (ASTM D22470) (W/m-k)	Temperature Range
NKS-10	0.10±10%	＞13.72	2.22	0.626	1.20	-20℃～+120℃
NKS-15	0.15±10%	＞13.72	2.55	0.715
NKS-20	0.20±10%	>13.72	4.29	1.125
NKS-25	0.25±10%	>13.72	5.0	1.196
NKS-30	0.30±10%	>13.72	5.0	1.445
NKS-50	0.50±10%	>13.72	5.0	2.098

Note: The above technical information and data should be considered representative or typical only and should not be used.

Available Sizes

Width: Maximum width 41.3 inches (1030mm). (Can be Customized)

thermal tape.jpg

Length: 25m/50m (Can be customized).

Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.

Our Services

Customers would be provided with the below services if they are interested in our products.

A. Customized orders like different cutting sizes, die-cutting designs are all available.

B. Professional recommendations on tape choice for customers.

C. Free samples are available.

D. Competitive prices.

E. In-time delivery.

F. Quality assurance.

Xiamen China Heat Resistant Tape New Material Co., Ltd, is a high-tech company in mainland China, which is specialized in all kinds of tapes, such as thermally conductive tape, double-sided tapes,....... has more than 12 years of rich experience in this field, China Heat Resistant Tape has its advantage D&R, quality monitoring, sales system, and customer service after the sale. Co-operate with us, you will enjoy one-stop purchasing.
