* High cohesive strength
* Excellent UV and weather resistance
* Good mechanical fixation
*Improved application time versus liquid adhesive
*Pressure sensitive adhesive holds clip position before the curing process
Structural bonding tape is a high-performance epoxy-modified acrylic foam double-sided tape. The foam itself has high cohesive strength. The special adhesive system on the surface can make the product have better initial bonding strength. After the product is cured at a high temperature, the strength of the colloid itself is greatly improved.
Structural bonding tape meets the requirements of ROHS regulations in terms of environmental protection. This product is suitable for parts such as vehicles that require high-strength mechanical fixation, and at the same time, it is of great help to the lightweight of vehicles. This product is anti-ultraviolet, anti-solvent, and has a good outdoor application effect.
* High cohesive strength
* Excellent UV and weather resistance
* Good mechanical fixation
*Improved application time versus liquid adhesive
*Pressure sensitive adhesive holds clip position before the curing process

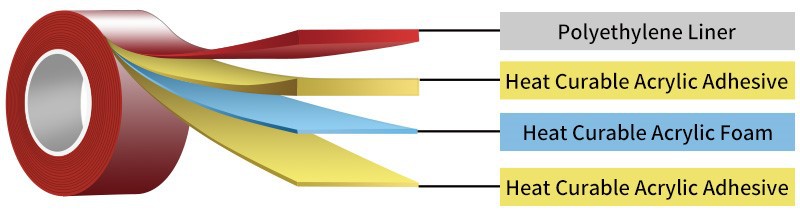

Item | Structural Bonding Tape | ||
Color | White/Dark Gray | ||
Carrier | Heat Curable Acrylic Foam | ||
Adhesive | Heat Curable Acrylic Adhesive | ||
Total Thickness | 0.5~1.1 mm (±0.1) | ||
90°Peel Adhesion | ≥19N/cm | ||
Heating Condition | 130~180C*30 min | ||
Shear Strength | 12 MPa | ||
Width | 6~900 mm(Customized Width Available) | ||
Length | 33 m(Customized Length Available) |
* Used in mechanical attachment clips to vehicle bodies
* Used in a wide variety of roof ditch and body sheet metal designs
* Used with a wide variety of plastic and steel clip designs
* Bonding the clips for the window molding fix, roof molding fix glass line molding fix, etc.
Structural bonding tape is an ideal bonding solution for automotive applications. It offers numerous advantages over traditional bonding methods, including high strength, and versatility. If you're looking for an efficient and reliable bonding solution for your automotive products, structural bonding tape may be just what you need.
China Heat Resistant Tape Industrial is one of the excellent manufacturers and suppliers of structural bonding tape in China, which is equipped with a professional factory and advanced equipment. We aims at providing you with high quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at competitive price.Hot Tags: structural bonding tape suppliers China, manufacturers, factory, price, made in China, thermal conductive pad suppliers china, surface protection film manufacturers, heatsink thermal pad suppliers, heat tape suppliers china, fiberglass tape, conductive pad
Item | Structural Bonding Tape | ||
Color | White/Dark Gray | ||
Carrier | Heat Curable Acrylic Foam | ||
Adhesive | Heat Curable Acrylic Adhesive | ||
Total Thickness | 0.5~1.1 mm (±0.1) | ||
90°Peel Adhesion | ≥19N/cm | ||
Heating Condition | 130~180C*30 min | ||
Shear Strength | 12 MPa | ||
Width | 6~900 mm(Customized Width Available) | ||
Length | 33 m(Customized Length Available) |
