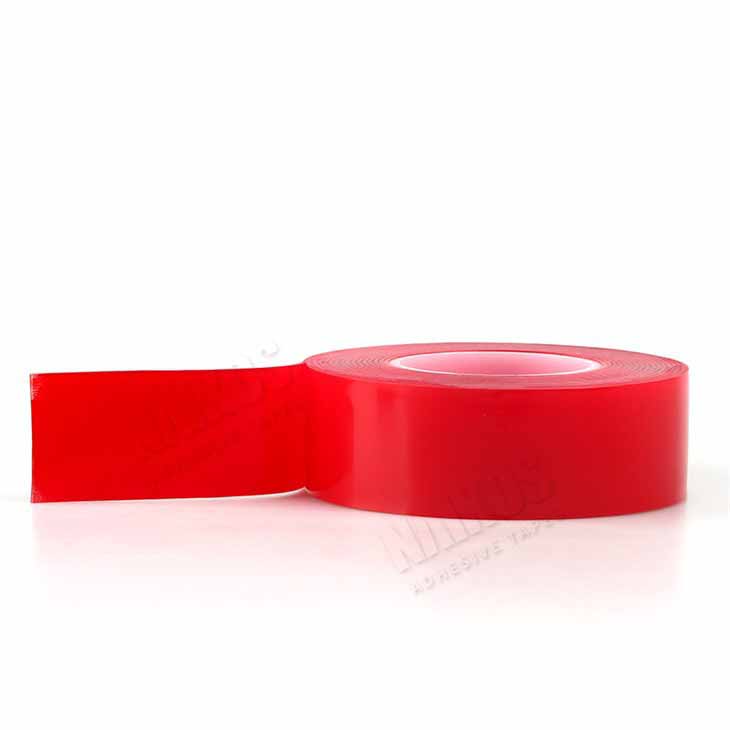

Double-Sided Clear Strong Foam Tape

* Strong adhesion
* Good waterproof
* Good shock absorption performance
* Good durability designed for permanent bonding
* Clean surface without using of rivet

Send Inquiry

Product Description

Double-sided clear strong foam tape is a conformable, very high bond acrylic foam tape. its own feature of high temperature/low-temperature resistance, super strong adhesion, excellent holding force, no tacking, and moisture resistance, Let it widely used in various electronics, digital industry, home, office shutters.

Features

* Strong adhesion

* Good waterproof

* Good shock absorption performance

* Good durability designed for permanent bonding

* Clean surface without using of rivet

Application

* Mount backlit translucent signs

* Edge-bond resin filled glass

* Metal, glass, and high surface energy (HSE) substrates

* Decorative material and trim

* Nameplates and logos

Construction

Acrylic PSA

Acrylic Foam

Acrylic PSA

Release Film

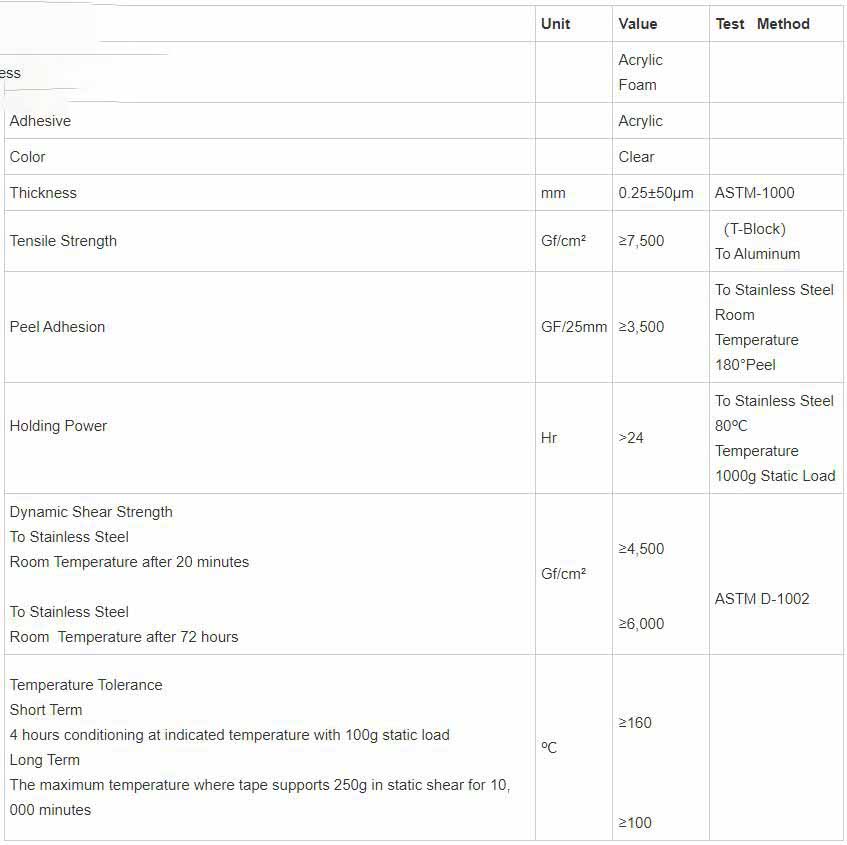

Physical Properties

Item	Unit	Value	Test Method
Carrier		Acrylic Foam
Adhesive		Acrylic
Color		Clear
Thickness	mm	0.25±50μm	ASTM-1000
Tensile Strength	Gf/cm²	≥7,500	（T-Block） To Aluminum
Peel Adhesion	GF/25mm	≥3,500	To Stainless Steel Room Temperature 180°Peel
Holding Power	Hr	>24	To Stainless Steel 80℃ Temperature 1000g Static Load
Dynamic Shear Strength To Stainless Steel Room Temperature after 20 minutes To Stainless Steel Room Temperature after 72 hours	Gf/cm²	≥4,500 ≥6,000	ASTM D-1002
Temperature Tolerance Short Term 4 hours conditioning at indicated temperature with 100g static load Long Term The maximum temperature where tape supports 250g in static shear for 10, 000 minutes	℃	≥160 ≥100

Note: The above technical information and data should be considered representative or typical only and should not be used.

Shelf Life

Double-sided clear strong foam tape shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.

Available Sizes

Width: Maximum width 31.5 inches (800mm). (Can be Customized)

Length: Maximum Length 33m (Can be customized).

Custom Sizes: Please feel free to contact the NKS sales representative if you need customized sizes or die-cut parts.

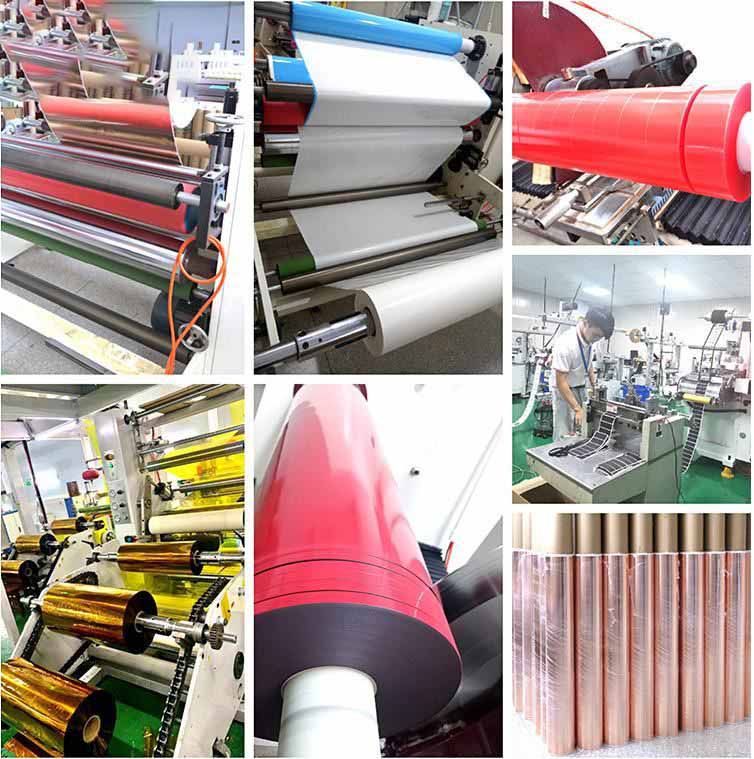

Production Details

Double-Sided Clear Strong Foam Tape

Xiamen China Heat Resistant Tape New Material Co., Ltd was set up in the beautiful city-Xiamen. We produce many kinds of adhesive tapes including clear strong foam tape, VHB tape, foam tape, double-sided tape, etc. The adhesive tapes from China Heat Resistant Tape are widely approved by customers all over the world. Customers are warmly welcome to visit us and set up a long-term partnership based on a win-win conception.
