* Peel strength
* Good weather resistant
* Environment-friendly
* No import restriction
* Easy Handle
Product Description

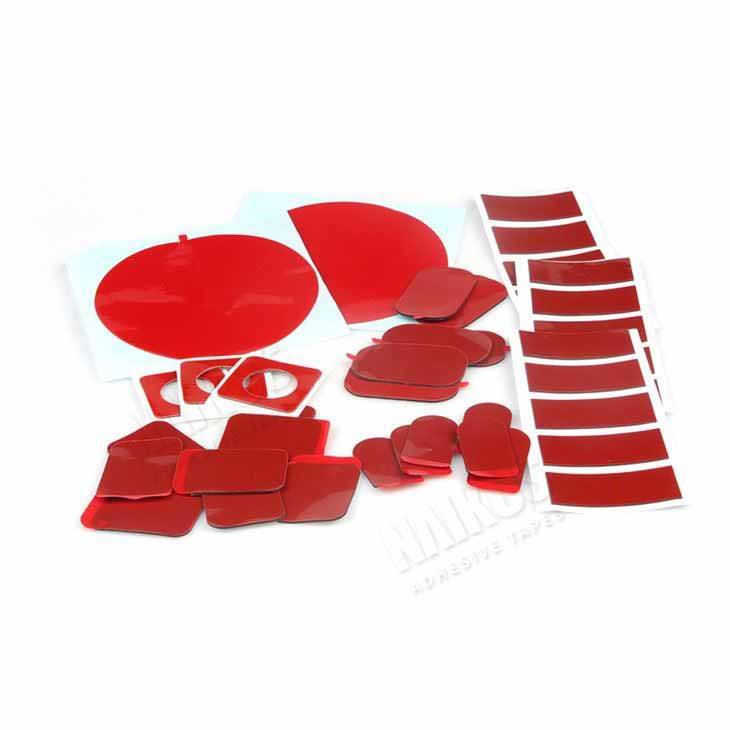

Die-cut high bond double-sided acrylic foam tape is based on complete acrylic acid as substrate and laminated with paper/film as release liner.
Features
* Strong Adhesive
* Peel strength
* Good weather resistant
* Environment-friendly
* No import restriction
* Easy Handle
Application
Die-cut high bond double-sided acrylic foam tape applies to automotive interior parts, door trim, trim strip, front trim, Can also be used to replace mechanical fasteners in the appliance, automotive, sign, graphics, glass curtain wall attachment, and other manufacturing applications.
Construction
Acrylic PSA Acrylic Foam Acrylic PSA Release Film |

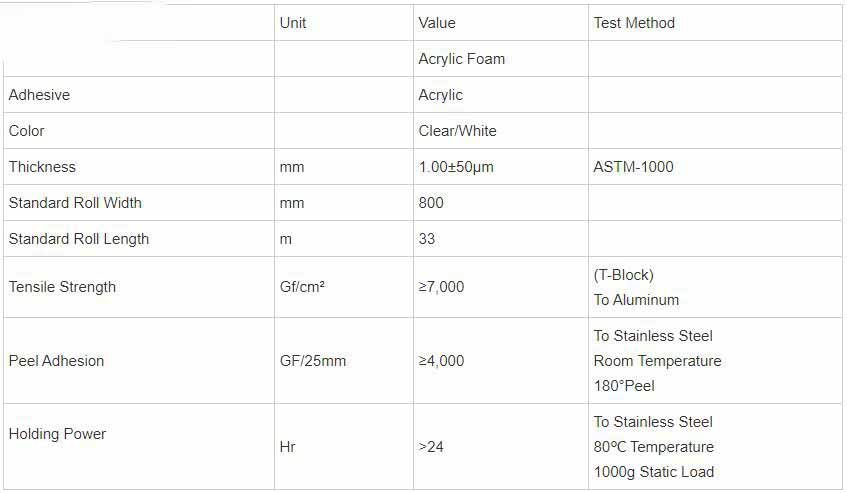

Physical Properties
Item | Unit | Value | Test Method |
Carrier | Acrylic Foam | ||
Adhesive | Acrylic | ||
Color | Clear/White | ||
Thickness | mm | 1.00±50μm | ASTM-1000 |
Standard Roll Width | mm | 800 | |
Standard Roll Length | m | 33 | |
Tensile Strength | Gf/cm² | ≥7,000 | (T-Block) To Aluminum |
Peel Adhesion | GF/25mm | ≥4,000 | To Stainless Steel Room Temperature 180°Peel |
Holding Power
| Hr | >24 | To Stainless Steel 80℃ Temperature 1000g Static Load |
These values are measured values and not guaranteed values.
Shelf Life
Product shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.
Available Sizes
Width: Can be Customized
Length: Can be customized
Custom Sizes: Please feel free to contact the NKS sales representative if you need customized sizes or die-cut parts.
