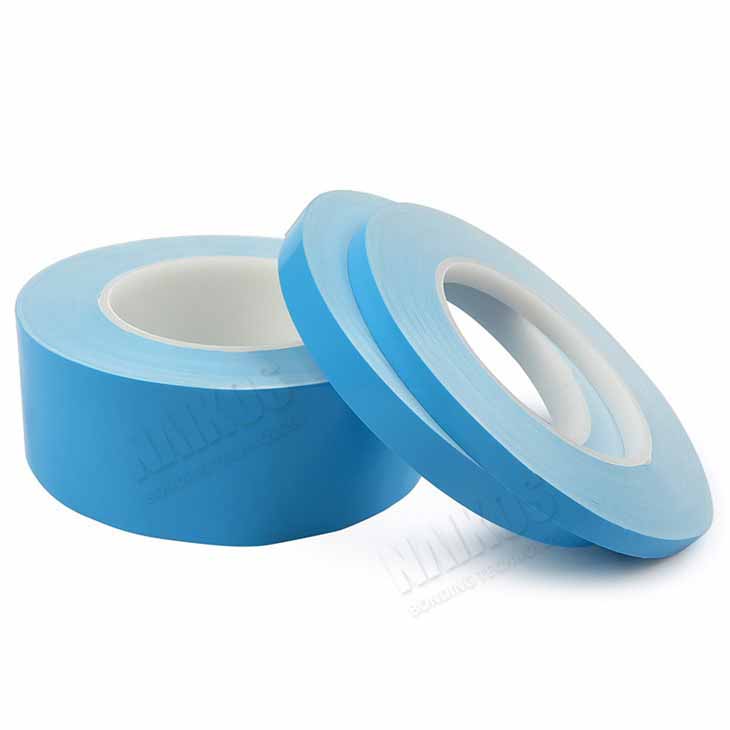

Thermal Conductive Adhesive Transfer Tape
* Excellent shock performance
* Good thermal transfer
* Wider and longer roll is available
Product Details
Product Description
Thermal conductive adhesive transfer tape is made of advanced thermal conductive PSA. This thermally conductive tape offers excellent adhesive performance with good wetting and flow onto many substrate surfaces, and offers both good thermal conductivity and good electrical insulation properties. Thermal conductive adhesive tape provides a better way for applications requiring good adhesion strength and superior thermal conductive efficiency.
Feature
* High mechanical strength
* Excellent shock performance
* Good thermal transfer
* Strong tensile strength
* Wider and longer roll is available
* Thermal transfer tape is suitable for irregular surfaces because of its flexibility
* Best die-cut tape to mount various precision molded parts
Product Construction
Specification
| Item | NKS-## | NKS-##N | Test Method |
| Carrier | Glass Fabric | N/A | --- |
Adhesive | Thermally Conductive PSA | Thermally Conductive PSA | --- |
Total thickness (mm) | 0.10~0.50 | 0.05~0.40 | ASTM D374 |
Color | White | White | VISUAL |
Release Liner | Blue PE Film | White Release Paper | VISUAL |
Adhesion (N/25mm) | 12~18 | 12~18 | PST-101 |
Thermal Conductivity(W/m-k) | 1.2 | 1.2 | ASTM D22470 |
Voltage Resistance(KV/mm) | 3.5~8.0 | 3.5~8.0 | ASTM D149 |
Temperature Resistance(Short Term,℃/℉) | 120(℃) 248(℉) | 120(℃) 248(℉) | EN344 |
Temperature Resistance(Long Term,℃/℉) | 80(℃) 176(℉) | 80(℃) 176(℉) | EN344 |
Standard width (mm) | 2~1030(Customized Available) | ||
Standard length (m) | 25/50(Customized Available) | ||
Notice: The above were reference values. For detailed information, please contact China Heat Resistant Tape.
Application
Thermal conductive adhesive transfer tape apply to LED lightings, Cooling Components to the Chassis, Frame, or another type of heat spreader, Mass Storage Drives, Heat Pipe assemblies, RDRAM Memory Modules, High-Frequency Microprocessors, Notebook, Desktop PCs, etc.
China Heat Resistant Tape provides high-quality thermally conductive tape, with a sheet or coiled tap customized according to unique customer needs. This tape can also be slit into the required width and shapes through different die-cutting applications.
OEM Size: Special length, thickness, or combinations can be supplied per the customer’s request. Products can be supplied in rolls, tape, sheets, or shapes per the customer’s request. Only you provide the CAD drawing, we can die-cut any size for you.
