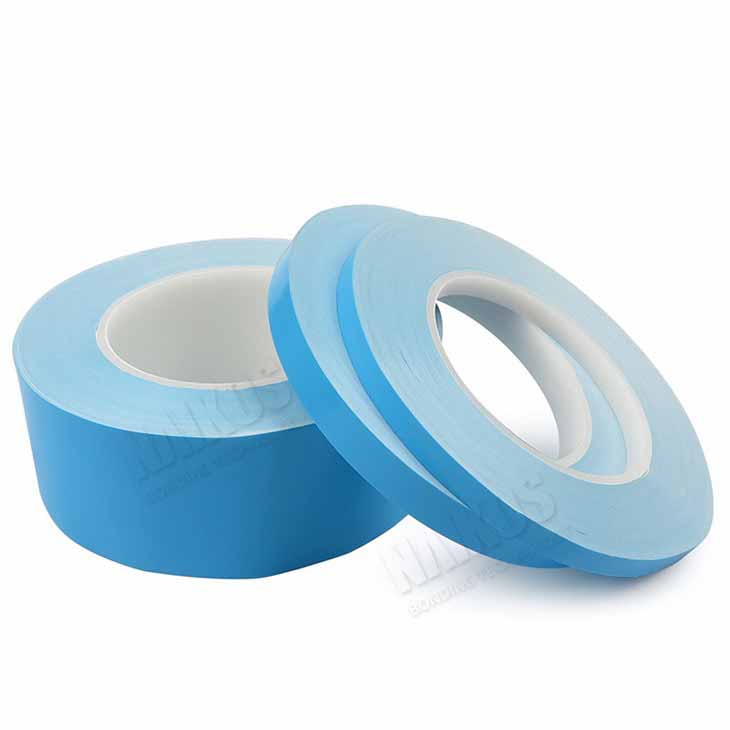

Thermal conductive double-sided tape is made of advanced thermal conductive PSA. The thermal conductive tape has high thermal conductivity and insulation properties and has It can adapt to a large temperature range, can fill uneven surfaces, can tightly and firmly fit the heat source device and the heat sink, and quickly conduct heat away.
Feature
* High Performance
This high-performance thermal double-sided tape dissipates heat and extreme temperatures - preventing damage in extended exposure to high temperatures like LED strips and 3D Printer beds.
* Residue-Free
The double-sided thermal tape is thermal-shock resistant and residue-free. It resists high temperatures while leaving a clean and smooth base finish on the printed model.
* Easy to Install
The thermal adhesive tape is easy to manage, handle, and install - all thanks to its optimal thickness. Its adhesive liner is easy to peel off and cut.
Product Construction
Specification
Item
NKS-##
NKS-##N
Test Method
Carrier
Glass Fabric
N/A
---
Adhesive
Thermally Conductive PSA
Thermally Conductive PSA
---
Total thickness (mm)
0.10~0.50
0.05~0.40
ASTM D374
Color
White
White
VISUAL
Release Liner
Blue PE Film
White Release Paper
VISUAL
Adhesion (N/25mm)
12~18
12~18
PST-101
Thermal Conductivity(W/m-k)
1.2
1.2
ASTM D22470
Voltage Resistance(KV/mm)
3.5~8.0
3.5~8.0
ASTM D149
Temperature Resistance(Short Term,℃/℉)
120(℃)
248(℉)
120(℃)
248(℉)
EN344
Temperature Resistance(Long Term,℃/℉)
80(℃)
176(℉)
80(℃)
176(℉)
EN344
Standard width (mm)
2~1030(Customized Available)
Standard length (m)
25/50(Customized Available)
Notice: The above were reference values. For detailed information, please contact China Heat Resistant Tape.
Application
Thermal conductive double-sided tape is widely used in electronics, the LED lighting industry, the TV field, and mold heat-conducting applications.
