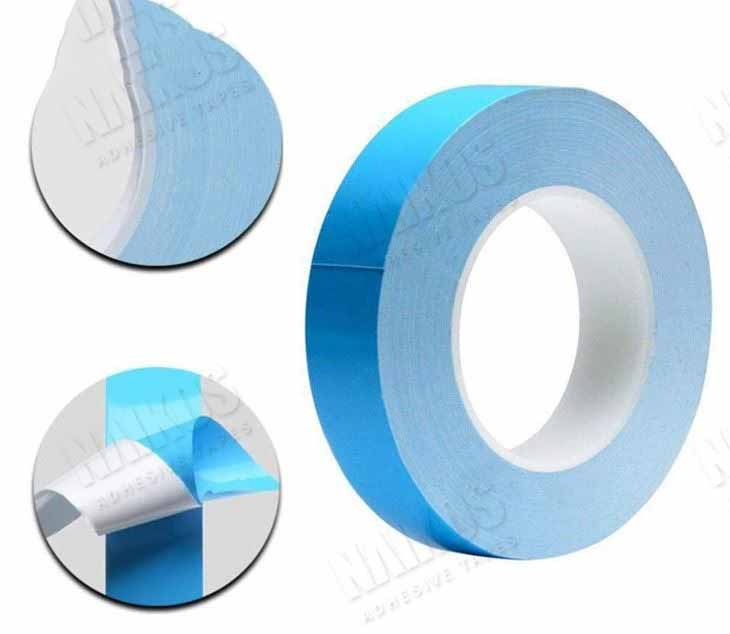

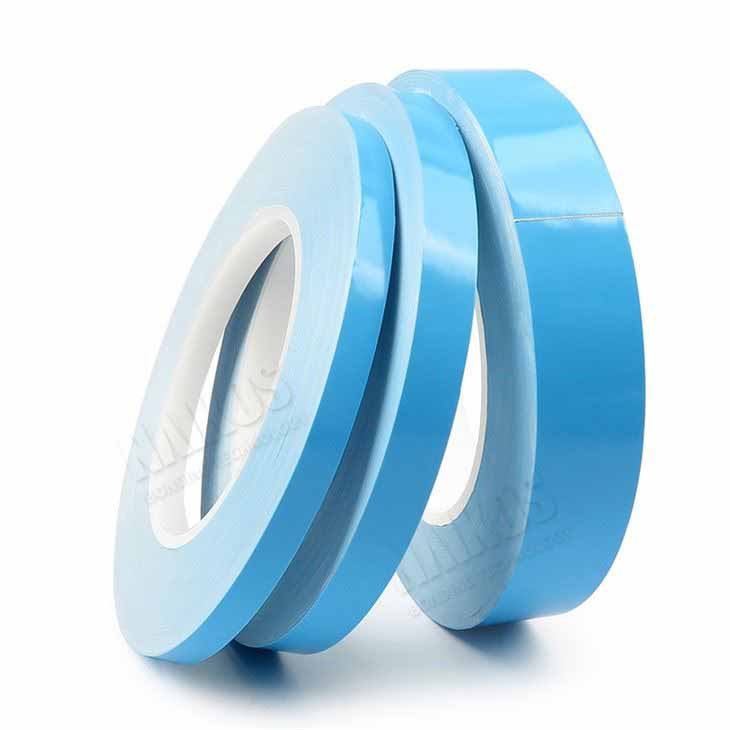

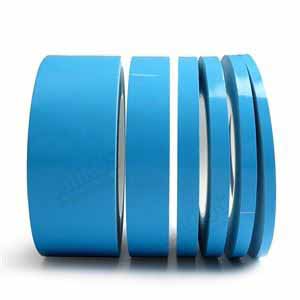

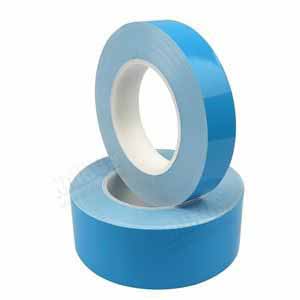

Led Electrical Insulating Thermal Tape

Led electrical insulating thermal tape is a gap filled with high-performance thermal conductivity material, mainly used in electronic devices and heatsinks or product transfer interface between the enclosure, bonding heat sinks, heat spreaders and other cooling devices to lC packages.

Led electrical insulating thermal tape has a good adhesive, is flexible, has good compression performance, and has excellent heat transfer capacity.

The thermal adhesive tape also has a certain degree of self-adhesive, compared to ordinary thermal insulation material in the product installation process has brought great convenience easy off, and is easy to operate.

Feature

• Thermal conductivity 1.2W/MK

• Double-sided adhesive, easy to operate

• insulation, strong adhesive, flexibility, compression

• Temperature Resistance: 80-120(℃)

• Thermal tape prolongs the Led light, heatsink, and heat transfer devices' lifespan

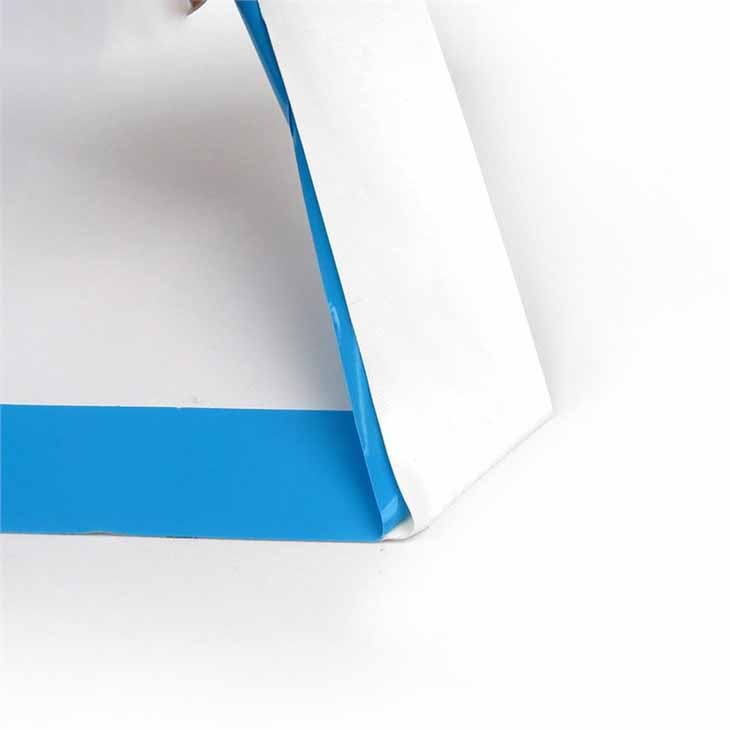

Product construction

Physical properties

Item	NKS-##	NKS-##N	Test Method
Carrier	Glass Fabric	N/A	---
Adhesive	Thermally Conductive PSA	Thermally Conductive PSA	---
Total thickness(mm)	0.10~0.50	0.05~0.40	ASTM D374
Color	White	White	VISUAL
Release Liner	Blue PE Film	White Release Paper	VISUAL
Adhesion (N/25mm)	12~18	12~18	PST-101
Thermal Conductivity(W/m-k)	1.2	1.2	ASTM D22470
Voltage Resistance(KV/mm)	3.5~8.0	3.5~8.0	ASTM D149
Temperature Resistance(Short Term, ℃/℉）	120(℃)  248(℉)	120(℃)  248(℉)	EN344
Standard width（mm）	2~1240(Customized Available)
Standard length（m）	25/50(Customized Available)

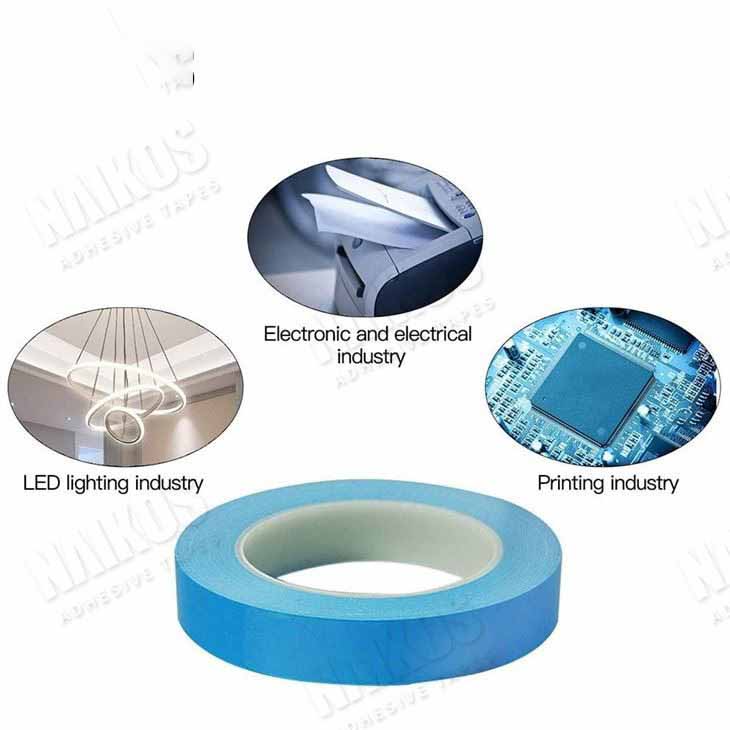

Application

• Communication equipment; Mobile equipment

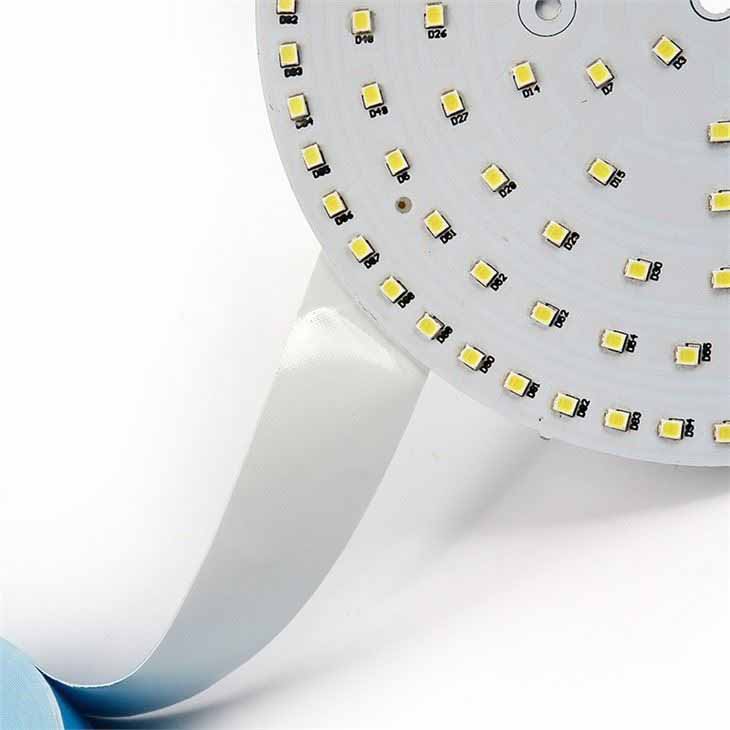

• LED Light; Video equipment, Switching power supply




• Networking equipment;




•  Bock light model; Household appliances




• Medical equipment; PC server/workstations Specifications

FAQ

Q1: Is that workable for a Led backlight?

 1). Yes, of course. Many customers use it in a way with excellent thermal conductivity.

Q2: Could you provide die-cut service?

 2). We are Manufactory, so die-cut thermally conductive tape into any shape and size is ok.

Q3: Can I get some free samples for the test?

 3). Yes, We are always glad to send the sample to our customer for the test, If we have it in stock, We'd like to send it to you for free. and you just pay the shipping fee for a free sample. Or kindly give us the courier account for sample expression.
