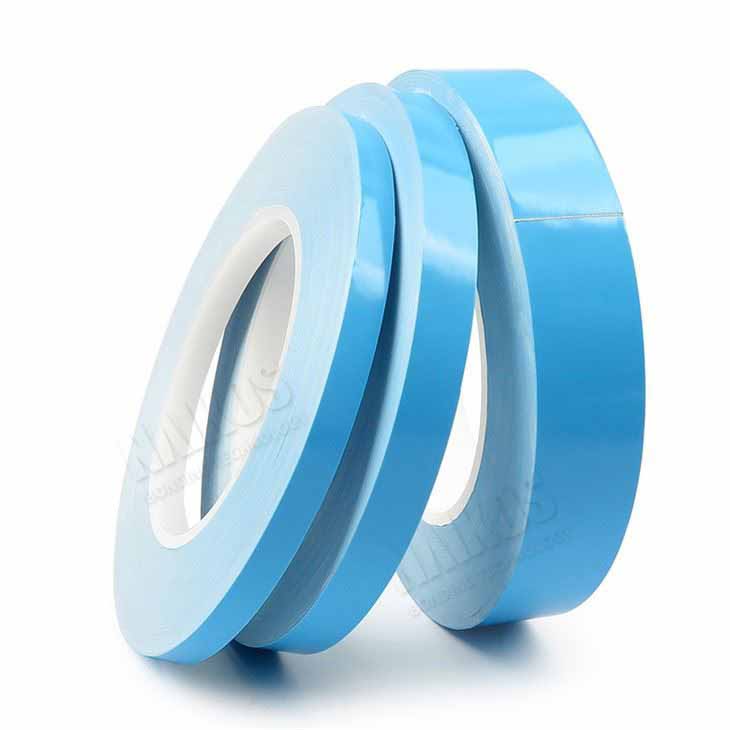

Led Electrical Insulating Thermal Tape

Led Electrical Insulating Thermal Tape

Thermal conductivity 1.2W/mk
Double sided adhesive, easy to operate
insulation, strong adhesive, flexibility, compression
Temperature Resistance: 80-120(℃)



Products Description

Led electrical insulating thermal tape is a gap filled with high-performance thermal conductivity material, mainly used in electronic devices and heatsinks or product transfer interface between the enclosure, bonding heat sinks, heat spreaders and other cooling devices to lC packages.

Led electrical insulating thermal tape has a good adhesive, is flexible, has good compression performance, and has excellent heat transfer capacity.

The thermal adhesive tape also has a certain degree of self-adhesive, compared to ordinary thermal insulation material in the product installation process has brought great convenience easy off, and is easy to operate.


Feature



  • Thermal conductivity 1.2W/MK

  • Double-sided adhesive, easy to operate

  • insulation, strong adhesive, flexibility, compression

  • Temperature Resistance: 80-120(℃)

  • Thermal tape prolongs the Led light, heatsink, and heat transfer devices' lifespan

PCB thermal conductive tape.jpg

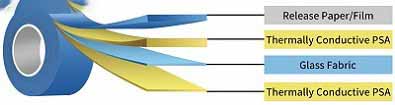

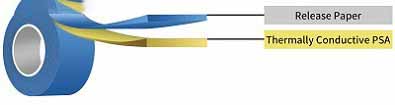

Product construction

structure thermally tapemodules heat conductive tape

Physical properties
ItemNKS-##NKS-##NTest Method

Carrier

Glass FabricN/A---

Adhesive

Thermally Conductive PSAThermally Conductive PSA---
Total thickness(mm)0.10~0.500.05~0.40ASTM D374
ColorWhiteWhiteVISUAL
Release LinerBlue PE FilmWhite Release PaperVISUAL

Adhesion (N/25mm)

12~1812~18PST-101

Thermal Conductivity(W/m-k)

1.21.2ASTM D22470

Voltage Resistance(KV/mm)

3.5~8.03.5~8.0ASTM D149

Temperature Resistance(Short Term, ℃/℉)

120(℃)

248(℉)

120(℃)

248(℉)

EN344

Standard width(mm)

2~1240(Customized Available)

Standard length(m)

25/50(Customized Available)
Application

  • Communication equipment; Mobile equipment


  • LED Light; Video equipment, Switching power supply


  • Networking equipment;


gap thermal tape.jpg



  •  Bock light model; Household appliances


  • Medical equipment; PC server/workstations Specifications


transfer tape.jpg


FAQ

Q1: Is that workable for a Led backlight?

 1). Yes, of course. Many customers use it in a way with excellent thermal conductivity.

Q2: Could you provide die-cut service?

 2). We are Manufactory, so die-cut thermally conductive tape into any shape and size is ok.

Q3: Can I get some free samples for the test?

 3). Yes, We are always glad to send the sample to our customer for the test, If we have it in stock, We'd like to send it to you for free. and you just pay the shipping fee for a free sample. Or kindly give us the courier account for sample expression.
