Best Double Sided Thermal Adhesive Tape For GPU

Best Double Sided Thermal Adhesive Tape For GPU

* Excellent thermal conductivity
* Flexible and conformable
* Easy to use
* Safe Good Heat Dissipation



Product Description

Best double-sided thermal adhesive tape for GPU plays an important role in both heat conduction and stickiness for important parts of electronics, especially in electronics, LED lighting industry, and LED TV field. Thermal adhesive tape is simple and convenient to use, which is conducive to improving production efficiency. Its heat dissipation effect is more obvious than that of ordinary heat dissipation stickers, which greatly improves the service life of components. Double-sided thermal tape is the first choice for some high-end electronic products that need heat conduction.

Feature

* Thermal tape for GPU provides efficient and equal heat dissipation with high electric insulation to prevent short circuits.

* Best thermal tape can be die-cut to any shape, you only need to cut the size according to your needs, then peel off the blue backing, and quickly and stably stick to the surface.

Product Construction

the construction of thermal tape
construction of thermal tape

Specification

Item NKS-## NKS-##N Test Method
Carrier Glass Fabric N/A ---

Adhesive

Thermally Conductive PSA Thermally Conductive PSA ---

Total thickness (mm)

0.10~0.50 0.05~0.40 ASTM D374

Color

White White VISUAL

Release Liner

Blue PE Film White Release Paper VISUAL

Adhesion (N/25mm)

12~18 12~18 PST-101

Thermal Conductivity(W/m-k)

1.2 1.2 ASTM D22470

Voltage Resistance(KV/mm)

3.5~8.0 3.5~8.0 ASTM D149

Temperature Resistance(Short Term,℃/℉)

120(℃)

248(℉)

120(℃)

248(℉)

EN344

Temperature Resistance(Long Term,℃/℉)

80(℃)

176(℉)

80(℃)

176(℉)

EN344
Standard width (mm) 2~1030(Customized Available)
Standard length (m) 25/50(Customized Available)

Notice: The above were reference values. For detailed information, please contact China Heat Resistant Tape.

Application

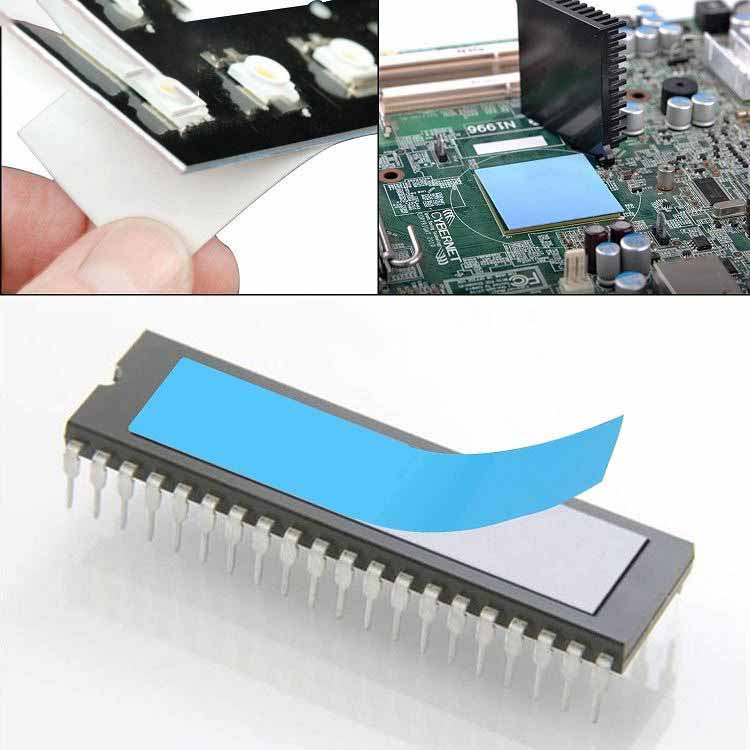

Best double-sided thermal adhesive tape for GPU can be tightly and firmly installed on heat source equipment and radiators. It is widely used to connect radiators,  to the CPU, high-power LEDs, video card RAM, DDR memory modules, SSD drives, etc.

thermal tape

The above data are obtained by the average value of the data obtained by our company after several tests according to the recognized detection methods. If customers have special requirements, please contact our company, we will provide you with further services.

How About Packaging?

1). Can be printed customer's logo on the paper core and cartons.

2). Normal packaging, special packaging as your request, such as individual shrink with logo card, barcode label.

3). OEM, Your company logo will be valid.
