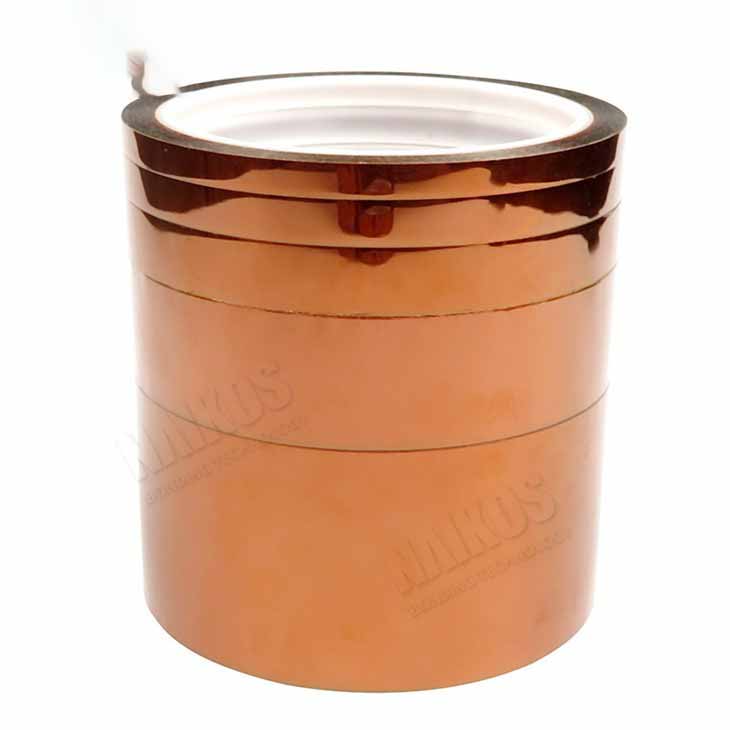

3M 92 Equivalent Brown Acrylic Adhesive Polyimide Tape

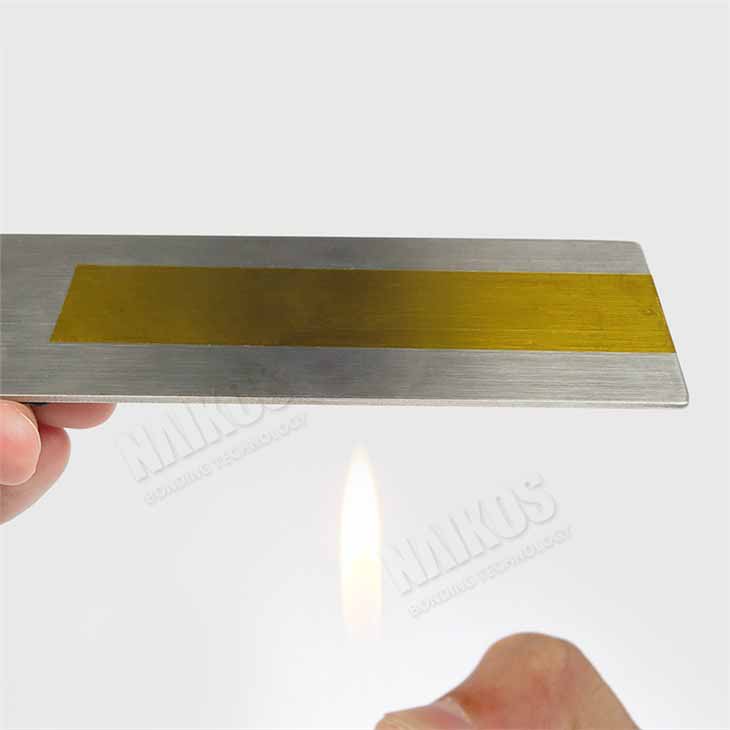

* High temperature, solvent resistant, stable and reliable
* Easy peel off no glue residue
* H-class insulation
* Suitable for PCB 3d printing and transformer insulation

Download

Product Details

Product Description

3M 92 Equivalent brown acrylic adhesive polyimide tape is made from high-quality polyimide film as the bottom material, and it enjoys characteristics of good anti-high temperature, and excellent mechanical property, with different anti-temperature grades by a different sticky agent.

Features

* Adhesive Coated Polyimide Film Tapes

* High temperature, solvent resistant, stable and reliable

* Easy peel off no glue residue

* H-class insulation

* Suitable for PCB 3d printing and transformer insulation

Application

* Etching

* Fiber Optics Cable

* High-temperature powder coating

* Semiconductor manufacturing

* Wave soldering during circuit board assembly

* Automotive sensor and manifolds

* Insulating circuit boards.

Construction

Single Side:

Polyimide Film

Silicone Adhesive

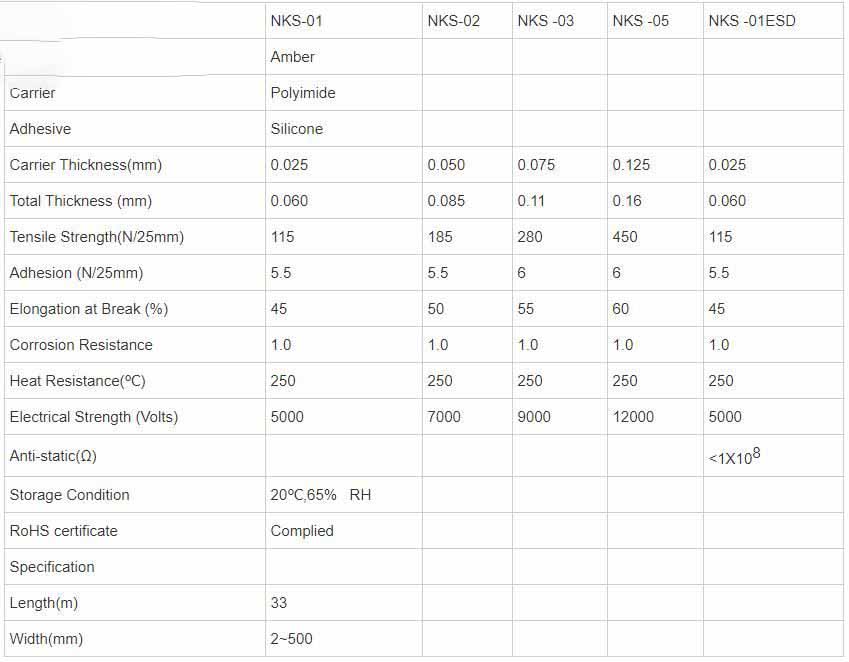

Physical Properties

Item	NKS-01	NKS-02	NKS -03	NKS -05	NKS -01ESD
Color	Amber
Carrier	Polyimide
Adhesive	Silicone
Carrier Thickness(mm)	0.025	0.050	0.075	0.125	0.025
Total Thickness (mm)	0.060	0.085	0.11	0.16	0.060
Tensile Strength(N/25mm)	115	185	280	450	115
Adhesion (N/25mm)	5.5	5.5	6	6	5.5
Elongation at Break (%)	45	50	55	60	45
Corrosion Resistance	1.0	1.0	1.0	1.0	1.0
Heat Resistance(℃)	250	250	250	250	250
Electrical Strength (Volts)	5000	7000	9000	12000	5000
Anti-static(Ω)					<1X10⁸
Storage Condition	20℃,65% RH
RoHS certificate	Complied
Specification
Length(m)	33
Width(mm)	2~500

These values are measured values and not guaranteed values.

Shelf Life

3M 92 Equivalent brown acrylic adhesive polyimide tape shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.

Available Sizes

Width: Maximum width 19.68 inches (500mm). (Can be Customized)

Length: 33m (Can be customized).

Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.

Applications

If you find our tapes interested, please fill the below blank space with your detailed requirements. China Heat Resistant Tape’s team would offer different solutions to you within 12 hours. Free samples are also available.
