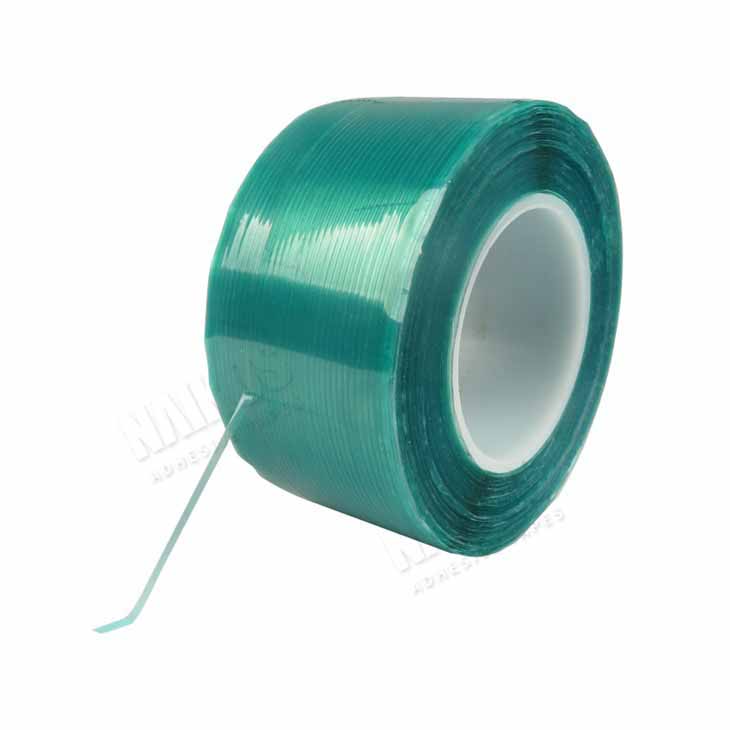

Spool Roll PET Tape

Spool Roll PET Tape

* High temperature protection.
* Insulation / Lithium battery extremely car fixed
* Transform coil wrapping and fixed
* Chip insetting.
* 3D printer



Product Description

Spool roll PET tape consists of a polyester film backing, single side coated with silicone adhesive. PET tape is designed to perform difficult masking operations such as the masking of surfaces during the application of durable powder coating.

Feature

* PET film tape is easy to apply and remove and leaves no residue on the surface

* Green pet tape has good viscosity, good serviceability, high temperature, and excellent electrical properties.

* Excellent initial adhesion and adhesion; no glue residue, no edge warping, no shedding after baking; solvent resistance; acid and alkali resistance; long-term temperature resistance of 220 ℃

Construction

Polyester Tape

Physical Properties

Item

NKS-3565SIG

NKS-5080SIG

NKS-2560SIG

NKS-2590SIG

Color

Clear/Green/Blue

Clear/Green/Blue

Clear/Green/Blue

Red/Yellow

Carrier

Polyester

Polyester

Polyester

Polyester

Adhesive

Silicone

Silicone

Silicone

Silicone

Carrier Thickness (mm)

0.035

0.05

0.025

0.025

Adhesive Thickness

 (mm)

0.025

0.03

0.035

0.065

Total Thickness (mm)

0.06

0.08

0.060

0.09

Adhesion (N/25mm)

6

6

6

8

Tensile Strength

 (N/25mm)

135

220

115

135

Elongation at Break (%)

40

50

35

35

Corrosion Resistance

1

1

1

1

Storage Condition

20℃,65RH

20℃,65RH

20℃,65RH

20℃,65RH

Long Term Heat

 Resistance (℃)

180

180

180

180

Short Term Heat

Resistance (℃)

220

220

220

220

RoHS

Complied

Width

2~980mm

Length

33m/66m

These values are measured values and not guaranteed values.

Production Process

high heat insulation tape.jpg
high-temperature heat insulation tape.jpg
Heat Proof Adhesive Tape.jpg

Application

Spool roll PET tape is used for converting, masking adhesive seams in metal bonding processes, anodizing, electronic assembly, masking, plating, photo splicing, sublimation printing, shipping, packaging, when painting cerakote or the back of automotive wheels, and many more uses at home, business or laboratory.

PET tape.jpg

Shelf Life

Product shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.

Our Services

Customers would be provided with the below services if they are interested in our products.

A. Customized orders like different cutting sizes and die-cutting designs are all available.

B. Professional recommendations on tape choice for customers.

C. Free samples are available.

D. Competitive prices.

E. In-time delivery.

F. Quality assurance.
