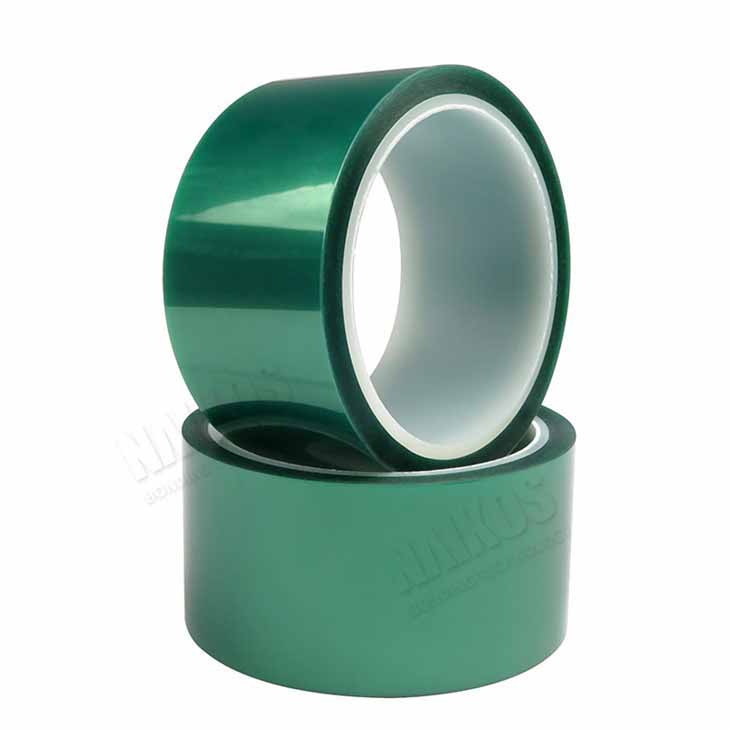

Polyester High Temp Tape For Powder Coating Masking

Polyester High Temp Tape For Powder Coating Masking

* Powder coating protection
* Paint spray protection
* Ordinary surface protection
* 3D printing



Product Description

Polyester high temp tape for powder coating masking is used for PCB masking and other high-temperature The color is green. Good viscosity, good serviceability, high temperature, excellent electrical properties.

Polyester high temp tape for powder coating masking It has the characteristics of Insulation, Strong tensile strength. Multi colors for choice, Suitable for transformer, capacitor, and other electronic components, ordinary surface powder coating paint spray protection,3D printing.

Features

* Multi colors for choice

* Insulation

* Suitable for transformer, capacitor, and other electronic components.

* Strong tensile strength

* High temp tape for powder coating

Construction

Polyester Film

Silicone Adhesive

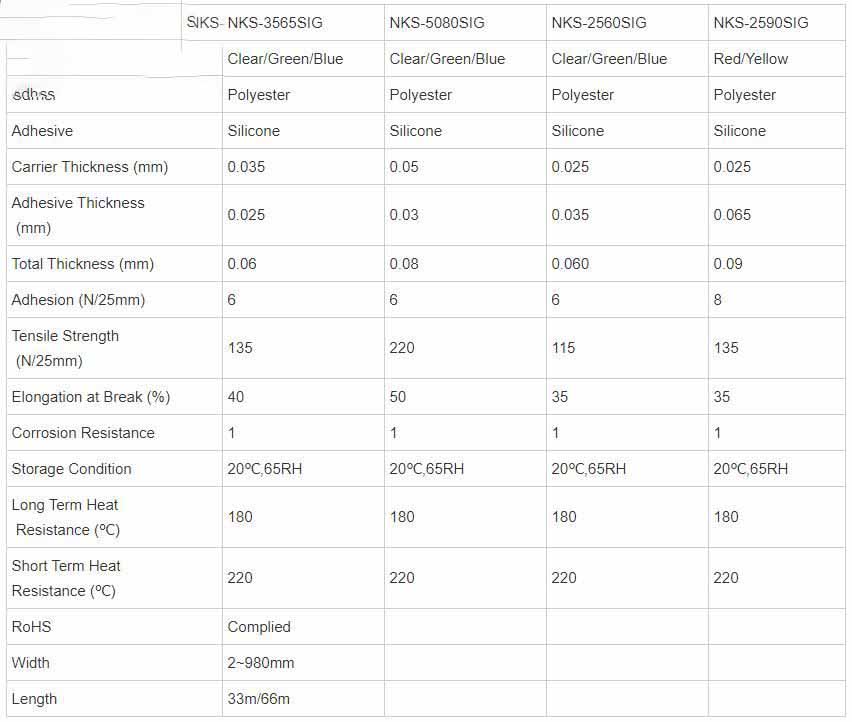

Physical Properties

Item

NKS-3565SIG

NKS-5080SIG

NKS-2560SIG

NKS-2590SIG

Color

Clear/Green/Blue

Clear/Green/Blue

Clear/Green/Blue

Red/Yellow

Carrier

Polyester

Polyester

Polyester

Polyester

Adhesive

Silicone

Silicone

Silicone

Silicone

Carrier Thickness (mm)

0.035

0.05

0.025

0.025

Adhesive Thickness

 (mm)

0.025

0.03

0.035

0.065

Total Thickness (mm)

0.06

0.08

0.060

0.09

Adhesion (N/25mm)

6

6

6

8

Tensile Strength

 (N/25mm)

135

220

115

135

Elongation at Break (%)

40

50

35

35

Corrosion Resistance

1

1

1

1

Storage Condition

20℃,65RH

20℃,65RH

20℃,65RH

20℃,65RH

Long Term Heat

 Resistance (℃)

180

180

180

180

Short Term Heat

Resistance (℃)

220

220

220

220

RoHS

Complied




Width

2~980mm




Length

33m/66m




These values are measured values and not guaranteed values.

Shelf Life

Product shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.

Available Sizes

Width: Maximum width 38.58 inches (980mm). (Can be Customized)

Length: 33m/66m (Can be customized).

Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.

Packing

clear heat resistant tape.jpg
powder coating tape.jpg

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

If you find our High temp tape for powder coating, green polyester tape interested, please fill the below blank space for your detailed requirements. China Heat Resistant Tape’s team would offer different solutions to you within 12 hours. Free samples are also available.
