* Strong adhesion
* Flexibility, conformability
* High-temperature resistance
* Various thicknesses for choice
* Peeled off without leaving an adhesive

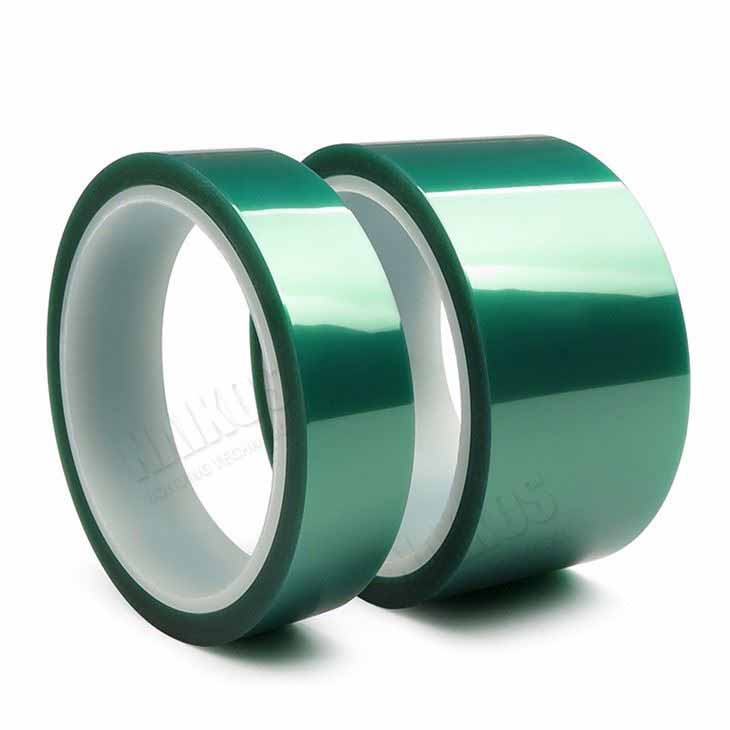

Product Description
Heat Resistant with silicone polyester adhesive film tape is PET film backing with a silicone adhesive, designed to perform in difficult masking operations such as various phases of production or masking of surfaces during the application of durable powder coatings.
Application
* Anodizing | * Electronic Assembly |
* General Purpose Masking | * Masking Electronic Components |
* Powder Coating | * Plating |
* Photo Splicing | * Shipping and Packaging |
Features
* Strong adhesion
* Flexibility, conformability
* High-temperature resistance
* Various thicknesses for choice
* Peeled off without leaving an adhesive
Construction
Polyester Film Silicone Adhesive |

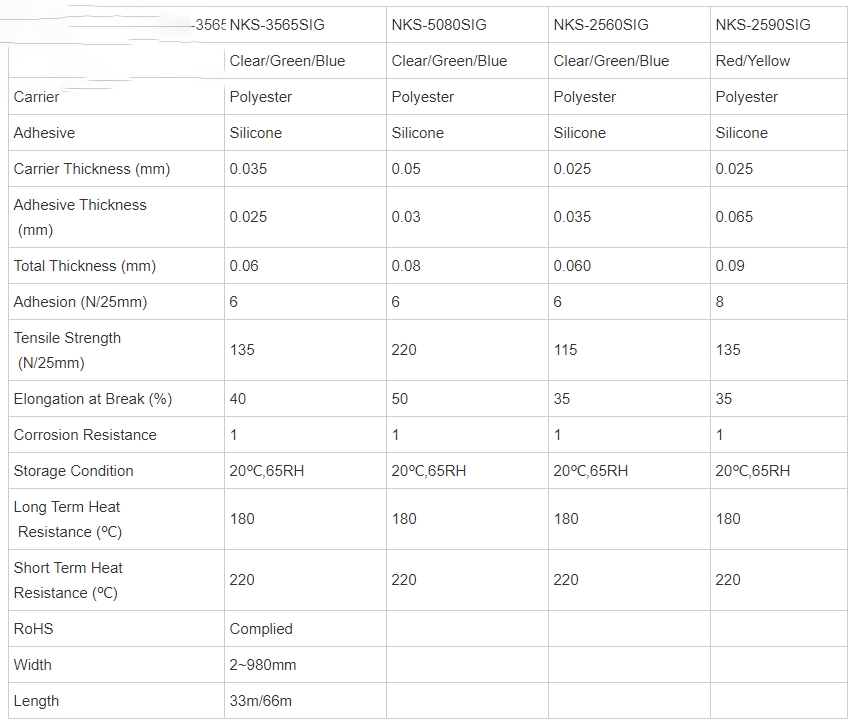

Physical Properties
Item | NKS-3565SIG | NKS-5080SIG | NKS-2560SIG | NKS-2590SIG |
Color | Clear/Green/Blue | Clear/Green/Blue | Clear/Green/Blue | Red/Yellow |
Carrier | Polyester | Polyester | Polyester | Polyester |
Adhesive | Silicone | Silicone | Silicone | Silicone |
Carrier Thickness (mm) | 0.035 | 0.05 | 0.025 | 0.025 |
Adhesive Thickness (mm) | 0.025 | 0.03 | 0.035 | 0.065 |
Total Thickness (mm) | 0.06 | 0.08 | 0.060 | 0.09 |
Adhesion (N/25mm) | 6 | 6 | 6 | 8 |
Tensile Strength (N/25mm) | 135 | 220 | 115 | 135 |
Elongation at Break (%) | 40 | 50 | 35 | 35 |
Corrosion Resistance | 1 | 1 | 1 | 1 |
Storage Condition | 20℃,65RH | 20℃,65RH | 20℃,65RH | 20℃,65RH |
Long Term Heat Resistance (℃) | 180 | 180 | 180 | 180 |
Short Term Heat Resistance (℃) | 220 | 220 | 220 | 220 |
RoHS | Complied | |||
Width | 2~980mm | |||
Length | 33m/66m |
These values are measured values and not guaranteed values.
Shelf Life
Heat Resistant with silicone polyester adhesive film tape shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.
Available Sizes
Width: Maximum width 38.58 inches (980mm). (Can be Customized)
Length: 33m/66m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
