High Temp PI Tape

Feb 23, 2024

Products Description

NKS series polyimide tape consisting of a polyimide film backing, single side coated with silicon adhesive.

Polyimide tape for sublimation with high properties, such as can withstand up to 260 ℃. Heat tape protects electronic products, electric motors, painting, packing fixing, and printing PCB board.

Feature

* Polyimide tape for sublimation and peeled off without leaving an adhesive residue.

* Heat transfer tape can withstand up to 260 ℃.

* Class H insulation.

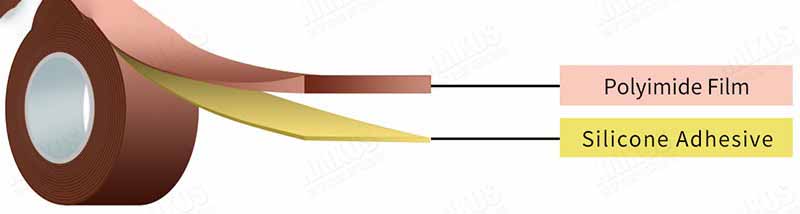

Products Construction

heat tape

Physical Properties

Item	NKS- 0115K	NKS- 0125-KT	NKS- 0135KT	NKS- 0230KT	NKS- 0335KT	NKS- 0450KT	NKS-01ESD
Color	Amber	Amber	Amber	Amber	Amber	Amber	Amber
Carrier	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide
Adhesive	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone
Carrier Thickness (mm)	0.025	0.025	0.025	0.05	0.075	0.125	0.025
Total Thickness(mm)	0.040	0.050	0.060	0.080	0.11	0.16	0.060
Tensile Strength (N/25mm)	160	100	115	185	280	450	115
Adhesion (N/25mm)	3	5.0	5.5	5.5	6	6	5.5
Corrosion Resistance	1.0	1.0	1.0	1.0	1.0	1.0	1.0
Temperature Resistance(℃)	-20℃-+260℃
Width(mm)	2~500(Custom Slit Available)
Length(m)	33m/66m

Application

* High-temperature tape is mainly used for the adhesion and class H insulation of electronic switches, motors, transformers, relays, wires, coils, capacitors, lithium batteries, etc

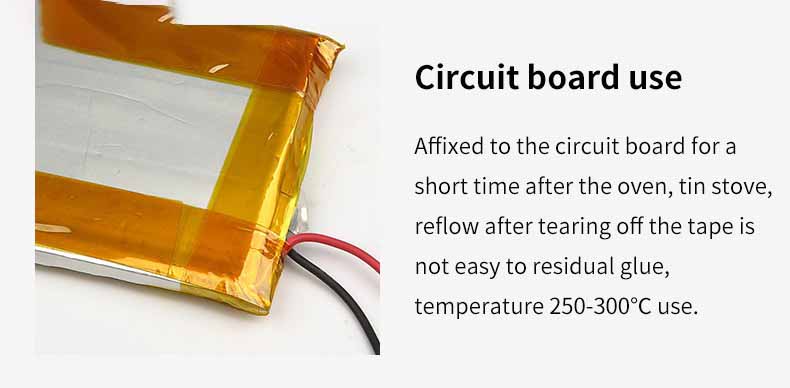

* Heat tape is compatible with a wide temperature range of up to 260℃ (500℉). The heat press tape protects electronic products, electric motors, painting, packing fixing, and printing PCB board.

* Heat transfer tape is made of polyimide film with silicone adhesive, providing superior performance and easy sticking. The heat-resistant and strong silicone adhesive makes the heat transfer tape easy to stick and no residue after peeling off. It can be used in a very wide range of composite high-temperature applications.

polyimide tape

heat tape

Thermal Tape

FAQ

Q1: Are you a trade company or manufacturer?

A1: Manufacturer, China Heat Resistant Tape, Inc. is an adhesive tape overall solutions to suppliers, with over 15 years of experience in the Tape Field.

Q2: Can you print our logo or do special packaging?

A2: We can print the customer's logo on the tape and paper core and cartons.

We can do any special packaging as required, such as individual shrink with logo card, barcode label, blister card, or any request.

Q3: If I want a special shape and size, does it okay?

A3: Yes, we can provide OEM service.

Q4: How can we get a detailed price list?

A4: Please offer us detailed information about the product, such as size (length, width, thickness), Usage, specific packaging requirements, and purchasing quantity.
