High Temp Green Polyester Tape

Feb 23, 2024
Products Description

NKS series polyester tape consisting of a polyester film backing, single side coated with silicon adhesive.

Green Polyester Tape for powder coatings with high properties, such as can withstand up to 220 ℃, good viscosity, and excellent electrical properties. Which is ideal for painting, powder coating, anodizing, and circuit boards.



Feature

* Green polyester tape for powder coating and peeled off without leaving an adhesive residue.

* Flexible and conformable: used for spraying, gold plating, electroplating, aluminum anodizing, circuit boards, etc.

* High temperature resistance: Green PET tape can withstand up to 180 ℃.



Product Construction

Polyester Tape



Physical Properties



Item

NKS-1512PTS NKS-1517PTS NKS-0230PTS NKS-0250PTS
Carrier Polyester Polyester Polyester Polyester

Adhesive

Silicone Silicone Silicone Silicone

Carrier Thickness(mm)

0.035 0.035 0.05 0.055

Adhesive Thickness(mm)

0.015 0.025 0.03 0.045

Total Thickness(mm)

0.05 0.06 0.08 0.1

Tensile Strength (N/25mm)

135 115 220 135

Adhesion(N/25mm)



6 6 6 8

Elongation at Break(%)



40 35 50 35

Corrosion Resistance

1.0 1.0 1.0 1.0

Storage Condition

20℃, 65RH 20℃, 65RH 20℃, 65RH 20℃, 65RH

Long Term Heat Resistance (℃)

180 180 180 180

Short Term Heat Resistance (℃)

220 220 220 220

Color

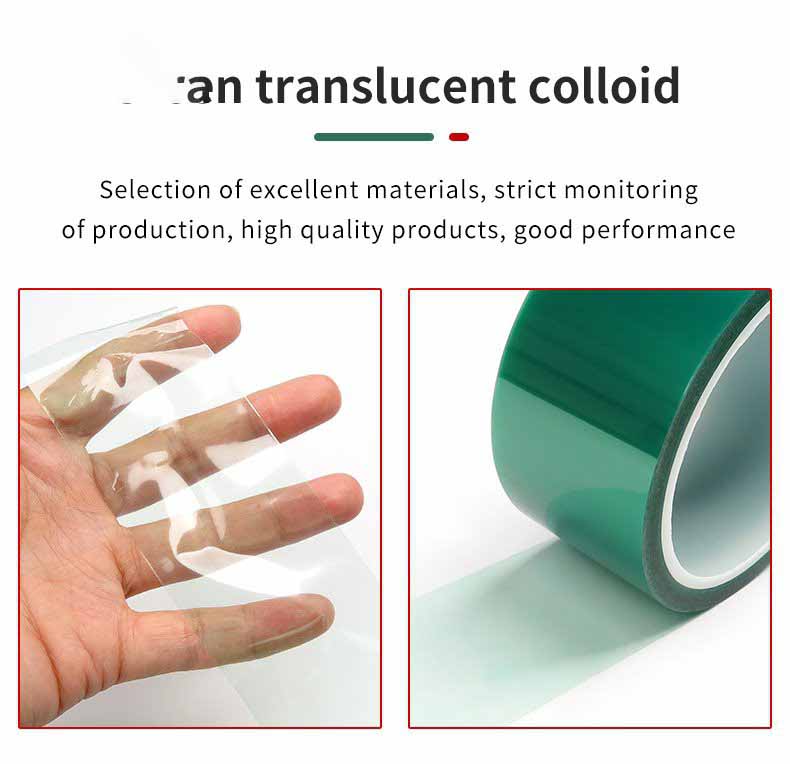

Clear / Green/ Blue

Width(mm)

2-980 (Custom Slit Available)

Length(m)

33  / 66
Application

* High-temperature PET green tape is mainly used for epoxy resin craft, PCB board for high-temperature masking, PCB board for baking tin and gold-plating masking, LED dot matrix block, digital tube, electrical LED display panel, and another high-temperature masking.

*Green polyester tape can withstand up to 180℃ for half an hour which is suitable for craft projects that require heat-resistant tape. It can be used as a masking tape and photo-splicing tape.

*Green polyester tape is made of PET film with silicone adhesive with moderate viscosity, which can be used in a very wide range of composite high temperature applications.

Green Heat Resistance Sublimation Tape

PETtape

tapepet

FAQ

Q1: Are you a trade company or manufacturer?

A1: Manufacturer, China Heat Resistant Tape, Inc. is an adhesive tape overall solutions to suppliers, with over 15 years of experience in the Tape Field.

Q2:Can I visit your factory?

A2: Yes, you can. Welcome to visit our factory at any time

Q3: Can you print our logo or do special packaging?

A3: We can print the customer's logo on the tape and paper core and cartons.

We can do any special packaging as required, such as individual shrink with logo card, barcode label,  blister card, or any request.

Q4: If I want a special shape and size, does it okay?

A4: Yes, we can provide OEM service.

Q5: How can we get a detailed price list?

A5: Please offer us detailed information about the product, such as size (length, width, thickness), color, specifications, Usage, specific packaging requirements, and purchasing quantity.
