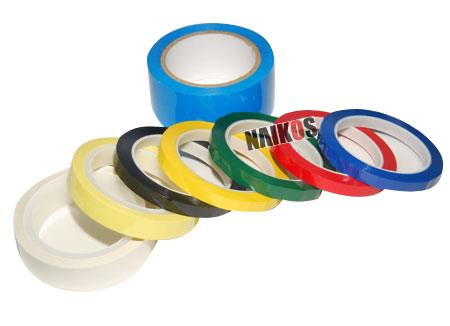

Mylar Adhesive Tape For Electric Insulation
* Superior dimension stability.
* Superior heat resistance.
* Good processability.
Product Details
Product Description
Mylar adhesive tape for electric insulation is made of polyester film as backing and a single side coated with acrylic adhesive. is used for outer/interlaminar insulation of transformers and coils, also used for a soft bag of the lithium battery bandage, such as in the protection board and the bandage between the batteries, then play a fixed role of fire insulation.
Features
* Superior electrical insulation.
* Superior dimension stability.
* Superior heat resistance.
* Good processability.
Application
Mylar adhesive tape for electric insulation is mainly used for Electrical insulation of transformers and coils. High-voltage isolation between the motherboard circuit and the enclosure of the switching power supply.
Available Color
Green, Red, Yellow, Clear, Blue...
Construction
Physical Properties
Item | ||
Carrier | Polyester Film | |
Adhesive | Acrylic | |
Filling | Halogen-Free Pigment | |
Carrier Thickness | 0.025mm | 0.05mm |
Total Thickness | 0.055mm | 0.08mm |
Peel Strength Power | ≥44 N/10mm | ≥88 N/10mm |
180°Peeling Strength | ≥300 N/M | |
Elongation | ≥80% | ≥50% |
Dielectric Breakdown | ≥5.0KV | ≥6.5KV |
Heat Resistance | 150℃ | |
Cold Resistance | ≤-10℃ | |
Solvent Resistance | Ok | |
Flame Retardant | UL 510 |
Our advantages
1. Low MOQ
2. OEM and ODM services available.
3. Factory sale directly with much competitive price.
4. Good Quality Control. There are 3 times quality checking before delivery.
5. Free samples are available. Even customized die-cut parts are also available. We guarantee that the samples and mass production tapes would be satisfied.
6. All of the customers’ samples/orders would be recorded and maintained in secrecy. Customers can re-order with convenience and satisfaction.
China Heat Resistant Tape Industrial is one of the excellent manufacturers and suppliers of yellow mylar tape, and mylar insulation tape in China, which is equipped with a professional factory and advanced equipment. We aim to provide you with high-quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at a competitive price.
