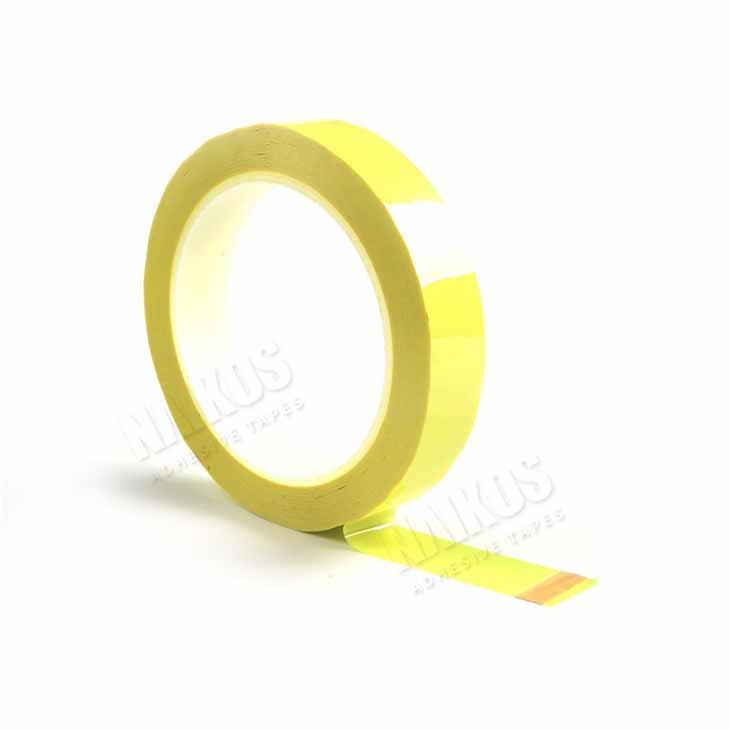

Polyester Acrylic Adhesive Tape For Cable Insulation

Polyester Acrylic Adhesive Tape For Cable Insulation

* Good holding power
* Chemical resistance
* High-temperature resistance
* Polyester tape with acrylic adhesive



Product Description

Polyester acrylic adhesive tape for cable insulation is made of polyester film tape, single side coated with acrylic adhesive.

Feature

* Good holding power

* Chemical resistance

* High-temperature resistance

* Polyester tape with acrylic adhesive

Application

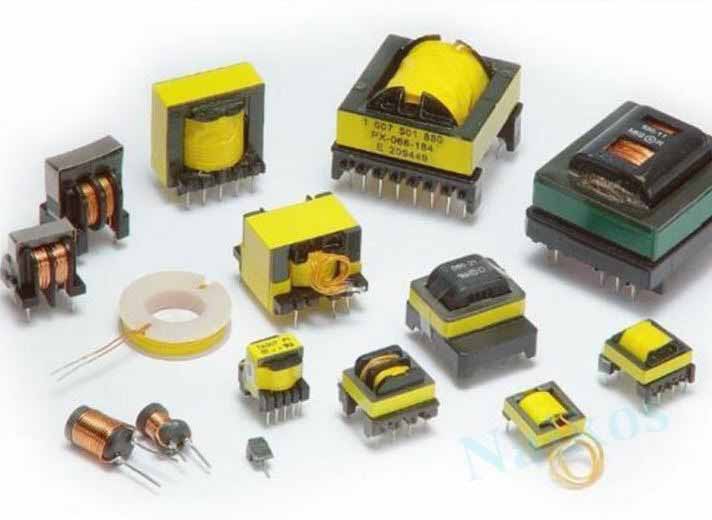

Polyester acrylic adhesive tape for cable insulation winding of transformer, coil, capacitor, and electric wire, decorative striping, edging off a wide variety of surfaces, can be used as a sensing tape where automatic equipment is used in sorting, counting, or identifying roll splices and end of rolls.

mylar adhesive tape

Construction

Polyester Adhesive Tape.png

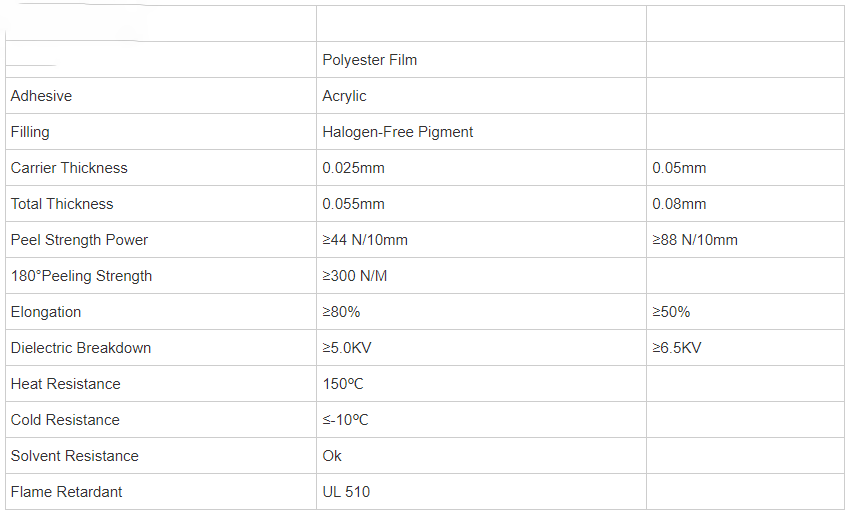

Physical Properties

Item



Carrier

Polyester Film


Adhesive

Acrylic


Filling

Halogen-Free Pigment


Carrier Thickness

0.025mm

0.05mm

Total Thickness

0.055mm

0.08mm

Peel Strength Power

≥44 N/10mm

≥88 N/10mm

180°Peeling Strength

≥300 N/M


Elongation

≥80%

≥50%

Dielectric Breakdown

≥5.0KV

≥6.5KV

Heat Resistance

150℃


Cold Resistance

≤-10℃


Solvent Resistance

Ok


Flame Retardant

UL 510


These values are measured values and not guaranteed values.

Available Sizes

Width:Maximum width 1270mm.(Can be Customized)

Length:66m(Can be customized).

Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative

Packaging

We can provide different kinds of packaging according to customers' requests, such as labeling, barcode, individual packing, and mailbox packing, you can give us your instruction, and we will follow up on your requests.
