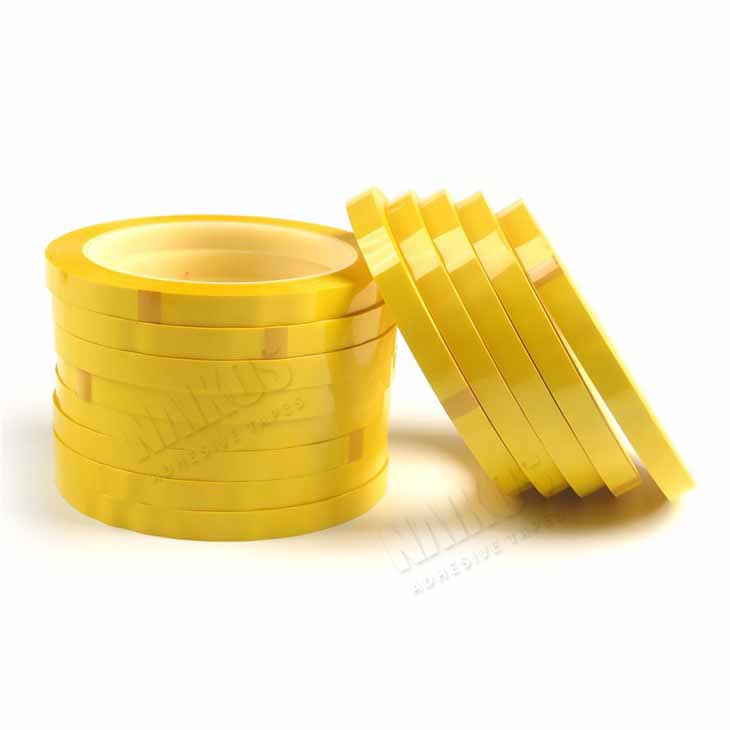

Polyester Mylar Insulation Tape

Polyester Mylar Insulation Tape

* Heat resistance
* Voltage resistance
* Good insulative
* Flame retardancy



Product Description

Polyester Mylar insulation tape is made of polyester film tape, single side coated with acrylic adhesive.

This polyester mylar insulation tape Heat Resistant, Flame-Retardant, and High-Temperature Insulation Adhesive Tape is a high-quality product that is ideal for a wide variety of applications and projects.

Features

* Heat resistance

* Voltage resistance

* Good insulative

* Flame retardancy

Application

Mylar insulation tape is widely used in switch of computer and TV machines, cameras, emergency lamps,energy-saving lamps,micro-engine, capacitors, and kinds of wire roll and insulation bonding of power electric high and low-frequency transformers.

Construction

Mylar Insulation Tape.png

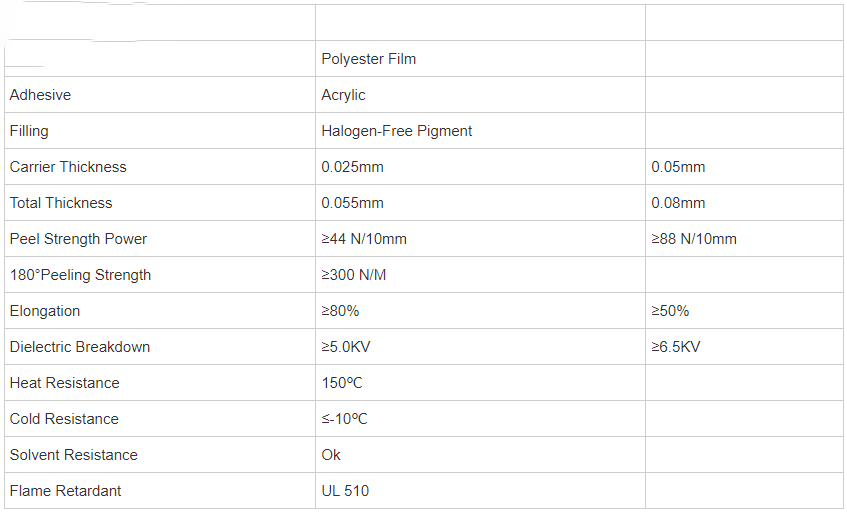

Physical Properties

Item



Carrier

Polyester Film


Adhesive

Acrylic


Filling

Halogen-Free Pigment


Carrier Thickness

0.025mm

0.05mm

Total Thickness

0.055mm

0.08mm

Peel Strength Power

≥44 N/10mm

≥88 N/10mm

180°Peeling Strength

≥300 N/M


Elongation

≥80%

≥50%

Dielectric Breakdown

≥5.0KV

≥6.5KV

Heat Resistance

150℃


Cold Resistance

≤-10℃


Solvent Resistance

Ok


Flame Retardant

UL 510


These values are measured values and not guaranteed values.

Available Sizes

Width:Maximum width 1270mm.(Can be Customized)

Length:66m(Can be customized).

Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative

Our Services

Customers would be provided with the below services if they are interested in our products.

A. Customized orders like different cutting sizes and die-cutting designs are all available.

B. Professional recommendations on tape choice for customers.

C. Free samples are available.

D. Competitive prices.

E. In-time delivery.

F. Quality assurance.
