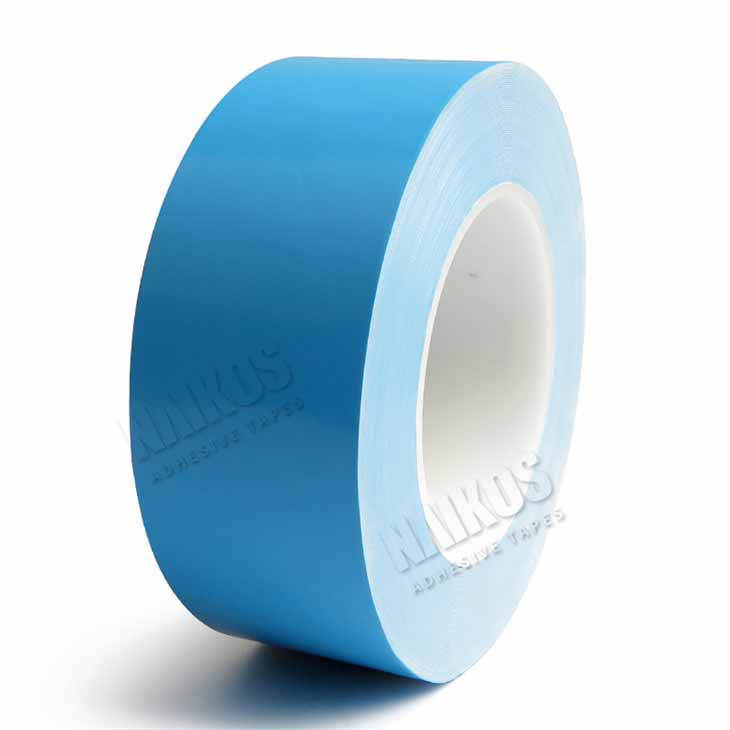

Double Sided Heat Tape
Flexible and conformable Ideal for uneven surfaces
Stable and economical with different thicknesses and constructions
Product Details
Products Description
Double sided heat tape is made of advanced thermal conductive PSA. With Thermal conductivity, strong stickiness, softness, Insulation, Non-conductive, wear-resistant, fire-retardant, compression, buffering, no damage to metal materials, etc features.
Double sided heat tape can fill uneven surface, tightly and firmly fit the heat source devices and heat sink, Has strong adhesive strength, and effectively replace grease and mechanical fixation, A large number of applications in bonding heat sink to microprocessor and other power consumption of the semiconductor.
Product Feature
Excellent Performance:
Thermally conductive sticky tape has super stickiness and can firmly fix the heatsinks to the heating element, effectively improving the heat transfer between electronic components. (substitute screws, rivets, welds, fastener, and liquid glue)High Durability:
Thermal duct tape has extremely stable performance, durable adhesion on both sides, no residual glue, and can work for a minimum of 5 years in a high-temperature environment of 80-150°C. ( If combined with heat conduction paste or cooling silica gel pad, the effect will be better )
Products Construction
Products Properties
Item | NKS-## | Test Method |
Carrier | Glass Fabric | --- |
Adhesive | Thermally Conductive PSA | --- |
Total thickness(mm) | 0.10~0.50 | ASTM D374 |
Color | White | VISUAL |
Release Liner | Blue PE Film | VISUAL |
Adhesion (N/25mm) | 12~18 | PST-101 |
Thermal Conductivity(W/m-k) | 1.2 | ASTM D22470 |
Voltage Resistance(KV/mm) | 3.5~8.0 | ASTM D149 |
Temperature Resistance(Short Term, ℃/℉) | 120(℃) 248(℉) | EN344 |
Standard width(mm) | 2~1240 (Customized Available) | |
Standard length(m) | 25/50 (Customized Available) |

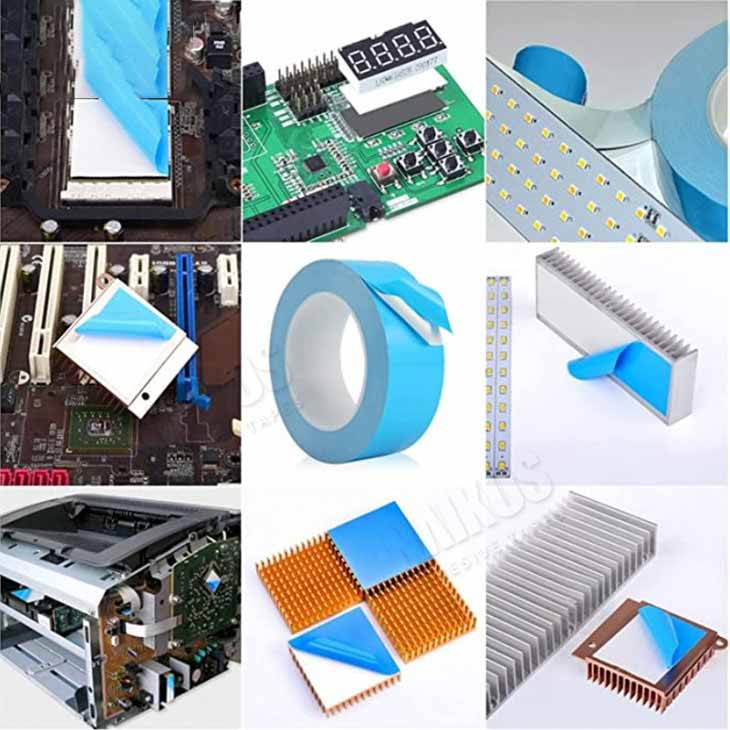

Products Application
Security Application:
The heat dissipation tape is insulative and non-conductive, which eliminates any risks of causing a short circuit, adding more protection to the CPU, GPU, VGA cards, HDD, SSD drive, VRAM, M2 hard disk, Water cooling kit, Laptop, PCB, IGBT, Mos tubes, Diode, Triode, Circuit board, Logic board, Raspberry pi, LED cooler, 3D printer
Widely Applications:
Heavy duty two sided stick tape can be used for attaching aluminum/copper heat sinks to the heating elements, fixing the carpet to prevent sliding, pasting posters and photos, mounting road signs & decoration graphics, and woodworking activities such as splicing, machine cutting, CNC woodworking, routing, and anchoring.
FAQ
Q1: You are a factory or trading company?
A1: We are a manufactory.
Q2: What about the lead time?
A2: Sample needs2-3days. mass production time needs 1 week for an order quantity of more than 5000 rolls
Q3: Do you have any MOQ limit for the board?
A3: 200 rolls
Q4: How do you ship the goods and how long does it take to arrive?
A4: We usually ship by UPS, FedEx, or DHL. It usually takes 7-10 days to arrive. Airline and sea shipping is also optional.
Q5: How to proceed with an order?
A5: Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for the formal order. Fourthly We arrange the production.
Q6: Is it OK to print my logo on the product?
A6: Yes. Please inform us formally before our production and confirm the design first based on our sample.
Product Construction
Products Properties
Item | NKS-## | Test Method |
Carrier | Glass Fabric | --- |
Adhesive | Thermally Conductive PSA | --- |
Total thickness(mm) | 0.10~0.50 | ASTM D374 |
Color | White | VISUAL |
Release Liner | Blue PE Film | VISUAL |
Adhesion (N/25mm) | 12~18 | PST-101 |
Thermal Conductivity(W/m-k) | 1.2 | ASTM D22470 |
Voltage Resistance(KV/mm) | 3.5~8.0 | ASTM D149 |
Temperature Resistance(Short Term, ℃/℉) | 120(℃) 248(℉) | EN344 |
Standard width(mm) | 2~1240 (Customized Available) | |
Standard length(m) | 25/50 (Customized Available) |
