Copper foil heat resistant tape EMI shielding is made from high-quality copper foil as backing and single side coated with conductive or nonconductive acrylic pressure-sensitive adhesive.
This Copper foil heat-resistant tape EMI shielding is designed for a variety of applications: point-to-point electrical contact, EMI/RFI shielding, grounding, and static charge draining. These tapes can be used in both electronic & electrical devices, shielded rooms, and EMI test laboratories for prototyping, design, and troubleshooting.
Features
1) High heat and electric conductivity
2) Excellent ductility and corrosion resistance
3) Accord with ROHS standard
Application
1. Single conductive and double conductive
2. Eliminate the effect of EMI
3. Avoid unnecessary current and voltage
4. Ideal for transformer, mobile phone, computer, PDA, PDP, LCD monitor, PC, copier, etc.
5. Self-adhesive copper foil tape used in fridges, air conditioners, automotive, bridges, hotels, electronic industry, etc.
Construction
Copper Foil
Conductive Adhesive
White Release Paper

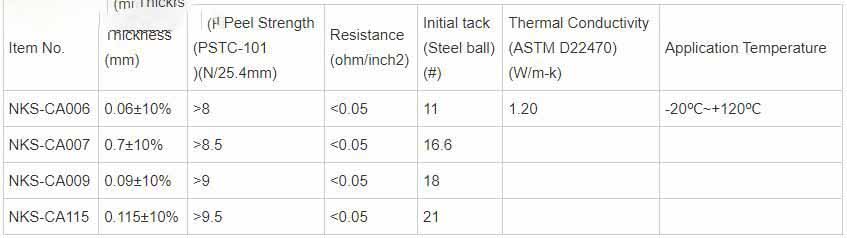

Physical Properties
Item No.
Thickness
(mm)
180°Peel Strength
(PSTC-101
)(N/25.4mm)
Resistance
(ohm/inch2)
Initial tack
(Steel ball)
(#)
Thermal Conductivity
(ASTM D22470)
(W/m-k)
Application Temperature
NKS-CA006
0.06±10%
>8
<0.05
11
1.20
-20℃~+120℃
NKS-CA007
0.7±10%
>8.5
<0.05
16.6
NKS-CA009
0.09±10%
>9
<0.05
18
NKS-CA115
0.115±10%
>9.5
<0.05
21
These values are measured values and not guaranteed value.
Shelf Life
Copper foil shielding tape shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.
Available Sizes
Width: Maximum width 380mm. (Can be Customized)
Length: 50m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
China Heat Resistant Tape Industrial is one of the excellent manufacturers and suppliers of EMI shielding tape, copper EMI shielding tape in China, which is equipped with a professional factory and advanced equipment. We aim to provide you with high-quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at a competitive price.
