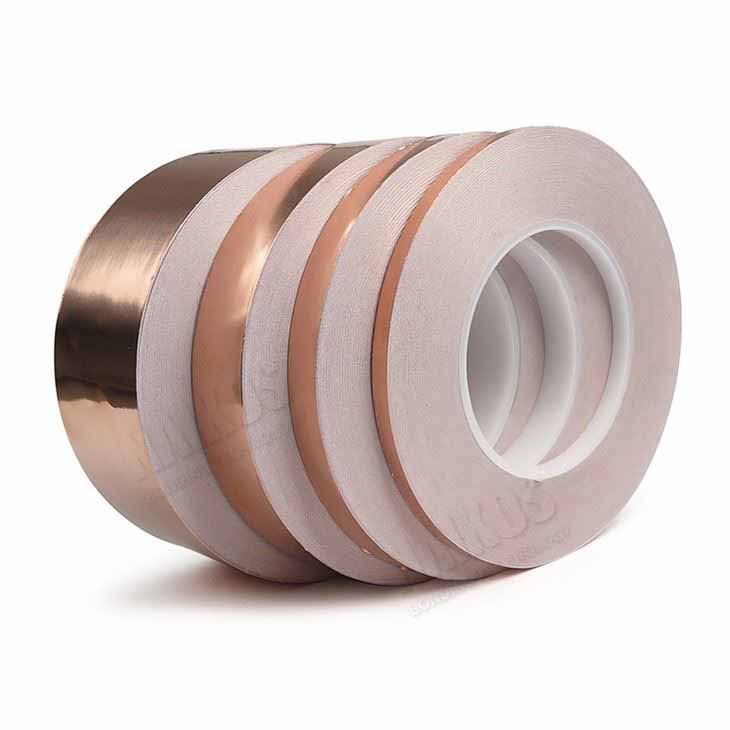

Non-conductive copper foil adhesive tape for EMI shielding is made of soft copper foil as backing material and single side coated with non-conductive acrylic adhesive.
Features
* Good adhesion to glass and solders
* Smooth surface
* Waterproof, flame retardant
* Stable shielding effect
* Easy to tear apart
Application

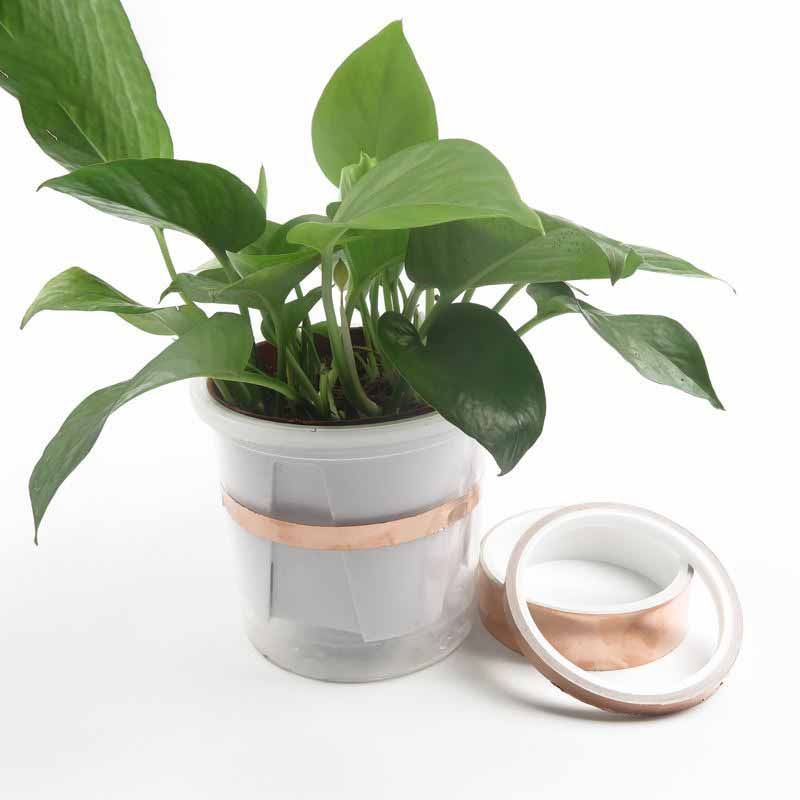

Non-conductive copper foil adhesive tape for EMI shielding is widely used in stained glass making and is ideal for stained glass and decorative applications.It also acts as a barrier to movement by slugs and snails, to protect plants from damage by slugs and snails.
Construction
Physical Properties
Item
Unit
Value
Note
180°Peeling Strength
Kg/.inch
≥0.8
25°,2kg/in cohered,300mm/minute peeling
Backing
Material
%
99.95
Cu
Backing
Thickness
mm
0.035±0.002
Adhesive
Acrylic
Adhesive Thickness
mm
0.035+0.005
Total Thickness
mm
0.07
Holding Power
minute
≥1440
2kg/inch,to SUS304Plate
Surface Impedance
Ω/inch
≤0.05
25.4mm*25.4mm Mitsubishi LO
Shielding Effectiveness
DB
55~88
100MHz-1000MHz
Heat Resistance
℃
-10 to 120
Tensile Strength
kg/mm
5
Elongation
%
6~7
Adhesion
kg/25mm
1.5
Insulating Resistance
/
Adhesive
Acrylic Pressure Sensitive Adhesive
Solvent
Ethyl Acetate
Viscosity
(BROOKFIELD LVF NO.4.@25℃)9000+1000 CPS
Solid Content
(150℃15Min)401%
Conductive Content
Silver, Nickel, Cu
Initial Tack
(J.DOW METHOD)1.5kg/25mm
Long Term Adhesion
(PSTC-7)1440 Min/inch
Heat Resistance
'-10℃-120℃
Conductivity
0.03~0.06 onms/sg in(≦0.2ohmshsq inch at 1Kg)
Note: The above technical information and data should be considered representative or typical only and should not be used.
Available Sizes
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
Packaging
We can provide different kinds of packaging according to customers' requests, such as labeling, barcode, individual packing, and mailbox packing, you can give us your instruction, and we will follow up on your requests.
China Heat Resistant Tape Industrial is a professional-friendly copper foil tape manufacturer, established in2012. We mainly produce EMI shielding tape, thermal double-sided tape, copper tape, etc. With a good quality product and nice price&service, we have successfully expanded our market throughout Europe, North America, Latin America, the Middle East, and the Asia-Pacific region. Wish you will be our next long-term cooperation customer.
