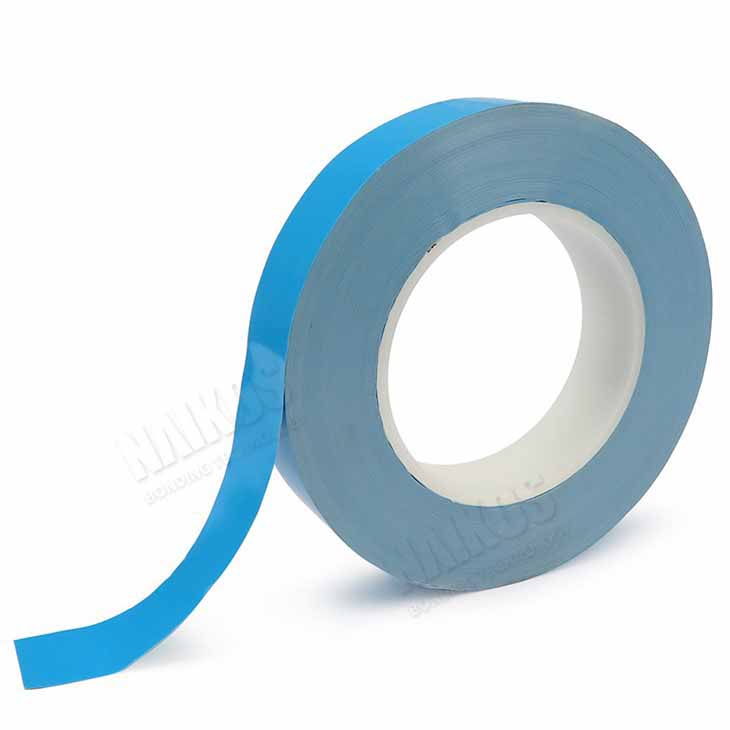

Thermal paste tape is very convenient to glue other heat sinks and heating equipment, effectively Improving the heat transfer between electronic components. It is simple and convenient to use, which is conducive to improving production efficiency. Its heat dissipation effect is more obvious than that of ordinary heat dissipation stickers, which greatly improves the service life of components. Thermal conductive tape is the first choice for some high-end electronic products that need heat conduction.
Feature
* High tacky thermal conductive PSA. The only pressure is needed to form an excellent bond and thermal interface.
* The performance of thermal conductivity, insulation, buffer, and high tacky make it the best choice for an electronic application.
* Flexible and conformable. Ideal for uneven surfaces.
* Stable and economical with different thicknesses and constructions.
Product Construction
Specification
Item
NKS-##
NKS-##N
Test Method
Carrier
Glass Fabric
N/A
---
Adhesive
Thermally Conductive PSA
Thermally Conductive PSA
---
Total thickness (mm)
0.10~0.50
0.05~0.40
ASTM D374
Color
White
White
VISUAL
Release Liner
Blue PE Film
White Release Paper
VISUAL
Adhesion (N/25mm)
12~18
12~18
PST-101
Thermal Conductivity(W/m-k)
1.2
1.2
ASTM D22470
Voltage Resistance(KV/mm)
3.5~8.0
3.5~8.0
ASTM D149
Temperature Resistance(Short Term,℃/℉)
120(℃)
248(℉)
120(℃)
248(℉)
EN344
Temperature Resistance(Long Term,℃/℉)
80(℃)
176(℉)
80(℃)
176(℉)
EN344
Standard width (mm)
2~1030(Customized Available)
Standard length (m)
25/50(Customized Available)
These values are measured values and not guaranteed values.
Application
Thermal paste tape is mainly suitable for power LED, computer CPU, GPU, SSD drivers, modules, MOS tubes, IGBT, IC chip, power semiconductor, video card RAM, high power welder, display, chipset, etc. This thermal adhesive tape can also be used for bonding other devices that require heat conduction, instead of fixing with screws, to achieve the most effective heat dissipation effect.
