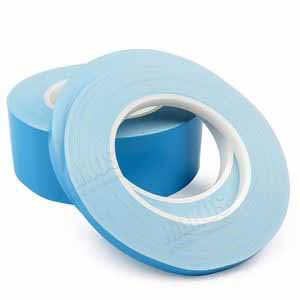

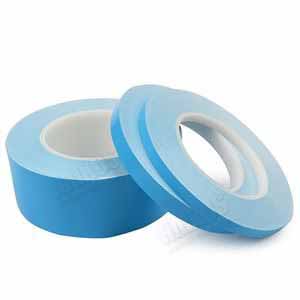

Heat Sink Thermal Tape
* Flexibility, adaptability
* Excellent bonding strength
* Broad operating temperature range
Product Details
Product Description
Heat sink thermal tape provides an efficient heat conduction channel between electronic devices and heat sink, with good viscosity, can fix the heating body and heat sink together, as a whole, enhance the heat dissipation effect, thermally conductive adhesive tape make electronic devices and radiator no longer need mechanical fixation and liquid adhesive curing fixed.
Feature
* The thermally conductive tape has very strong adhesion and has a good thermal conductivity
* High tensile strength and strong adhesion hold the device firmly in place, to achieve the most effective thermal dissipation.
* Heat conductivity is high and stable, more obvious than the general heat dissipation sticker, which greatly improves the life of the component, and is the first choice for some high-end electronic products that require heat conduction.
Product Construction
Specification
Item | NKS-## | NKS-##N | Test Method |
Carrier | Glass Fabric | N/A | --- |
Adhesive | Thermally Conductive PSA | Thermally Conductive PSA | --- |
Total thickness (mm) | 0.10~0.50 | 0.05~0.40 | ASTM D374 |
Color | White | White | VISUAL |
Release Liner | Blue PE Film | White Release Paper | VISUAL |
Adhesion (N/25mm) | 12~18 | 12~18 | PST-101 |
Thermal Conductivity(W/m-k) | 1.2 | 1.2 | ASTM D22470 |
Voltage Resistance(KV/mm) | 3.5~8.0 | 3.5~8.0 | ASTM D149 |
Temperature Resistance(Short Term,℃/℉) | 120(℃) 248(℉) | 120(℃) 248(℉) | EN344 |
Temperature Resistance(Long Term,℃/℉) | 80(℃) 176(℉) | 80(℃) 176(℉) | EN344 |
Standard width (mm) | 2~1030(Customized Available) | ||
Standard length (m) | 25/50(Customized Available) |
Notice: The above were reference values. For detailed information, please contact China Heat Resistant Tape.
Application
Heat sink thermal tape is widely used for heat sinks, LED Strips, computer CPU, GPU, SSD drivers, modules, MOS tubes, IGBT, IC chip, power semiconductor, video card RAM, Video Card RAM, high power welder, display, semiconductor chip.
Thermal tape can be offered in various formats such as sheets, rolls, and die-cut parts depending on the application and is proven reliable under various mechanical, thermal, and environmental stresses.
Storage Precautions
Products should be stored in a dry place out of direct sunlight
Avoid contact with residual solvents or oils as they may deteriorate the properties of the product.
For better results, the substrate surface should be cleaned and dried to remove any dirt, moisture, or oils before application.
