The silicone thermal pad is a kind of high performance thermal interface material. Some people called it a thermally conductive pad, thermal take cooling pad, sil pad, or thermal heat pad.
It is soft, self-sticky, and elastic. Apply to fill the gap between heat-generating components and the heat sink. The heat can be transferred out speedily to improve the electronic components' working efficiency and prolong the equipment's lifespan.
According to thermal conductivity,thermal silicone pads can be divided into many kinds, 1.0-2.5 W/m.k ,2-3 W/m.k,3-6 W/m.k,Or higher performance 6-15W/m.k.
The thermal gap pad has excellent mechanical properties and physical properties, the well tensile strength makes it not easy to break. Surface Soft and bring a better micro adhesive, that can reach the contact area. Thermal gap fillers are intended to be compressed – the pressure drives the material into the microscopic surface texture to maximize thermal conductivity. Non-toxic, odorless, anti-corrosion, wear resistant, anti-static, fire retardant, compression, good insulation, and contact with any electrical traces wouldn’t result in damage of any sort.

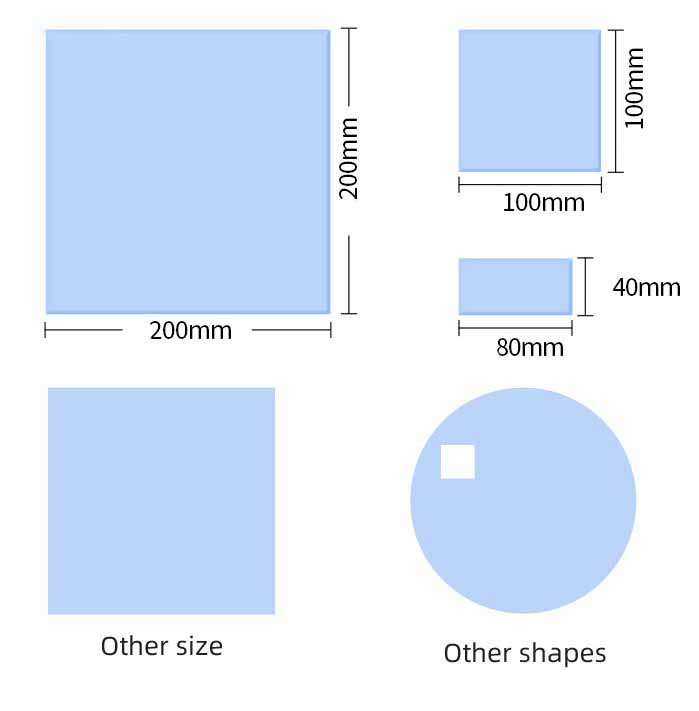

Our thermal silicone pads have kinds of different thicknesses to meet different application requirements, such as regular size thermal pad 1mm, thermal pad 1.5 mm, thermal pad 2mm, thermal pad 3mm, and special thicknesses can contact us to customize. We can also cut them into different sizes according to requirements.

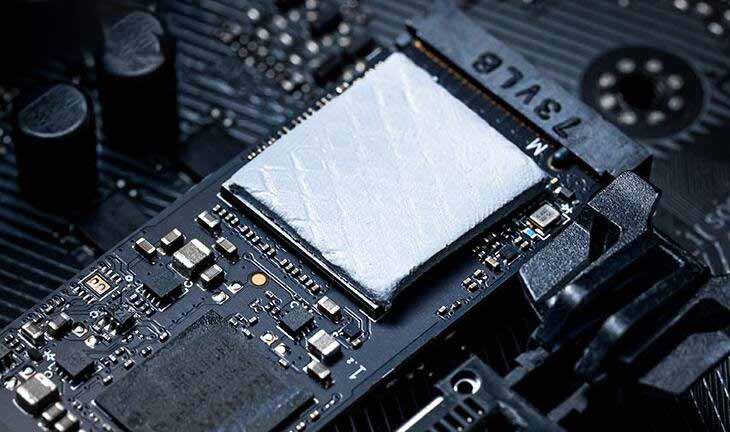

According to customer requirements, once we had customized special size productions for different applications , such as thermal pad for laptop, ps4 thermal pads, ssd thermal pad, cpu thermal pad, thermal pads gpu,etc.
Our best thermal pads Perfectly replaces traditional heatsink compound grease paste,easier to install and you can’t really mess anything up as you might with a thermal paste.great for PC,Control board, motor, electronics, Heat Sink, Power LED, CPU, GPU, PS4, auto mechanics, computer host, laptop,solid-state drives,Gaming equipment, LID, Set-top box, LED IC SMD DIP and any cooling modules.
Features
* Easier to install, Perfectly replaces traditional heatsink compound grease paste
* Soft, self-sticky, and elastic
* Non-toxic, odorless, anti-corrosion, wear resistant, anti-static, fire retardant, compression, good insulation
* Free custom cutting
Promotional Banners
Flexible and insulative, resists up to 220 °C, Supply in roll, sheet, or die-cut Used for Electric Vehicles, 5G, Autopilot System, Mobile Phone, AIOT, HPC,Server Used for IC, CPU, MOS, LED, Mother Board,Power Supply,Heat Sink,LCD-TV,PC,etc. Used for Notebook,PC,Telecom Device,Wireless Hub,DDR ll Module, automotive,etc.
Physical Properties
Item
NKS-###-PAD-TC
NKS-###-PAD-MTC
NKS-###-PAD-HTC
Test Method
Reinforced Carrier
N/A
N/A
N/A
---
Pad Type
Silicone Polymer
Silicone Polymer
Silicone Polymer
---
Thickness（mm）
0.30~12.00
0.30~5.0
0.30~3.0
ASTM D 374
Color
Grey/Pink/Blue/Black
Grey/Pink/Blue/Black
Grey/Pink/Blue/Black
VISUAL
Density(g/cc)
1.8~2.8
3.0
3.2~3.5
ASTM D792
Hardness(Shore C)
30±5
25±5
25±5
ASTM D2240
Thermal Conductivity(W/m-k)
1.0~2.5
2.0~3.0
3.0~6.0
ASTM D2240
Voltage Resistance(VK/mm)
＞4.0
＞4.0
＞4.0
ASTM D149
Temperature Resistance（℃/℉）
-40~+220(℃)
-104~+428(℉)
-40~+220(℃)-104~+428(℉)
-40~+220(℃)
-104~+428(℉)
ASTM D5470
Volume Resistance(ΩNaN)
1.0*1011
3.1*1011
3.1*1011
ASTM D257
Flame Rating
V-0
V-0
V-0
UL-94
Standard Size（mm）
200*400/320x320(Customized Available)
These values are measured values and not guaranteed values.
Contact us for other options, questions or to inquire about our Cut-To-Size Services: Email inquiry-tape@winnewtech.com or Whatsapp 8615080327070 with dimensions and quantity for pricing.
Production Process
Why choose us?
China Heat Resistant Tape is a global, industry-leading manufacturer and marketer of pressure-sensitive tapes, serving numerous markets, including home & office products, industrial/MRO, building, professional paint, automotive, packaging, HVAC, electronics, DIY, arts and entertainment, marine, aerospace, medical.
China Heat Resistant Tape has several production lines including coating machines, rewinding machines, slitting machines, cutting machines, die-cutting machines, automatic packaging machines, and testing machines, Able to provide the services of R&D, OEM, ODM, and procession service for customers.
How to assure the quality for you?
Material Purchasing
5R Management Material Procurement System. Our purchasing manager has more than 8-year purchasing experience and rich experience in quality control and the advantages of different factories and different products, and different quality levels. We control every material to have stable 2-3 suppliers, who can get much of our orders, and offer stable quality and excellent service. And in our system, we have more than 1000 backup suppliers there, to meet any special and urgent requirement from clients.
How to control the Lead time:
● We have mastered all other processes and equipment, and the internal production process control is strictly in place. If you have special and urgent orders, please let us know, we can coordinate internally to help you complete the delivery goals.
About Packaging & Shipping
We can provide different kinds of packaging according to customers' requests, such as labeling, barcode, individual packing, and mailbox packing, you can give us your instruction, and we will follow up on your requests.
China Heat Resistant Tape has complete management systems, including I S O 9 0 0 1: and I S O 1 4 0 0 1. New product development could be provided to fulfill the customers' new requirements in the shortest time. All the materials were compliant with Rohs and approved by SGS, Reach, or UL.
