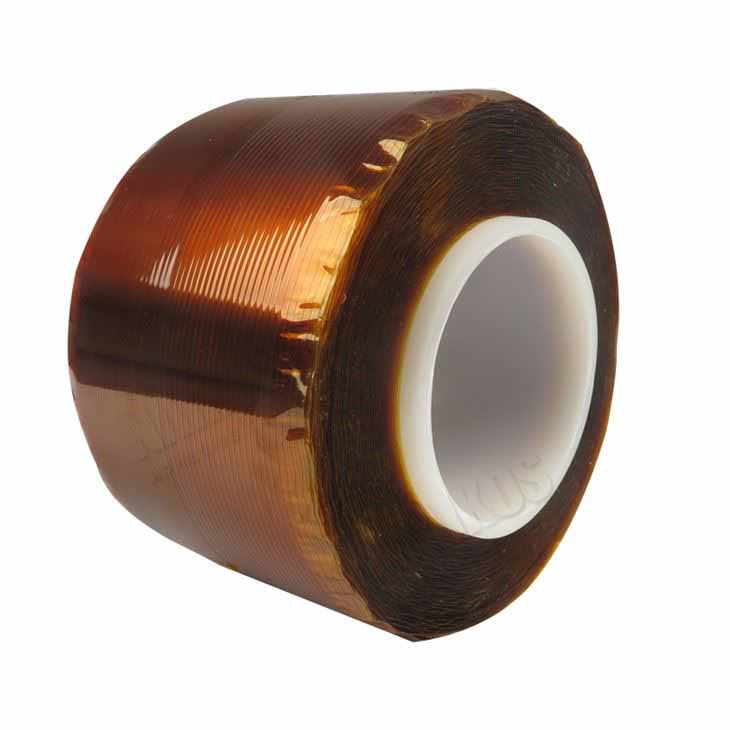

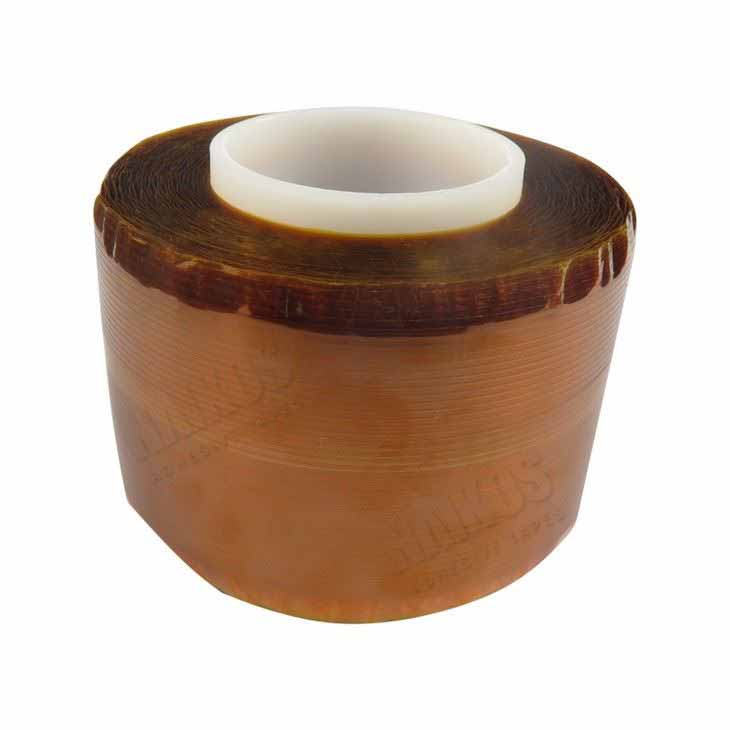

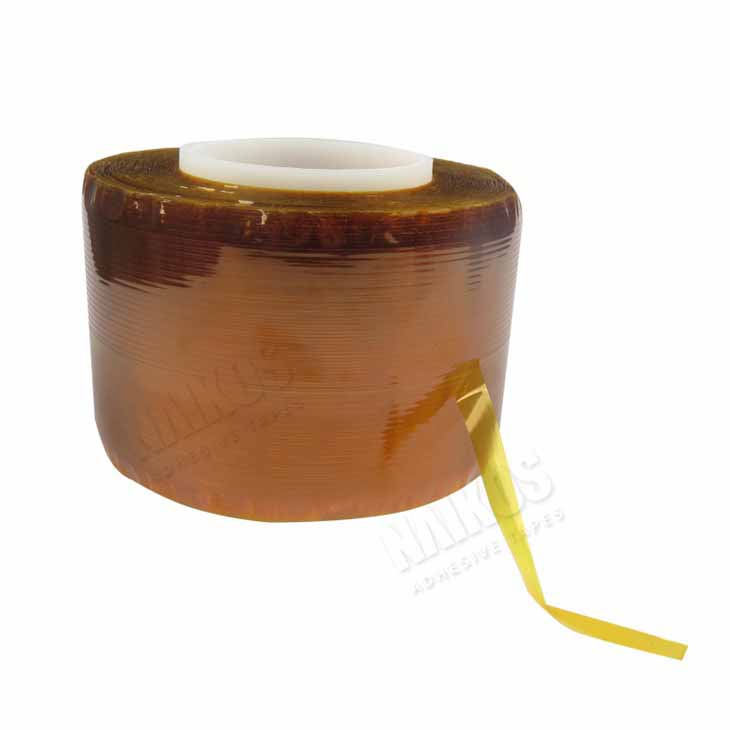

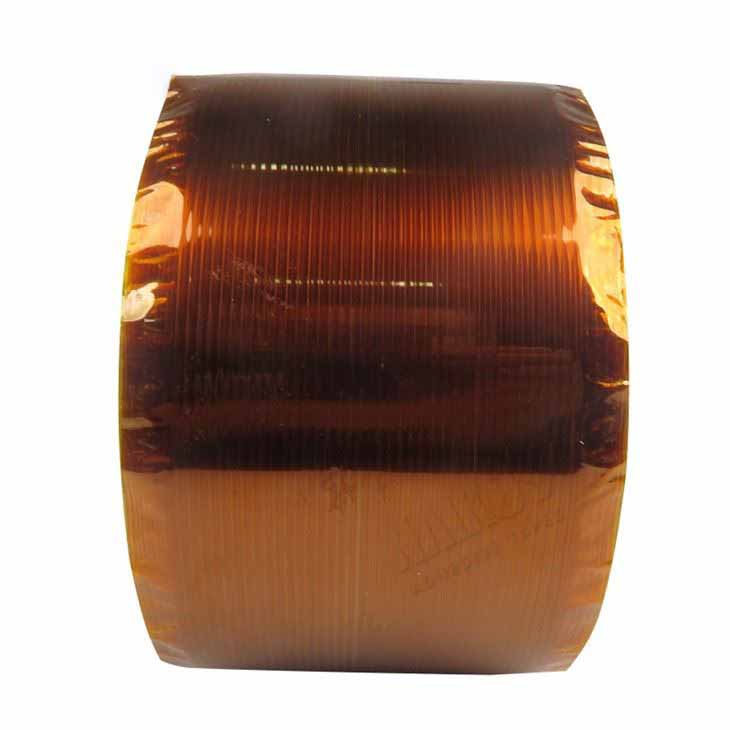

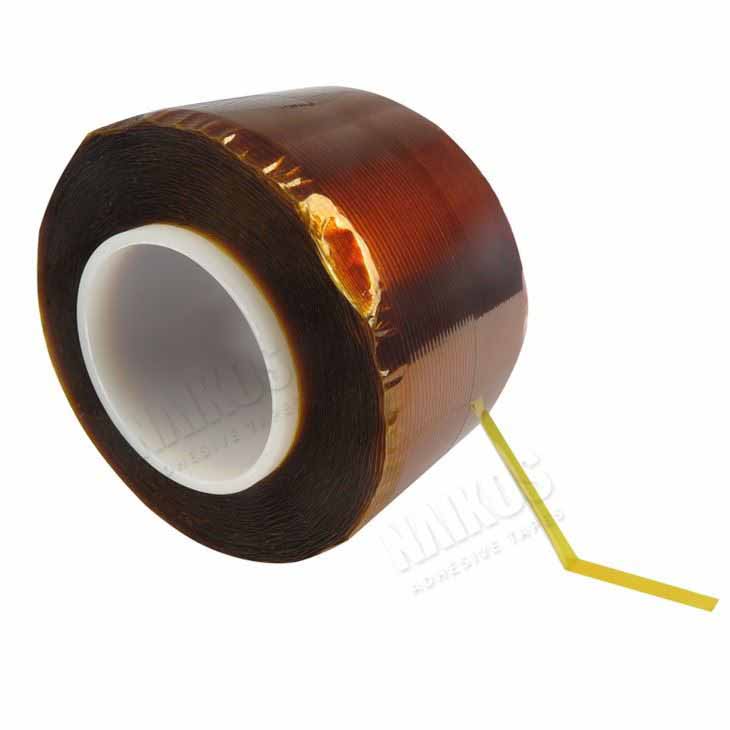

Jumbo Roll High Temperature Polyimide Film Tape
*Polyimide tape heat resistant
*Kapton tape temperature up to 500℉/260℃ temperature resistance
*Flame retardant, chemical, and radiation-resistant,
*High-temperature resistance and Class H insulation for electronics and masking
*Width: Customizable
*High electrical strength, apply to SMT, PCB, transformer, lithium battery, coils
Product Details
What Is Spool Tape?
Spooling is a process where rolls of tape products can be spliced together and wound onto a common core, similar to a fishing line or thread wound onto a reel. This traverse winding process allows significant footage to be wound onto a single roll without becoming excessively large and challenging to handle.
Spool tape allows your machines to keep running longer, reducing costs associated with downtime, labor, and changeovers. Single rolls length can even reach to 4000meters.
Product Description
Jumbo roll high temperature polyimide film tape is made of polyimide film with silicone adhesive, Polyimide Film tapes are reliable and durable with a unique combination of electrical, thermal, chemical, and mechanical properties that withstand extreme temperatures, vibration, and other demanding environments. They have excellent resistance to acids, oils, and solvents. Polyimide tape is made in spool form with lengths up to 4000 meters which is suitable for automatic production especially.
Features
* The backing of Kapton tape is made of silicone, which is sticky but will not leave residue on the surface after being torn off.
* The range of high temperatures that can be resisted is from 250℃ to 300℃. It can insulate and protect various electronic and electrical equipment.
* This heat resistant polyimide tape is made of polyimide, and the surface of the polymers film exhibits an excellent balance of physical, chemical, and electrical properties over a wide temperature range.
* Customize the length. Spool roll can use for machines.
Construction
Product Properties
| Item | NKS-040 | NKS-04 | NKS-01 | NKS-02 | NKS -03 | NKS -05 | NKS-01ESD |
| Color | Amber | Amber | Amber | Amber | Amber | Amber | Amber |
| Carrier | Polyimide | Polyimide | Polyimide | Polyimide | Polyimide | Polyimide | Polyimide |
| Adhesive | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone |
Carrier Thickness(mm) | 0.025 | 0.025 | 0.025 | 0.05 | 0.075 | 0.125 | 0.025 |
Total Thickness (mm) | 0.040 | 0.050 | 0.060 | 0.085 | 0.11 | 0.16 | 0.060 |
| Tensile Strength(N/25mm) | 160 | 100 | 115 | 185 | 280 | 450 | 115 |
Adhesion (N/25mm) | 3 | 5.0 | 5.5 | 5.5 | 6 | 6 | 5.5 |
Elongation at Break (%) | 70 | 40 | 45 | 50 | 55 | 60 | 45 |
Corrosion Resistance | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Electrical Strength (Volts) Anti-static(Ω) | 3000 | 5000 | 5000 | 7000 | 9000 | 12000 | 5000 |
| - | - | - | - | - | - | <1X108 | |
Temperature Resistance(℃) | -20℃-+260℃ | ||||||
| Width(mm) | 2~500(Custom Slit Available) | ||||||
| Length(m) | 33m | ||||||
These values are measured values and not guaranteed values.
Application
Jumbo roll high temperature polyimide film tape used in the printed circuit board (PCB), SMT tin stoves, wave soldering process masking gold finger; High-grade electrical insulating protection and fixed lithium battery positive and negative effects; Suitable for solder protection; Cell phone lithium battery manufacturing strapping.
Available Sizes
Width: Maximum width 19.68 inches (500mm). (Can be Customized)
Length: 33m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
