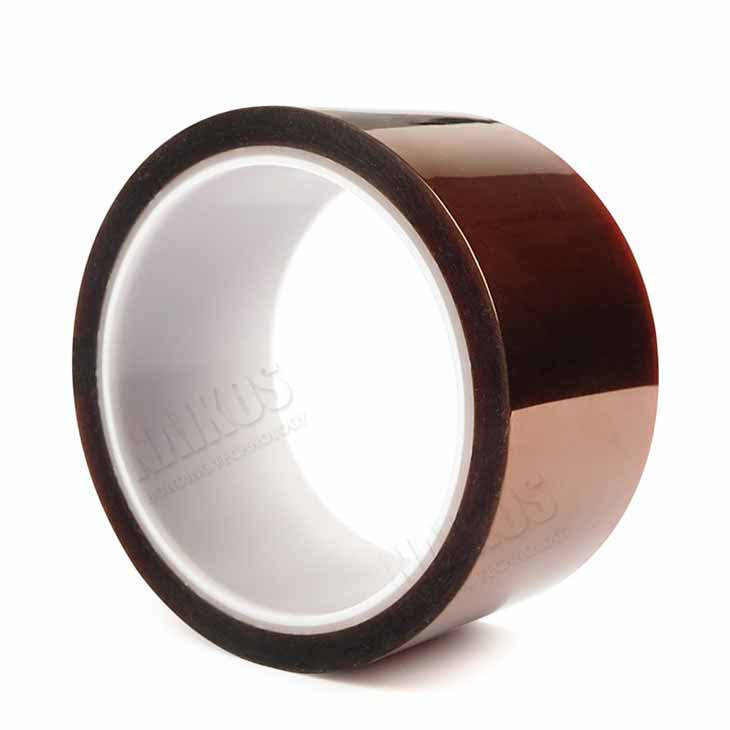

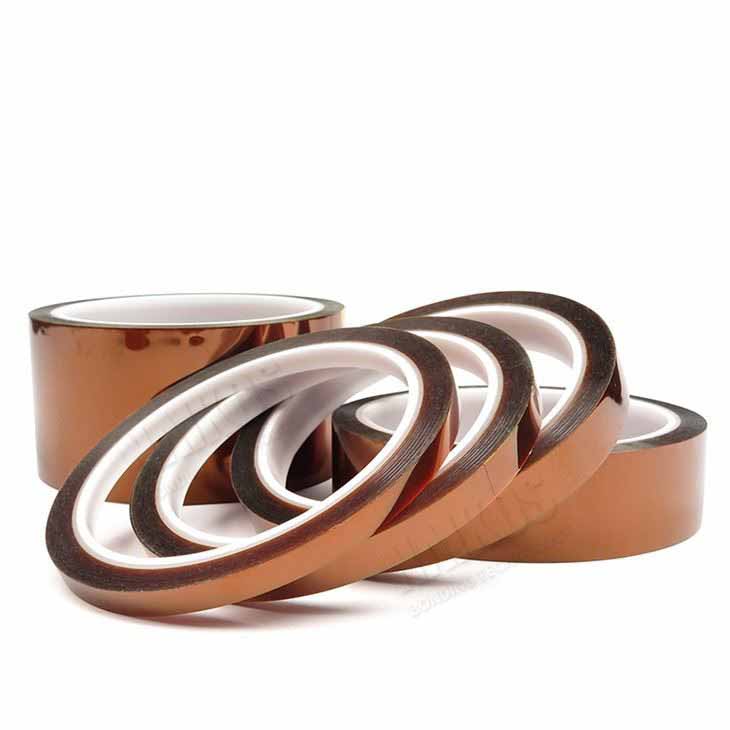

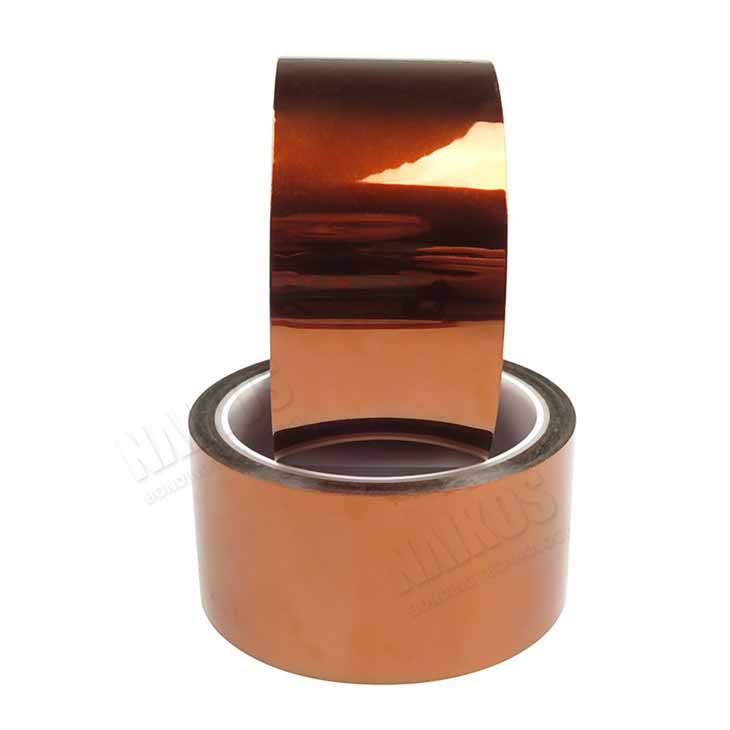

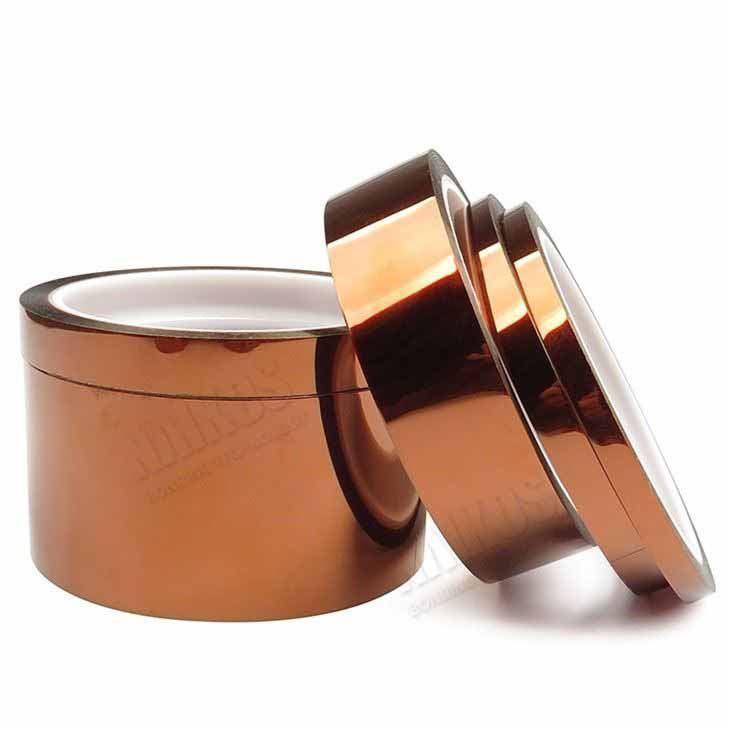

High-Temperature Polyimide Resistant Silicone Adhesive Tape for Masking Soldering
Adhesive: Silicone Adhesive
Thickness: 0.05mm/0.06mm/0.08mm
Temperature Range:-73°C – 260°C (-99°F - 500°F)
Product Details
Product Description
High-temperature polyimide resistant silicone adhesive tape for masking soldering is made of polyimide film backing and single side coated with high-temperature silicone adhesive. It makes innovative design solutions possible in a range of industries including, consumer electronics, solar photovoltaic and wind energy, aerospace, automotive and industrial applications. Polyimide tape has high dielectric strength. Silicone adhesive protection leaves no residue.
Features
* Polyimide film exhibits an excellent balance of physical, chemical, and electrical properties over a wide temperature range
* With silicone adhesive for easy release and leaves no residue after peeling away
* High performance, reliability, and durability, with a unique combination of electrical, thermal, chemical, and mechanical properties.
* Wide range of applications for masking circuit boards, soldering, electrical insulation, and slicing wires.
Application
High-temperature polyimide resistant silicone adhesive tape for masking soldering is mainly used in Automotive sensors and manifolds, Insulating circuit boards, High-temperature powder coating, wave soldering during circuit board assembly, Mask for protection of gold fingers of printed circuit boards during wave solder, solder reflow, or solder dip process, Release surface in the fabrication of parts cured at elevated temperatures.
Construction
Silicone Adhesive PI Film |  |
Physical Properties
Item No. | NKS-0035KLS | NKS-0042KLS | NKS-0055KLS | NKS-0060KLS |
Backing | PI Film | PI Film | PI Film | PI Film |
Adhesive | Silicone | silicone | silicone | silicone |
Total Thickness（mm） | 0.035 | 0.042 | 0.055 | 0.060 |
Color | Amber | Amber | Amber | Amber |
Adhesion(N/25mm) | 5 | 5 | 6 | 6 |
Tensile Strength(N/25mm) | 50 | 50 | 75 | 75 |
Heat Resistance(℃) | -40≈+180 | -40≈+180 | -40≈+250 | -40≈+250 |
Breakdown Voltage(VK) | 5 | 5 | 6 | 6 |
Unwind Force | Medium | |||
Standard Width（mm） | 2-500 | |||
Standard Length（m） | 33/50/66/100 |
These values are measured values and not guaranteed values.
Available Sizes
Width: Maximum width 19.68 inches (500mm). (Can be Customized)
Length: 33m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
Storage Conditions
Store in a clean dry shady place. A temperature of 20 degrees Celcius and 65 percent relative humidity are recommended.
