*Peeled off without leaving an adhesive residue
*Polyimide tape heat resistant
*Kapton tape temperature up to 500℉/260℃ temperature resistance
*Flame retardant, chemical, and radiation-resistant,
*High-temperature resistance and Class H insulation for electronics and masking
*Width: Customizable
*High electrical strength, apply to SMT, PCB, transformer, lithium battery, coils
Product Description

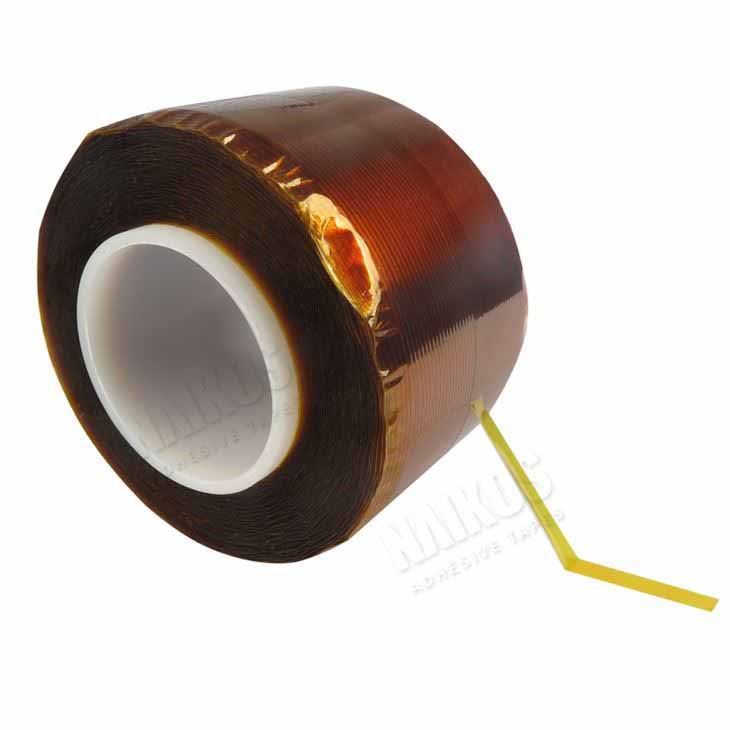

High temperature polyimide film spool tape is made of polyimide film with silicone adhesive, Polyimide Film tapes are reliable and durable with a unique combination of electrical, thermal, chemical, and mechanical properties that withstand extreme temperatures, vibration, and other demanding environments. They have excellent resistance to acids, oils, and solvents. Polyimide tape is made in spool form with lengths up to 2000 meters which is suitable for automatic production especially.
Features
* The backing of Kapton tape is made of silicone, which is sticky but will not leave residue on the surface after being torn off.
* The range of high temperatures that can be resisted is from 250℃ to 300℃. It can insulate and protect various electronic and electrical equipment.
* This heat resistant polyimide tape is made of polyimide, the surface of polymers film exhibits an excellent balance of physical, chemical, and electrical properties over a wide temperature range.
* Customize the length. Spool roll can use for machines.
Construction

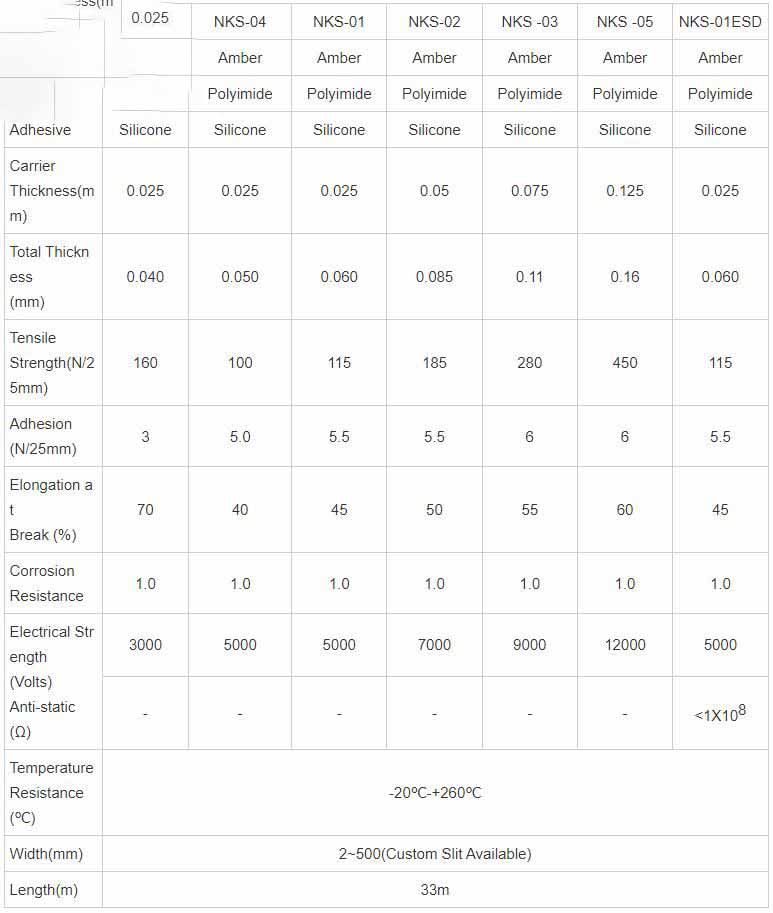

Product Properties
Item | NKS-040 | NKS-04 | NKS-01 | NKS-02 | NKS -03 | NKS -05 | NKS-01ESD |
Color | Amber | Amber | Amber | Amber | Amber | Amber | Amber |
Carrier | Polyimide | Polyimide | Polyimide | Polyimide | Polyimide | Polyimide | Polyimide |
Adhesive | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone |
Carrier Thickness(mm) | 0.025 | 0.025 | 0.025 | 0.05 | 0.075 | 0.125 | 0.025 |
Total Thickness (mm) | 0.040 | 0.050 | 0.060 | 0.085 | 0.11 | 0.16 | 0.060 |
Tensile Strength(N/25mm) | 160 | 100 | 115 | 185 | 280 | 450 | 115 |
Adhesion (N/25mm) | 3 | 5.0 | 5.5 | 5.5 | 6 | 6 | 5.5 |
Elongation at Break (%) | 70 | 40 | 45 | 50 | 55 | 60 | 45 |
Corrosion Resistance | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
Electrical Strength (Volts) Anti-static(Ω) | 3000 | 5000 | 5000 | 7000 | 9000 | 12000 | 5000 |
- | - | - | - | - | - | <1X108 | |
Temperature Resistance(℃) | -20℃-+260℃ | ||||||
Width(mm) | 2~500(Custom Slit Available) | ||||||
Length(m) | 33m |
These values are measured values and not guaranteed values.
Application
High temperature polyimide film spool tape used in the printed circuit board (PCB), SMT tin stoves, wave soldering process masking gold finger; High-grade electrical insulating protection and fixed lithium battery positive and negative effects; Suitable for solder protection; Cell phone lithium battery manufacturing strapping.
Available Sizes
Width: Maximum width 19.68 inches (500mm). (Can be Customized)
Length: 33m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
About Packaging & Shipping
We can provide different kinds of packaging according to customers' requests, such as labeling, barcode, individual packing, and mailbox packing, you can give us your instruction, and we will follow up on your requests.
Different shipping ways are available, small quantities orders will be delivered to you by express and bulk goods will be delivered to you by sea, we will talk about the delivery method before we dispatch out the goods.
China Heat Resistant Tape Industrial is one of the excellent manufacturers and suppliers of high temperature polyimide film spool tape in China, which is equipped with a professional factory and advanced equipment. We aims at providing you with high quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at competitive price.Hot Tags: high temperature polyimide film spool tape suppliers China, manufacturers, factory, price, made in China,
