Kapton polyimide tape some people call it " caption tape ", is made of polyimide film, double coated with silicone adhesive.
Polyimide film tape is easy to release, compatible with a wide temperature range, applications at temperatures as low as -69℃ to as high as 260℃, even if you careless put a soldering iron on Kapton tape and it will not melt. Often used for High-temperature resistance, electronics masking, and Class H insulation.
As the powerful Kapton tape temperature resistant and dielectric properties, So it's often called electrical insulation tape, polyimide silicone tape, polyimide high-temperature tape, or heat resistant tape.
Black polyimide tape has the characteristics of high temperature resistance, high adhesion, softness and fit, and no glue residue after peeling off. It can be used as powder coating masking tape and is also suitable for ultra-high temperature baking paint and electroplating industries.
Features
*Peeled off without leaving adhesive residue
*heat resistant, up to 500℉/260℃
*Flame retardant, chemical, and radiation-resistant,
High temperature resistance and Class H insulation for electronics and masking High electrical strength, apply to SMT, PCB, transformer, lithium battery, coils Flame retardant, chemical and radiation resistant, 260℃ heat resistant Mask for protection of gold fingers of printed circuit boards during wave solder

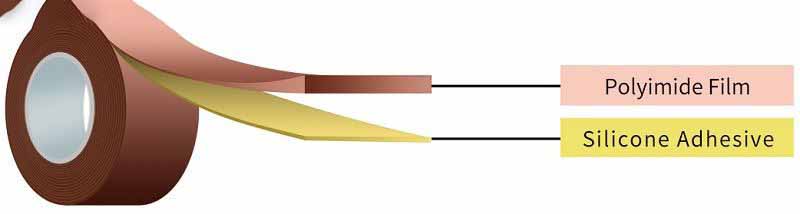

Construction

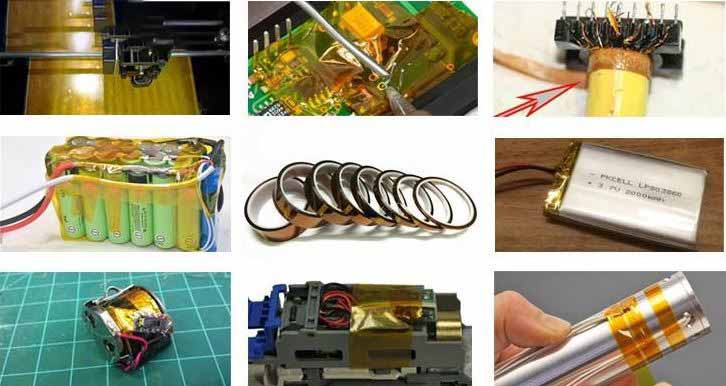

Application
Mainly used for SMT, PCB, transformer, electronics, and masking, the adhesion and class H insulation of electronic switches, motors, relays, wires, coil, capacitors, lithium batteries, etc.
Protection of gold fingers of printed circuit boards during wave solder, solder reflow, or solder dip process.
Release surface in the fabrication of parts cured at elevated temperatures.
Available Sizes
Width: Maximum width 19.68 inches (500mm). (Can be Customized)
Length: 33m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
Product Properties
Item
NKS-040
NKS-04
NKS-01
NKS-02
NKS -03
NKS -05
NKS-01ESD
Color
Amber
Amber
Amber
Amber
Amber
Amber
Amber
Carrier
Polyimide
Polyimide
Polyimide
Polyimide
Polyimide
Polyimide
Polyimide
Adhesive
Silicone
Silicone
Silicone
Silicone
Silicone
Silicone
Silicone
Carrier
Thickness(mm)
0.025
0.025
0.025
0.05
0.075
0.125
0.025
Total Thickness
(mm)
0.040
0.050
0.060
0.085
0.11
0.16
0.060
Tensile
Strength(N/25mm)
160
100
115
185
280
450
115
Adhesion
(N/25mm)
3
5.0
5.5
5.5
6
6
5.5
Elongation at
Break (%)
70
40
45
50
55
60
45
Corrosion
Resistance
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Electrical Strength
(Volts)
Anti-static(Ω)
3000
5000
5000
7000
9000
12000
5000
-
-
-
-
-
-
<1X108
Temperature Resistance(℃)
-20℃-+260℃
Width(mm)
2~500(Custom Slit Available)
Length(m)
33m
These values are measured values and not guaranteed values.
