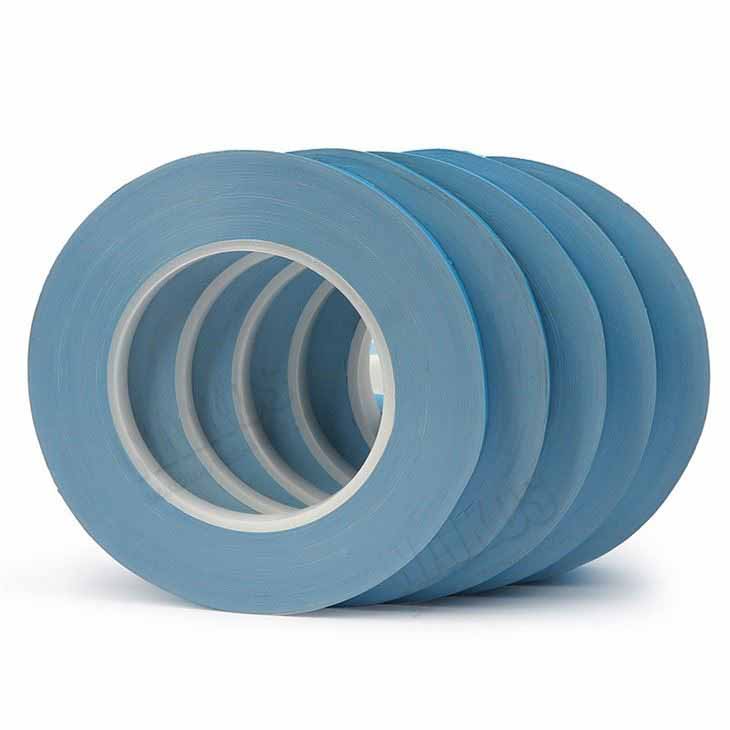

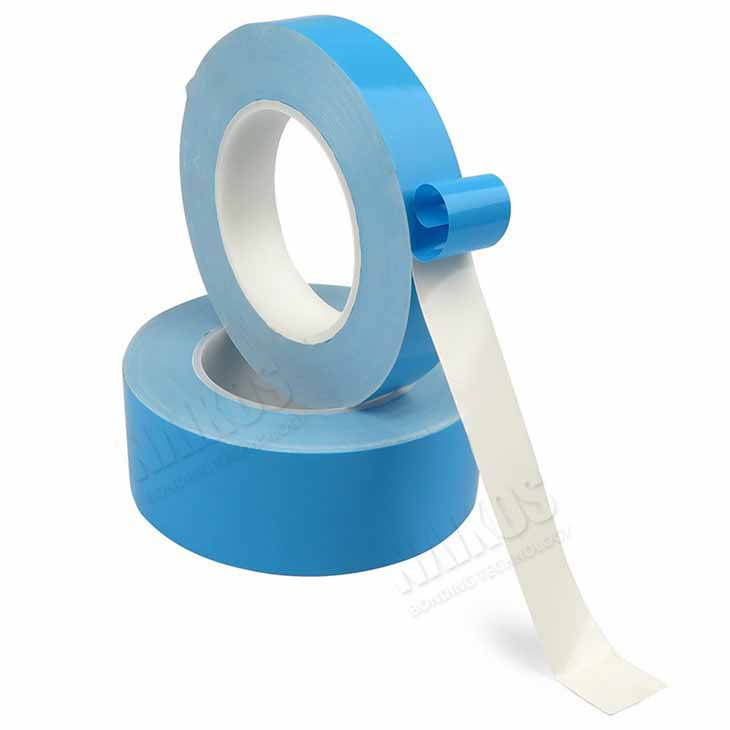

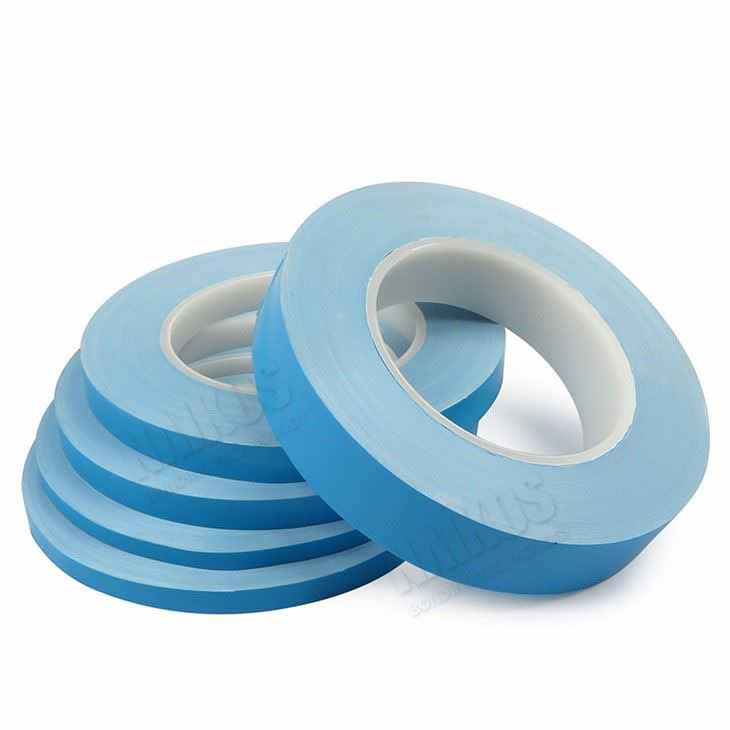

Double-Sided Heat Sink Thermal Interface Transfer Tape

* Good acrylic PSA adhesion
* Very good thermal conductivity
* Soft and compressibility
* Easy to assemble
* Stable and Economy

Download

Product Details

Product Description

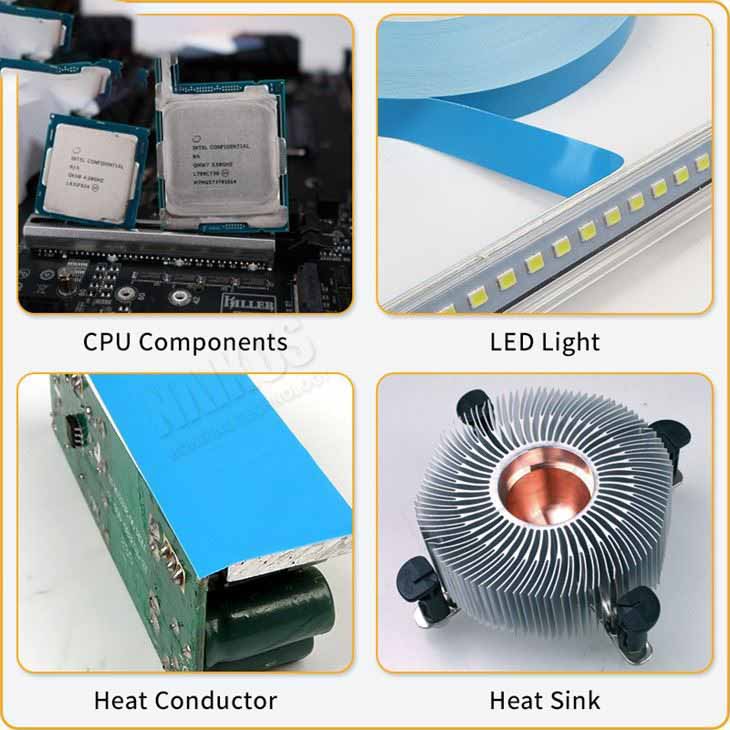

Double-sided heat sink thermal interface transfer tape is filled by high-performance acrylic pressure-sensitive adhesive with high thermal conductivity ceramic particle coating made without the substrate. Between the electronic device and heat sink to provide efficient heat conduction paths to make electronic devices and radiators no longer need to mechanically fix and liquid adhesive curing fixed.

Features

* Good acrylic PSA adhesion	* Thermal interface materials
* Very good thermal conductivity	* Thermal conductivity of materials
* Soft and compressibility	* Thermal conductivity materials
* Easy to assemble	* Thermal material
* Stable and Economy	* High thermal conductivity materials

Construction

Heat Sink Tape .png

Physical Properties

Item No.	Thickness (mm)	180°Peel Strength (PSTC-101 )(N/25mm)	Insulation Strength (ASTM D149) (KV)	Thermal Impedance @40PSI (AMD2240) (C*in2/W)	Thermal Conductivity (ASTM D22470) (W/m-k)	Temperature Range
NKS-05N	0.05±10%	＞10.78	1.57	0.414	1.20	-20℃～+120℃
NKS-10N	0.10±10%	＞13.72	2.22	0.558
NKS-15N	0.15±10%	＞13.72	2.55	0.654
NKS-20N	0.20±10%	＞15.68	4.29	1.070
NKS-25N	0.25±10%	＞15.68	5.0	1.173
NKS-30N	0.30±10%	＞15.68	5.0	1.234
NKS-40N	0.40±10%	＞15.68	5.0	1.525

Note: The above technical information and data should be considered representative or typical only and should not be used.

Shelf Life

Double-sided heat sinks thermal interface transfer tape shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.

Available Sizes

Width: Maximum width 41.3 inches (1030mm). (Can be Customized)

Length: 25m/50m (Can be customized).

Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
