Home > Tags > Fiberglass Thermal Tape

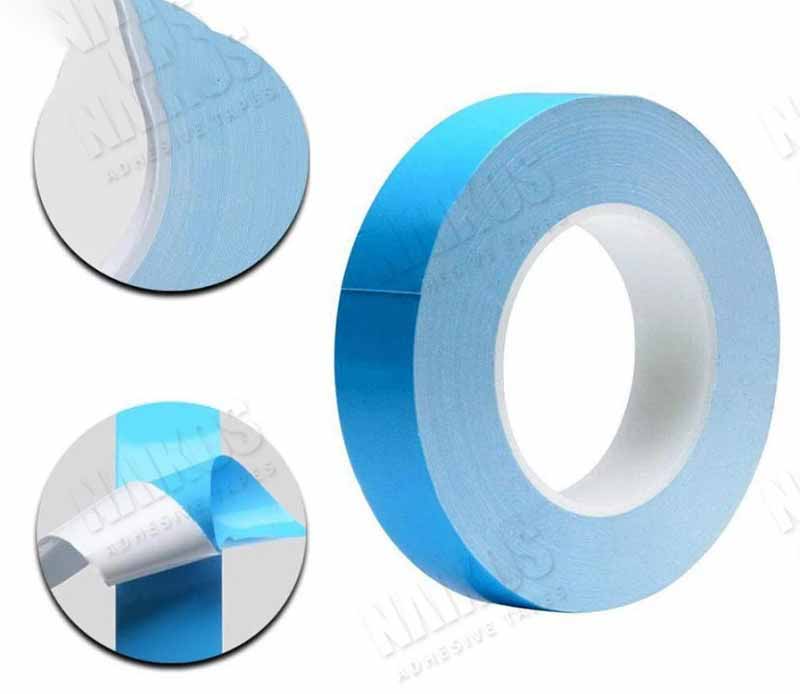

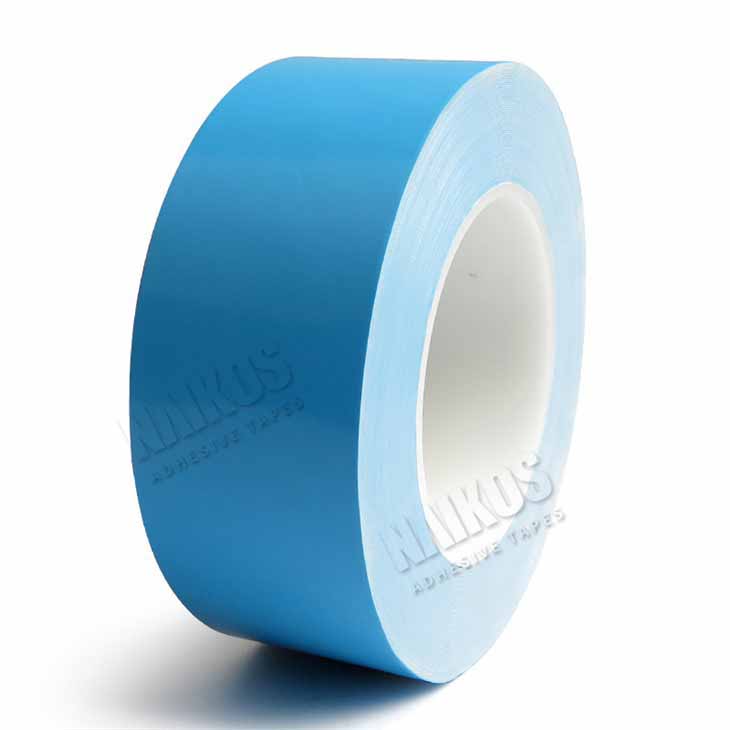

Double Sided Heat Tape

High tacky thermal conductive PSA
Flexible and conformable Ideal for uneven surfaces
Stable and economical with different thicknesses and constructions

Send Inquiry

Products Description

Double sided heat tape is made of advanced thermal conductive PSA. With Thermal conductivity, strong stickiness, softness, Insulation, Non-conductive, wear-resistant, fire-retardant, compression, buffering, no damage to metal materials, etc features.

Double sided heat tape can fill uneven surface, tightly and firmly fit the heat source devices and heat sink, Has strong adhesive strength, and effectively replace grease and mechanical fixation, A large number of applications in bonding heat sink to microprocessor and other power consumption of the semiconductor.

Product Feature

Excellent Performance:

Thermally conductive sticky tape has super stickiness and can firmly fix the heatsinks to the heating element, effectively improving the heat transfer between electronic components. (substitute screws, rivets, welds, fastener, and liquid glue)High Durability:

Thermal duct tape has extremely stable performance, durable adhesion on both sides, no residual glue, and can work for a minimum of 5 years in a high-temperature environment of 80-150°C. ( If combined with heat conduction paste or cooling silica gel pad, the effect will be better )

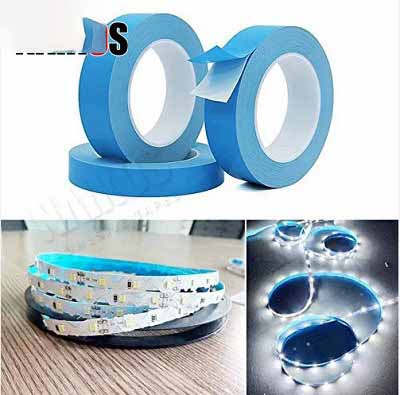

led thermal tape

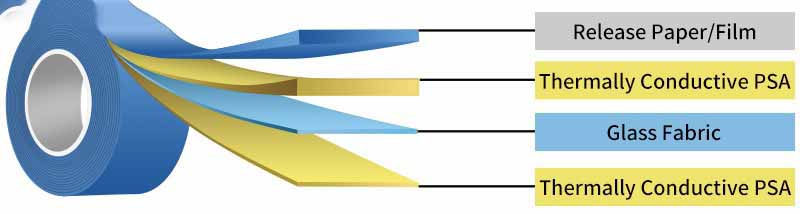

Products Construction

thermal insulation foil tape

Products Properties

Item	NKS-##	Test Method
Carrier	Glass Fabric	---
Adhesive	Thermally Conductive PSA	---
Total thickness(mm)	0.10~0.50	ASTM D374
Color	White	VISUAL
Release Liner	Blue PE Film	VISUAL
Adhesion (N/25mm)	12~18	PST-101
Thermal Conductivity(W/m-k)	1.2	ASTM D22470
Voltage Resistance(KV/mm)	3.5~8.0	ASTM D149
Temperature Resistance(Short Term, ℃/℉）	120(℃) 248(℉)	EN344
Standard width（mm）	2~1240 (Customized Available)
Standard length（m）	25/50 (Customized Available)

Products Application

Security Application:

The heat dissipation tape is insulative and non-conductive, which eliminates any risks of causing a short circuit, adding more protection to the CPU, GPU, VGA cards, HDD, SSD drive, VRAM, M2 hard disk, Water cooling kit, Laptop, PCB, IGBT, Mos tubes, Diode, Triode, Circuit board, Logic board, Raspberry pi, LED cooler, 3D printer

Widely Applications:

Heavy duty two sided stick tape can be used for attaching aluminum/copper heat sinks to the heating elements, fixing the carpet to prevent sliding, pasting posters and photos, mounting road signs & decoration graphics, and woodworking activities such as splicing, machine cutting, CNC woodworking, routing, and anchoring.

tape thermal computer thermal tape

FAQ

Q1: You are a factory or trading company?

A1: We are a manufactory.

Q2: What about the lead time?

A2: Sample needs2-3days. mass production time needs 1 week for an order quantity of more than 5000 rolls

Q3: Do you have any MOQ limit for the board?

A3: 200 rolls

Q4: How do you ship the goods and how long does it take to arrive?

A4: We usually ship by UPS, FedEx, or DHL. It usually takes 7-10 days to arrive. Airline and sea shipping is also optional.

Q5: How to proceed with an order?

A5: Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for the formal order. Fourthly We arrange the production.

Q6: Is it OK to print my logo on the product?

A6: Yes. Please inform us formally before our production and confirm the design first based on our sample.

Hot Tags: double sided heat tape suppliers China, manufacturers, factory, price, made in China,

Product Construction

thermal insulation foil tape

Products Properties

Item	NKS-##	Test Method
Carrier	Glass Fabric	---
Adhesive	Thermally Conductive PSA	---
Total thickness(mm)	0.10~0.50	ASTM D374
Color	White	VISUAL
Release Liner	Blue PE Film	VISUAL
Adhesion (N/25mm)	12~18	PST-101
Thermal Conductivity(W/m-k)	1.2	ASTM D22470
Voltage Resistance(KV/mm)	3.5~8.0	ASTM D149
Temperature Resistance(Short Term, ℃/℉）	120(℃) 248(℉)	EN344
Standard width（mm）	2~1240 (Customized Available)
Standard length（m）	25/50 (Customized Available)
