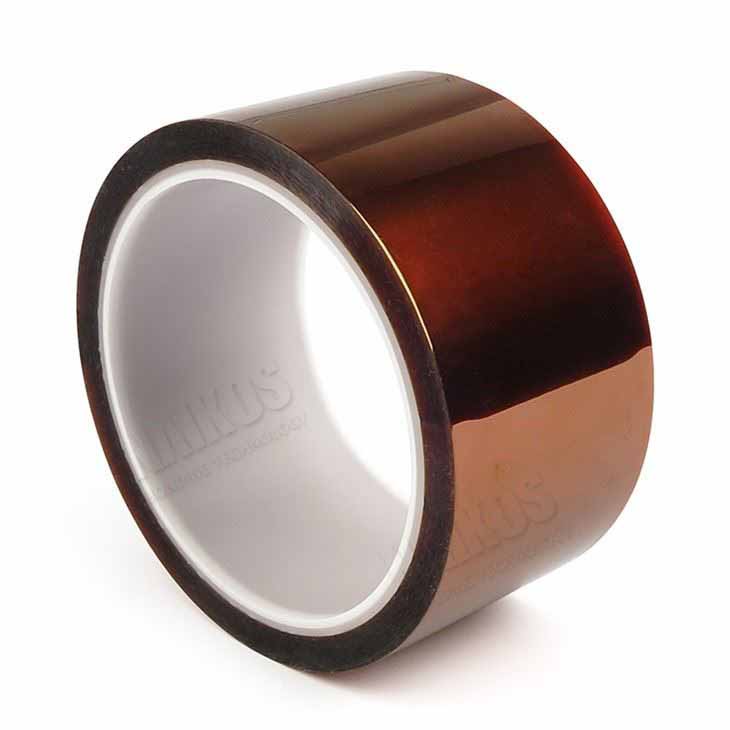

ESD Polyimide Adhesive Tape

* High temperature, solvent resistant, stable and reliable
* Easy peel off no glue residue
* H-class insulation
* Suitable for PCB 3d printing and transformer insulation

Send Inquiry

Product Description

ESD Polyimide Adhesive Tape is made from ESD polyimide film as the bottom material and is coated with pressure-sensitive silicone adhesive. High temperature, solvent resistant, stable and reliable, easy to peel off no glue residue, Suitable for H-class insulation, PCB 3d printing, and transformer insulation.

Application

* Etching

* Fiber Optics Cable

* High-temperature powder coating

* Semiconductor manufacturing

* Wave soldering during circuit board assembly

* Automotive sensor and manifolds

* Insulating circuit boards.

Construction

Single Side:

ESD Polyimide Tape.png

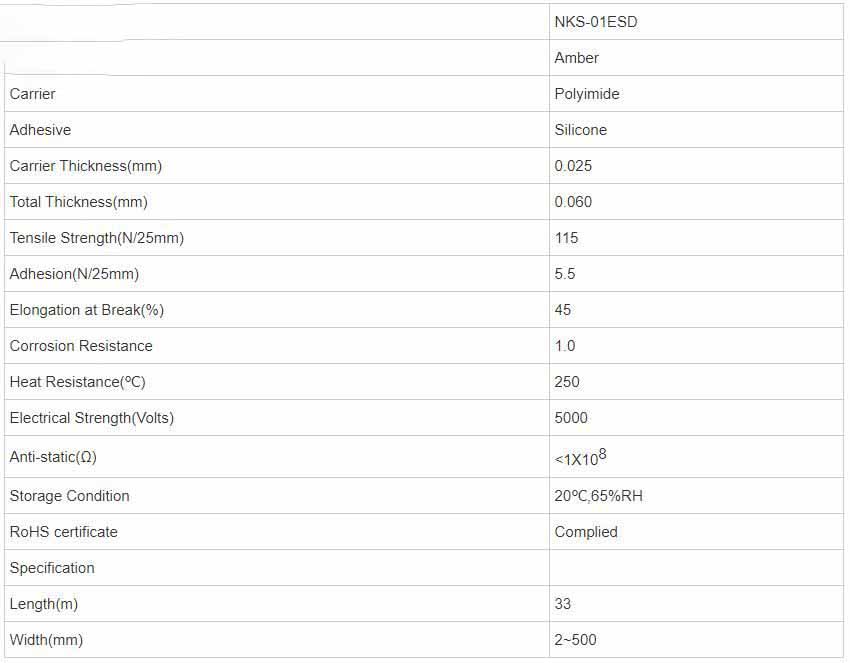

Physical Properties

Item	NKS-01ESD
Color	Amber
Carrier	Polyimide
Adhesive	Silicone
Carrier Thickness(mm)	0.025
Total Thickness(mm)	0.060
Tensile Strength(N/25mm)	115
Adhesion(N/25mm)	5.5
Elongation at Break(%)	45
Corrosion Resistance	1.0
Heat Resistance(℃)	250
Electrical Strength(Volts)	5000
Anti-static(Ω)	<1X10⁸
Storage Condition	20℃,65%RH
RoHS certificate	Complied
Specification
Length(m)	33
Width(mm)	2~500

These values are measured values and not guaranteed values.

Shelf Life

ESD polyimide adhesive tape shelf life is 2 years from the date of manufacture when stored at room temperature conditions(72°F[22°C]and 50%RH)in the product's original packaging.

Available Sizes

Width:Maximum width 19.68 inches(500mm).(Can be Customized)

Length:33m(Can be customized).

Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
