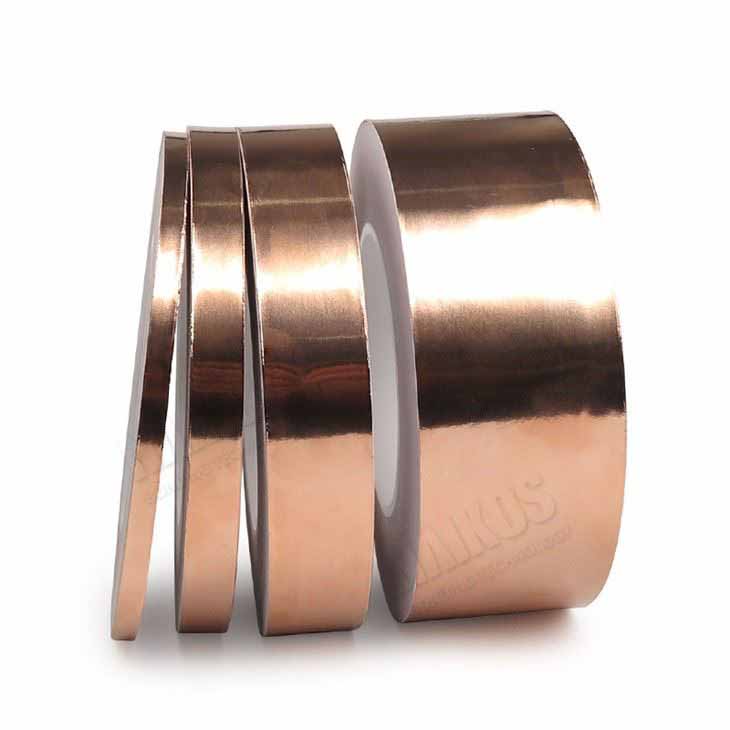

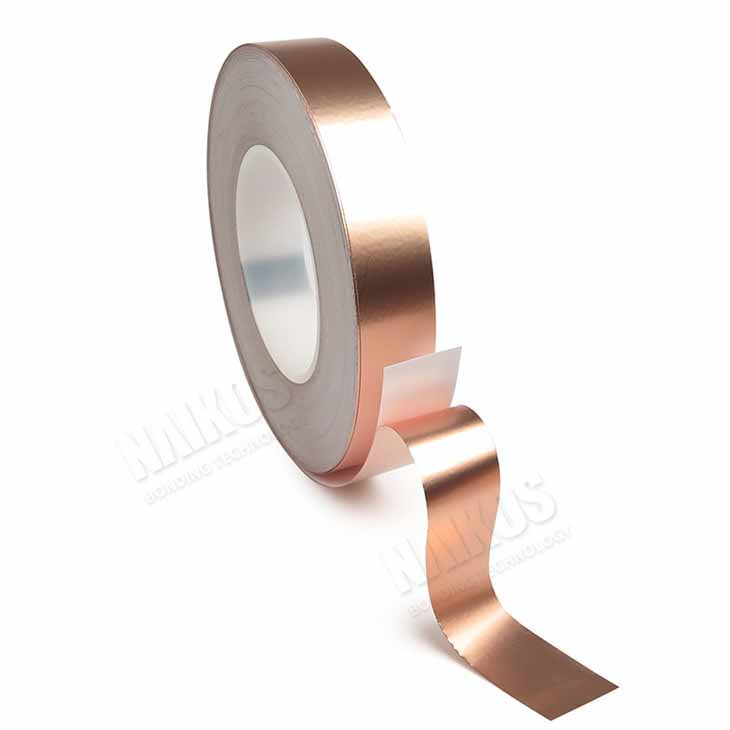

Non-Conductive Copper Foil Adhesive Tape For EMI Shielding
* Smooth surface
* Waterproof, flame retardant
* Stable shielding effect
Product Details
Product Description
Non-conductive copper foil adhesive tape for EMI shielding is made of soft copper foil as backing material and single side coated with non-conductive acrylic adhesive.
Features
* Good adhesion to glass and solders
* Smooth surface
* Waterproof, flame retardant
* Stable shielding effect
* Easy to tear apart
Application
Non-conductive copper foil adhesive tape for EMI shielding is widely used in stained glass making and is ideal for stained glass and decorative applications.It also acts as a barrier to movement by slugs and snails, to protect plants from damage by slugs and snails.
Construction
Physical Properties
Item | Unit | Value | Note |
180°Peeling Strength | Kg/.inch | ≥0.8 | 25°,2kg/in cohered,300mm/minute peeling |
Backing Material | % | 99.95 | Cu |
Backing Thickness | mm | 0.035±0.002 | |
Adhesive | Acrylic | ||
Adhesive Thickness | mm | 0.035+0.005 | |
Total Thickness | mm | 0.07 | |
Holding Power | minute | ≥1440 | 2kg/inch,to SUS304Plate |
Surface Impedance | Ω/inch | ≤0.05 | 25.4mm*25.4mm Mitsubishi LO |
Shielding Effectiveness | DB | 55~88 | 100MHz-1000MHz |
Heat Resistance | ℃ | -10 to 120 | |
Tensile Strength | kg/mm | 5 | |
Elongation | % | 6~7 | |
Adhesion | kg/25mm | 1.5 | |
Insulating Resistance | / | ||
Adhesive | Acrylic Pressure Sensitive Adhesive | ||
Solvent | Ethyl Acetate | ||
Viscosity | (BROOKFIELD LVF NO.4.@25℃)9000+1000 CPS | ||
Solid Content | (150℃15Min)401% | ||
Conductive Content | Silver, Nickel, Cu | ||
Initial Tack | (J.DOW METHOD)1.5kg/25mm | ||
Long Term Adhesion | (PSTC-7)1440 Min/inch | ||
Heat Resistance | '-10℃-120℃ | ||
Conductivity | 0.03~0.06 onms/sg in(≦0.2ohmshsq inch at 1Kg) |
Note: The above technical information and data should be considered representative or typical only and should not be used.
Available Sizes
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
Packaging
We can provide different kinds of packaging according to customers' requests, such as labeling, barcode, individual packing, and mailbox packing, you can give us your instruction, and we will follow up on your requests.
China Heat Resistant Tape Industrial is a professional-friendly copper foil tape manufacturer, established in2012. We mainly produce EMI shielding tape, thermal double-sided tape, copper tape, etc. With a good quality product and nice price&service, we have successfully expanded our market throughout Europe, North America, Latin America, the Middle East, and the Asia-Pacific region. Wish you will be our next long-term cooperation customer.
