Best VHB Double Sided Adhesive Tape Strong
* UV resistance
* Excellent adhesion
Product Details
Product Description

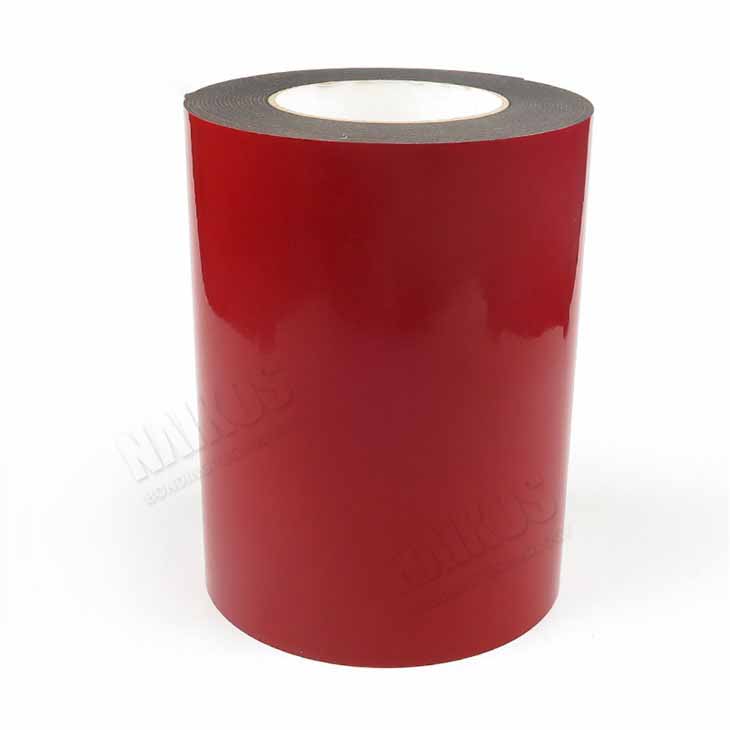

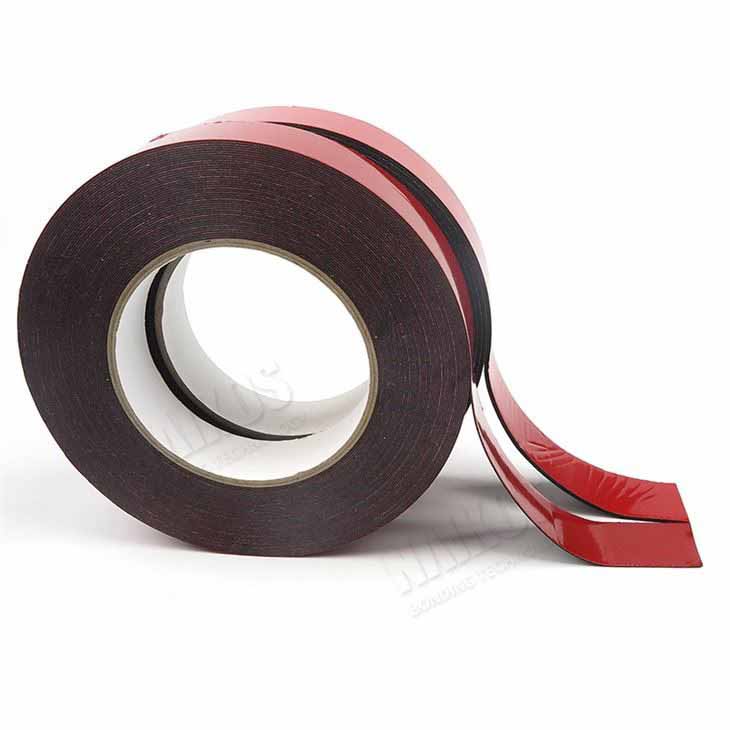

Best VHB double-sided adhesive tape strong consisting of acrylic foam backing, on a release film, coated with acrylic adhesive. Best VHB double-sided tape strong can replace rivets, welds, and screws. The fast and easy-to-use permanent bonding method provides high strength and long-term durability. Double adhesive tape strong offers design flexibility with its viscoelasticity and powerful ability to bond a variety of surfaces.
Features
* Waterproof, sound and shake-proof
* UV resistance
* VHB double-sided tape has strong excellent adhesion to metal, plastic, wood, leather, a paper which is hard to stick material
Construction
Red PE Film Pressure Sensitive Adhesive Acrylic Foam Pressure Sensitive Adhesive |  |
Physical Properties
Item | Unit | Value | Test Method |
Carrier | Acrylic Foam | ||
Adhesive | Acrylic | ||
Color | Clear | ||
Thickness | mm | 0.25±50μm | ASTM-1000 |
Tensile Strength | Gf/cm² | ≥7,500 | （T-Block） To Aluminum |
Peel Adhesion | GF/25mm | ≥3,500 | To Stainless Steel Room Temperature 180°Peel |
Holding Power
| Hr | >24 | To Stainless Steel 80℃ Temperature 1000g Static Load |
Dynamic Shear Strength To Stainless Steel Room Temperature after 20 minutes
To Stainless Steel Room Temperature after 72 hours | Gf/cm² |
≥4,500
≥6,000 |
ASTM D-1002 |
Temperature Tolerance Short Term 4 hours conditioning at indicated temperature with 100g static load Long Term The maximum temperature where tape supports 250g in static shear for 10, 000 minutes | ℃ |
≥160
≥100 |
Note: The above technical information and data should be considered representative or typical only and should not be used.
Application
* Dustproof and airproof glass curtain wall assembly
* Building operations such as heat insulation, connection, bundling, amendment, sealing
* Electronic, digital products assembly, and processing
* Automotive industry: nameplate, decoration bars, marks, an ideal substitution for 3M VHB tape
Shelf Life
Best VHB double-sided adhesive tape's strong shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.
Available Sizes
Custom Sizes: Please feel free to contact the NKS sales representative if you need customized sizes or die-cut parts.
If you find our double-sided foam adhesive tape, VHB foam tape interested, please fill the below blank space with your detailed requirements. China Heat Resistant Tape’s team would offer different solutions to you within 12 hours. Free samples are also available.
