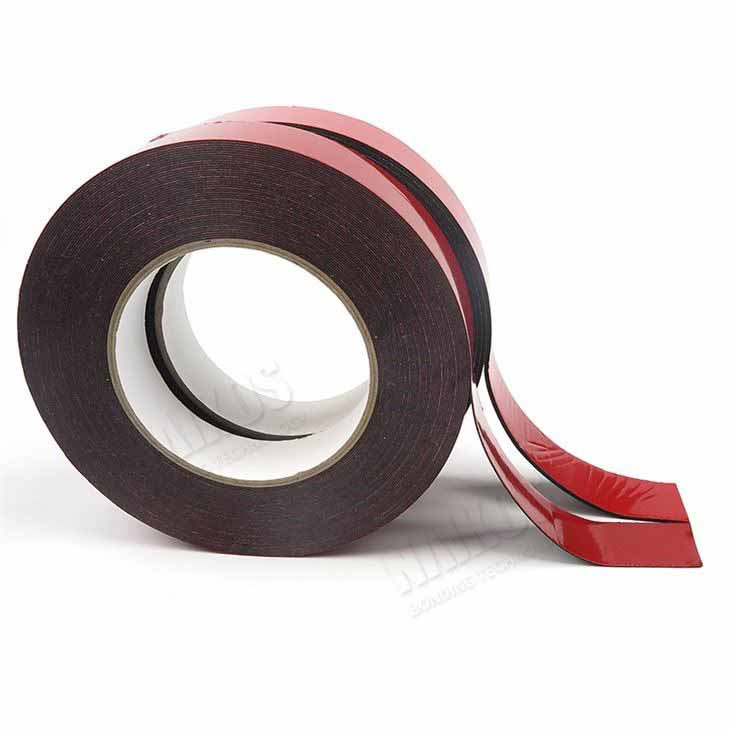

Best VHB double-sided adhesive tape strong consisting of acrylic foam backing, on a release film, coated with acrylic adhesive. Best VHB double-sided tape strong can replace rivets, welds, and screws. The fast and easy-to-use permanent bonding method provides high strength and long-term durability. Double adhesive tape strong offers design flexibility with its viscoelasticity and powerful ability to bond a variety of surfaces.
Features
* Waterproof, sound and shake-proof
* UV resistance
* VHB double-sided tape has strong excellent adhesion to metal, plastic, wood, leather, a paper which is hard to stick material
Construction
Red PE Film
Pressure Sensitive Adhesive
Acrylic Foam
Pressure Sensitive Adhesive

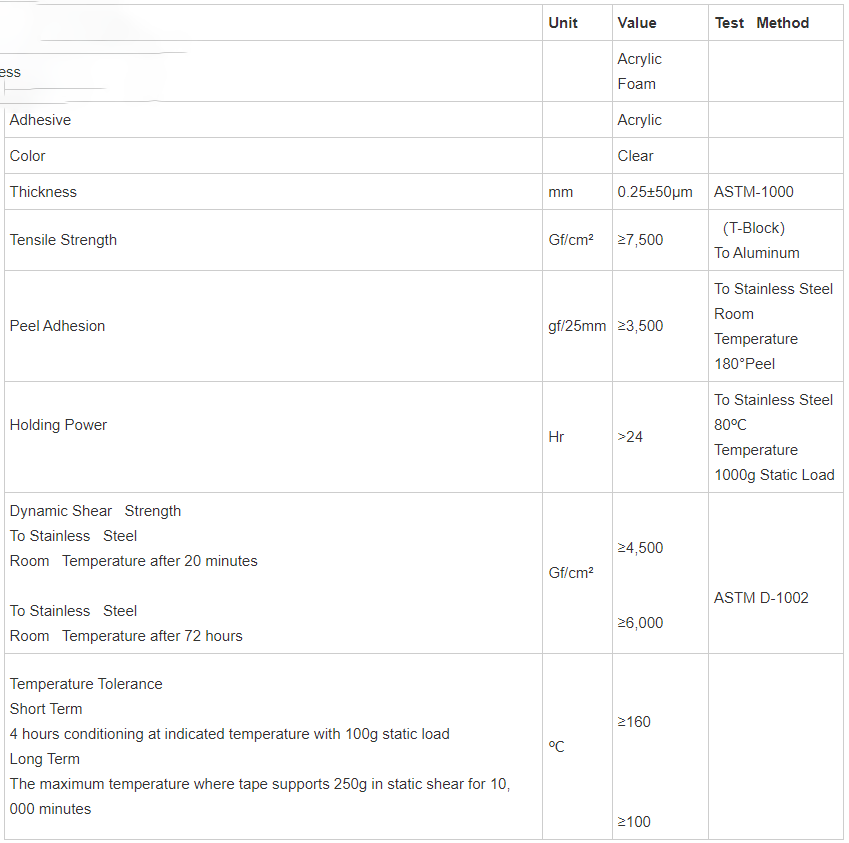

Physical Properties
Item
Unit
Value
Test Method
Carrier
Acrylic Foam
Adhesive
Acrylic
Color
Clear
Thickness
mm
0.25±50μm
ASTM-1000
Tensile Strength
Gf/cm²
≥7,500
（T-Block）
To Aluminum
Peel Adhesion
GF/25mm
≥3,500
To Stainless Steel
Room Temperature
180°Peel
Holding Power
Hr
>24
To Stainless Steel
80℃ Temperature
1000g Static Load
Dynamic Shear Strength
To Stainless Steel
Room Temperature after 20 minutes
To Stainless Steel
Room Temperature after 72 hours
Gf/cm²
≥4,500
≥6,000
ASTM D-1002
Temperature Tolerance
Short Term
4 hours conditioning at indicated temperature with 100g static load
Long Term
The maximum temperature where tape supports 250g in static shear for 10, 000 minutes
℃
≥160
≥100
Note: The above technical information and data should be considered representative or typical only and should not be used.
Application
* Dustproof and airproof glass curtain wall assembly
* Building operations such as heat insulation, connection, bundling, amendment, sealing
* Electronic, digital products assembly, and processing
* Automotive industry: nameplate, decoration bars, marks, an ideal substitution for 3M VHB tape
Shelf Life
Best VHB double-sided adhesive tape's strong shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.
Available Sizes
Custom Sizes: Please feel free to contact the NKS sales representative if you need customized sizes or die-cut parts.
If you find our double-sided foam adhesive tape, VHB foam tape interested, please fill the below blank space with your detailed requirements. China Heat Resistant Tape’s team would offer different solutions to you within 12 hours. Free samples are also available.
