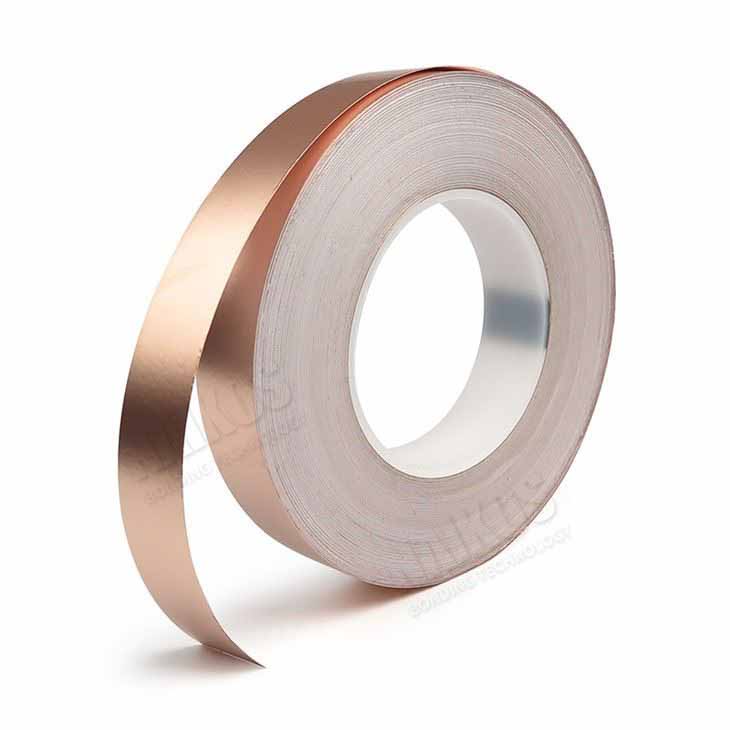

Tinned Copper Tape Conductive Adhesive For Soldering
Waterproof, cold, and heat resistance
Good elongation
Strong adhesion and easily peeled off
Product Details
Product Description
Tinned copper tape conductive adhesive for soldering is a kind of metal tape, mainly used in electromagnetic shielding, electrical signal shielding, and magnetic signal shielding. Electrical signal shielding mainly relies on the excellent conductivity of copper itself, while magnetic shielding requires copper foil tape. Surface conductive adhesive to achieve the effect of magnetic shielding, so it is widely used in mobile phones, notebook computers, and other electronic products.
Features
* Heat preservation, heat insulation
* Waterproof, cold, and heat resistance
* EMI shielding
* Good elongation
* Copper tape conductive adhesive Strong adhesion and easily peeled off
* Copper tape for soldering UV resistance, flame retardant
Construction
Copper Foil Conductive Adhesive White Release Paper |  |
Physical Properties
Item | Unit | Value | Note |
180°Peeling Strength | Kg/.inch | ≥0.8 | 25°,2kg/in cohered, 300mm/minute peeling |
Backing Material | % | 99.95 | Cu |
Backing Thickness | mm | 0.035±0.002 | |
Adhesive | Acrylic | ||
Adhesive Thickness | mm | 0.035+0.005 | |
Total Thickness | mm | 0.07 | |
Holding Power | minute | ≥1440 | 2kg/inch,to SUS304Plate |
Surface Impedance | Ω/inch | ≤0.05 | 25.4mm*25.4mm Mitsubishi LO |
Shielding Effectiveness | DB | 55~88 | 100MHz-1000MHz |
Heat Resistance | ℃ | -10 to 120 | |
Tensile Strength | kg/mm | 5 | |
Elongation | % | 6~7 | |
Adhesion | kg/25mm | 1.5 | |
Insulating Resistance | / | ||
ADHESION PROPERTY (Test Environment: 25℃,65RH Test Method: ASTM D1000) | |||
Adhesive | Acrylic Pressure Sensitive Adhesive | ||
Solvent | Ethyl Acetate | ||
Viscosity | (BROOKFIELD LVF NO.4.@25℃)9000+1000 CPS | ||
Solid Content | (150℃ 15Min)401% | ||
Conductive Content | Silver, Nickel, Cu | ||
Initial Tack | (J.DOW METHOD)1.5kg/25mm | ||
Long Term Adhesion | (PSTC-7)1440 Min/inch | ||
Heat Resistance | '-10℃-120℃ | ||
Conductivity | 0.03~0.06 onms/sg in(≦0.2ohmshsq inch at 1Kg) |
Note: The above technical information and data should be considered representative or typical only and should not be used.
Application
Tinned copper tape conductive adhesive for soldering offers a perfect solution for fast and quick solving of most problems in guitar crafts, gardening, soldering glasses, electrical repairs, use it to wrap cables, machine components, connections, and fans, extendable antenna, computer components, and more.
Available Sizes
Width: Maximum width 380mm. (Can be Customized)
Length: 50m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
