Heat Resistant Aluminum Foil Tape 3M425 Equivalent

* Point-to-point electrical contact
* EMI/RFI shielding
* Grounding and static charge draining

Send Inquiry

Product Description

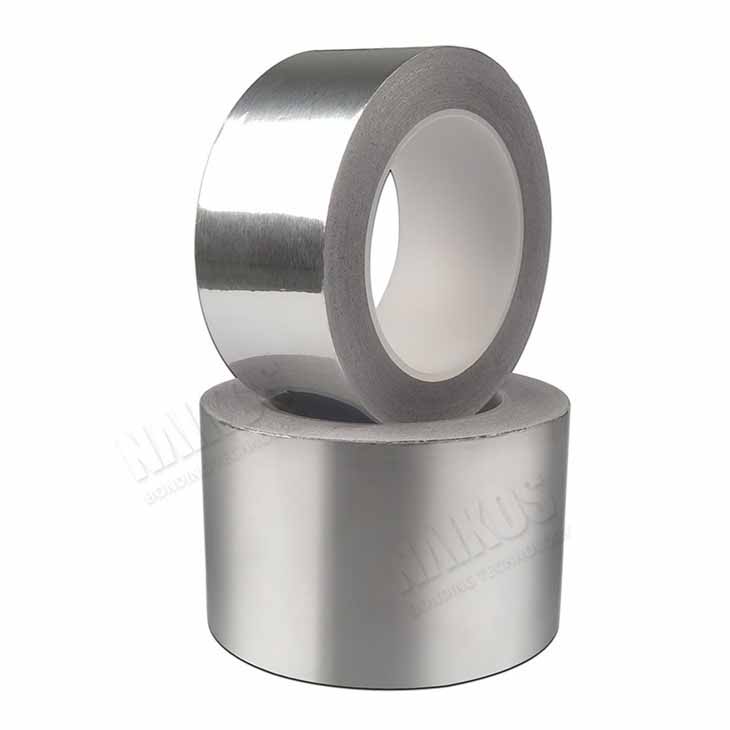

Heat resistant aluminum foil tape 3M425 equivalent is made with soft high-quality conductive adhesive-coated aluminum film.

Features

* Strong Adhesive

* Strong water-proof performance

* Good weather resistant

* Environment-friendly

* No import restriction

* Easy Handle

* High heat aluminum tape

* Heat resistant aluminum foil tape

* Aluminum heat tape

* Aluminum waterproofing tape

* Aluminum tape heat rating

Application

* Point-to-point electrical contact

* EMI/RFI shielding

* Grounding and static charge draining

Construction

Aluminum Foil

Conductive Acrylic Adhesive

Releasing Paper

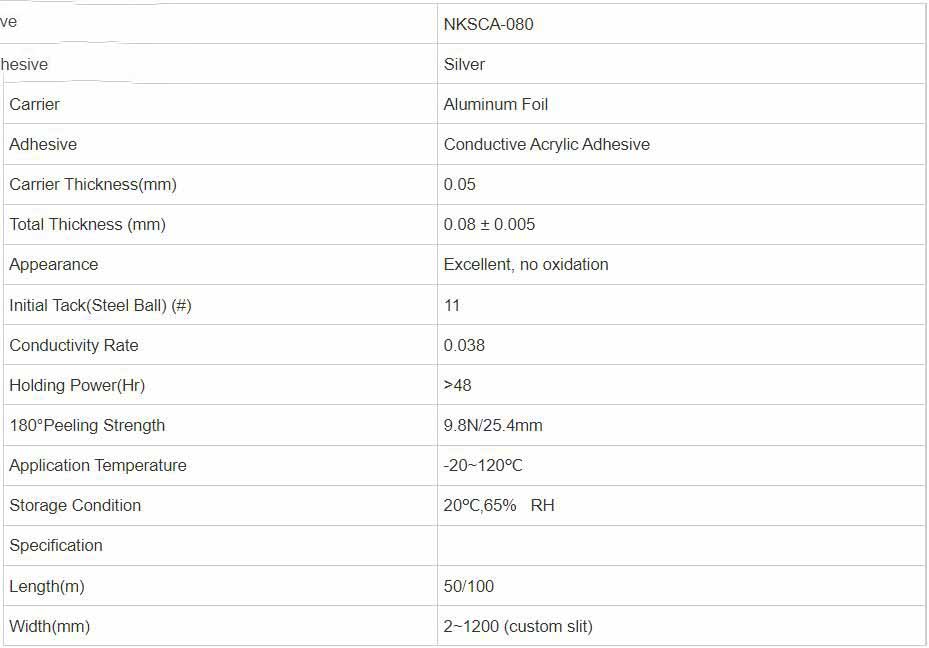

Physical Properties

Item	NKSCA-080
Color	Silver
Carrier	Aluminum Foil
Adhesive	Conductive Acrylic Adhesive
Carrier Thickness(mm)	0.05
Total Thickness (mm)	0.08 ± 0.005
Appearance	Excellent, no oxidation
Initial Tack(Steel Ball) (#)	11
Conductivity Rate	0.038
Holding Power(Hr)	>48
180°Peeling Strength	9.8N/25.4mm
Application Temperature	-20~120℃
Storage Condition	20℃,65% RH
Specification
Length(m)	50/100
Width(mm)	2~1200 (custom slit)

These values are measured values and not guaranteed values.

Shelf Life

Product shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.

Available Sizes

Width: Maximum width 1200mm. (Can be Customized)

Length: 50m (Can be customized).

Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.

Applications
